China Vmc 1160 Vertical Machining Center CNC Machine

Product Description

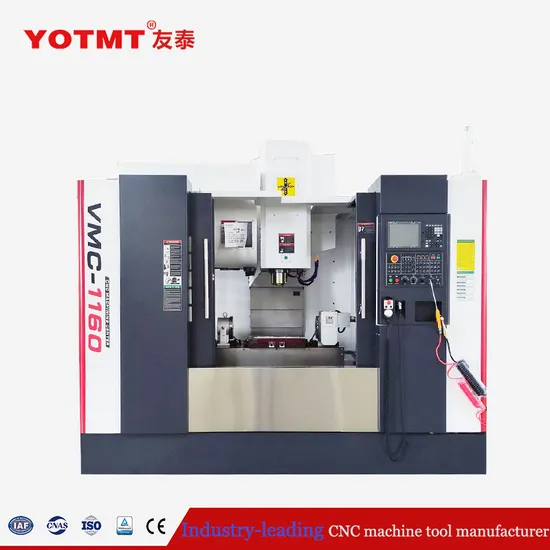

China VMC 1160 Vertical Machining Center Cnc Machine Product Display
Product Details
Large countertop and wide travel design
The spindle speed can reach 8000r/min, with high cutting efficiency; Can process various metal materials.
Install tailstock It can provide additional support and positioning functions. For long axis parts or workpieces that require special positioning, the use of tailstock can significantly improve machining accuracy and stability. At the same time, the tailstock can also be combined with other accessories such as tops, chucks, etc., to achieve more diversified processing methods.
Flexible system selection Can be equipped with Taiwan's new generation system, Japan's Yaskawa Electric, Japan's Mitsubishi system or Japan's FAUNC system, etc., to ensure that customers can choose the most suitable control system according to their own needs and habits.
Product Parameters

ITEM	UNIT	VMC650	VMC850	VMC1160
3-axis travel(x/Y/z)	mm	650/500/500	800/500/500	1300/700/700
Distance from spindle end face to table	mm	100-600	150-650	120-720
Distance from spindle center to column guideway	mm	470	580	650
Table T-slots (number - size x spacing)	mm	5-18x135	5-18x90	5-18x100
Spindle taper hole (model/installation size)	mm	BT40	BT40	BT40
Spindle speed	mm	8000	8000	8000
X/Y/Z axis rapid traverse speed	mm	36/36/36	24/24/24	24/24/24
3-axis positioning accuracy	mm	±0.01	±0.01	±0.01
3-axis repeat positioning accuracy	/	±0.005	±0.005	±0.005
Main motor power	Ra	5.5/7.5	7.5/11	11/15
Worktable size	mm	400X900	500X1000	600X1200
Optical machine net weight approx	mm	4200	5500	7000

Company Profile
Packaging & Shipping
FAQ
· Where is your company ? Can we come to your factory for inspection? Our company is located at 999 Hengyuan South Road, Shannan Street Economic Development Zone, Tengzhou City, Shandong Province. We warmly welcome your visit.
·What are the main products of your company and what are their advantages? We have independently developed industry equipment such as facing and centering machines, CNC double-sided lathes, CNC vertical lathes, dual spindle CNC vertical lathes, cylinder specific CNC lathes, vertical deep hole drilling machines, and double head horizontal machining centers. We have a comprehensive science and technology enterprise specializing in the design, manufacture, sales and service of these products.Our products have high precision, high efficiency, high stability and low energy consumption. We can also customize products according to customer needs.
· Which machine is suitable for my workpiece? Please tell me the specifications of your workpiece so that we can choose the most suitable model for you. If there are drawings, that would be the best, and we can provide better technical solutions.
· How do you ensure the quality of your products and what are your quality certifications? We have a strict quality control system from raw material procurement to finished product inspection. We have advanced testing equipment and professional technicians to ensure the accuracy and performance of our products. We have passed ISO9001 quality management system certification and CE certification. We provide 12 months warranty for our products from the date of shipment.and lifetime after-sales service. We also provide online technical support, spare parts supply, training and maintenance service for our customers. We have a professional after-sales team to solve any problems you may encounter.
· How do you deliver your products and what is your delivery time? We can deliver our products by sea, air or land according to your preference. We have a fast delivery time of 30-60 days depending on the order quantity and product type.
· What are your prices and payment terms? Our prices are competitive and reasonable in the market. T/T, L/C, D/P, D/A, etc.We can also provide you with trade assurance service to protect your order and payment.
