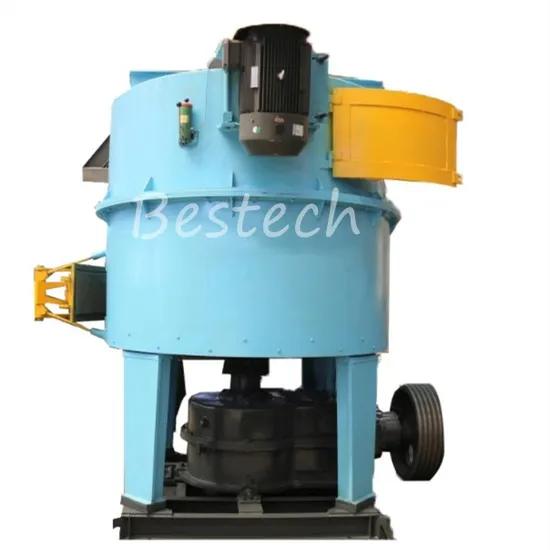

GS High Efficiency Rotor Sand Mixer Green Sand Molding Plant

Product Description

GS series high efficiency rotor type sand mixer/sand mixing machine1.Application of GS High efficiency rotor sand mixer :This machine is mainly used for mixing molding sand in foundry workshops, that is, single sand for machine modeling, dry film sand, self-hardening sand, face sand and back sand, and it can also be used for glass, ceramics and refractory. Materials and other industries to mix all kinds of powder and granular materials.2.Features of gs high efficiency Rotor Sand Mixer:(1)Double "s" scraper is optimally matched with high-speed rake rotor, with large amount of sand mixing, strong mixing ability and good sand performance.(2)New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper, etc., have improved the life of wearing parts.(3)soft-start, alloy steel gear, lubrication control machine, ensure smooth and reliable transmission system, and can start under load.(4)Symmetrically opened access doors for easy maintenance and cleaning(5)The latest type of side discharge door opens flexibly and works reliably, completely solving the problem of sand leakage at the bottom.
GS series high efficiency rotor sand mixer is designed and manufactured by referring to the advanced experience of sand mixer at home and abroad. It adopts double S type agitator and high speed rotor to rotate in the opposite direction, while the guide plate is stationary.Qingao bestech machinery specialized in foudry machine for many years and our company have mature technology,if any requirement please feel free to contact us.
GS high efficiency rotor sand mixer with Low speed scraper and medium speed rotor are best matched, the sand mixing capacity is large, the sand mixing ability is strong, the sand comprehensive performance is good.
GS series high efficiency rotor type sand mixer/sand mixing machine
GS series high efficiency rotor sand mixer is designed and manufactured by referring to the advanced experience of sand mixer at home and abroad. It adopts double S type agitator and high speed rotor to rotate in the opposite direction, while the guide plate is stationary.Qingao bestech machinery specialized in foudry machine for many years and our company have mature technology,if any requirement please feel free to contact us.
GS high efficiency rotor sand mixer with Low speed scraper and medium speed rotor are best matched, the sand mixing capacity is large, the sand mixing ability is strong, the sand comprehensive performance is good.
GS series high efficiency rotor type sand mixer/sand mixing machine

Model	GS20-55	GS20-75	GS22-75	GS22-90	GS25-110	GS25-132	GS29-200
Name	sand mixer	sand mixer	sand mixer	sand mixer	sand mixer	sand mixer	sand mixer
(mm) Disk diameter	2000	2000	2240	2240	2500	2500	2850
(t/h) Capacity	20~28	25~32	30~35	35~40	40~50	50~60	60~80
(KW)Main motor power	55	75	75	90	110	132	200
(KW)Rotor motor power	2×30	2×37	2×45	2×45	2×45	2×55	2×55
(r/min) Main shaft speed	31.72	31.72	27.32	27.32	27.3	27.32	25.4
(r/min)Rotor speed	1270	1270	975	975	950	950	850

FAQ:
Q: What is the capacity of this sand mixer?
A: 20-80 t/h

Q: Where does your company located?
A: Qingdao of China
