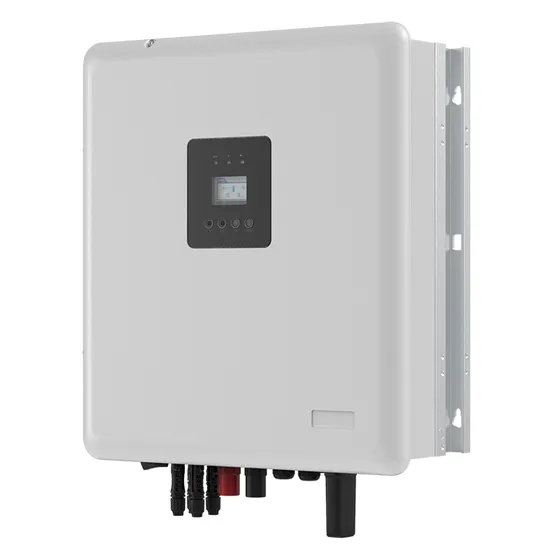

IP65 Design 15kw Hybrid Solar Inverter Support Stackable Battery Built-in BMS Communication
Basic Info.
Model NO.
FC-15KW1583
Type
DC/AC Inverters
Power Source
Solar Power
Transport Package
Carton
Specification
480*425*202 mm
Trademark
Neutral Packing
Origin
Zhejiang, China
Production Capacity
in Stock
Product Description
IP65 Design 15kw Hybrid Solar Inverter Support Stackable Battery Built-In BMS Communication| Product Model | FC-12KW1583 | |
| PV (DC Input) | Recommended max. PV input power | 22800W |
| Max. input voltage(Voc) | 1000V | |
| MPPT operating voltage range | 200-850V (@200V start up) | |
| Number of MPPT | 2 | |
| Max. number of input strings per MPPT | 1+2 | |
| Max. input current per MPPT | 15A+30A | |
| Max. short-circuit current per MPPT | 19.5/40A | |
| On-grid (Bidirection) | Rated output power | 15000W |
| Rated output current | 21.7A | |
| Rated grid voltage | 400V (L1,L2,L3,N,PE) 50/60Hz | |
| THDi | <3% | |
| Power factor | -0.8~+0.8 | |
| Battery parameters (Bidirection) | Battery type | SLA &LiFePO4 |
| Battery voltage range | 160-800Vdc | |
| Rated Battery Voltage | 400Vdc | |
| Max. charge/discharge current | 50A | |
| BMS communication mode | 485;CAN | |
| Back-up Output (AC Output) | Rated output power | 15000W |
| Rated output current | 21.7A | |
| Rated output voltage | 400V(L1,L2,L3,N,PE) 50/60Hz | |
| Surge power | 16500VA | |
| THDv (@ linear load) | <3% | |
| Switching time | <10ms | |
| Efficiency | Max. MPPT efficiency | 99.90% |
| Max. efficiency | 98.00% | |
| European efficiency | 97.50% | |
| Battery charging/discharging efficiency | 97.00% | |
| Protection | Protection | √DC switch √PV reverse connection protection √ Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection |
| Surge protection | PV: Type III, AC: Type III | |
| IP rating | IP65 | |
| General parameters | Operating temperature range | -25~60ºC |
| Relative humidity range | 10~90% | |
| Installation type | Wall mounted | |
| Cooling mode | Smart cooling | |
| Communication | Wi-Fi; R485; CAN; GPRS | |
| Display | LCD;APP | |
| Mechanical Specifications | Inverter dimensions (L*W*H) | 480*425*202 mm |
| Net weight | 27kg | |
| Carton dimensions (L*W*H) | 637*545*326 mm | |
| Gross weight | 31kg | |
| Warranty Period | 5 Years Standard (10 Years Optional) | |
Step 1, please tell us what model or custom size and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed details, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2. Do you have stocks?
Yes, we have stock for some models for quick delivery.
3. When will make delivery ?
If the model do not have stock, Order: 25-60 days after receipt of the full payment.
4. Payment
T/T, L/C, Paypal
6. Transportation
By Fedex, DHL, UPS, EMS, Air freight, Sea freight.5
