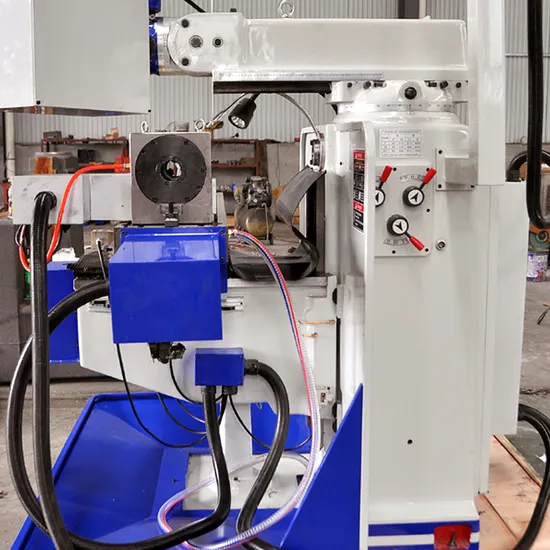

Xk6325 High Accuracy 3 Axis Vertical CNC Metal Turret Milling Machine for Metal
| US$15,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XK6325
Type
Meter Milling Machine
Object
Metal
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
1200x1500x2100mm
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595100
Production Capacity
50 PCS/Month
Product Description
CNC TURRET MILLING MACHINE FEATURES:
This milling machine equipped with economic CNC system is three coordinate NC milling machine possessing
a widely universal performance and attachments in a great varity may perform procedures, such as milling,
boring and drilling etc in addition it may be applied for processing various kinds of jobs without jigs such as
cams profile boards and jigs with complex figuration etc.
STANDARD ACCESSORIES:.
1.Draw bar
2.Tool box and tools
3. Working lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard
OPTIONAL ACCESSORIES:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
4.Collets and chuck
FEATURES:
| Item | Unit | XK6323A | XK6323B | XK6325 | XK6325A | XK6325B | XK6325C | XK6325D | XK6330 | XK6330A | ||
| Table size | mm | 230*1067 | 254*1270 | 305*1370 | ||||||||
| 230*1246 | 254*1370 | 305*1500 | ||||||||||
| T slots | 3*16 | |||||||||||
| Table loading | kg | 200 | 280 | 350 | ||||||||
| X axis (table longitudinal move) travel | mm | 550 | 750 | 800 | ||||||||
| 740 | 850 | 900 | ||||||||||
| Y axis (Table cross move) travel | mm | 300 | 400 | 380 | 380 | 400 | 400 | 360 | 360 | |||
| Z axis (Quill move) travel | mm | 127 | ||||||||||
| X/Y/Z axis rapid feed | mm/min | 5000 | ||||||||||
| X/Y/Z axis servo motor | kw | 1 | ||||||||||
| Knee vertical travel | mm | 380 | 400 | 410 | ||||||||
| Ram travel | mm | 315 | 465 | 500 | ||||||||
| Distance from spindle to table | mm | 0-380 | 0-400 | 0-410 | ||||||||
| Milling head | Spindle speed | Standard:16 steps | rpm | 50HZ:60-4500/60HZ:80-5440 | ||||||||
| Optional:Variable | 65-4200 | 60-3750 | ||||||||||
| Spindle taper | Standard:R8/Optional:ISO40 | ISO40 | ||||||||||
| Motor Power | HP | 3 | 5 | |||||||||
| Head rotating | Swiveling | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Tilting | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |||
| CNC | KND/HD500/GSK | |||||||||||
| Package | cm | 165*190*220 | 190*200*223 | 200*200*225 | ||||||||
| G.W. | kg | 1200 | 1500 | 1700 | 1900 | |||||||
