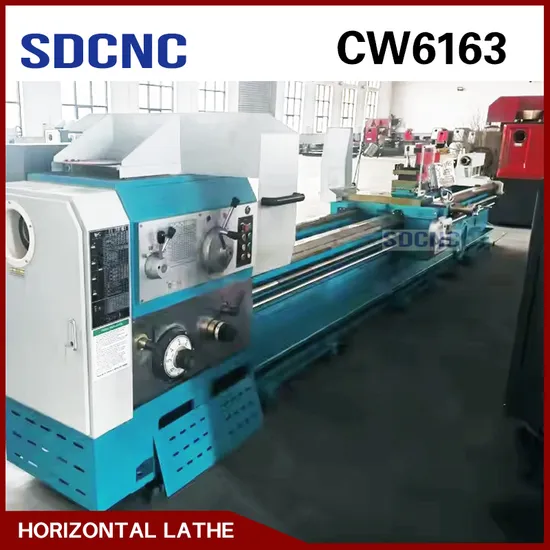

Heavy Duty Lathe Conventional Lathe Horizontal Metal Cutting Gap Bed Lathe Cw6163 Universal Tour Lathe Machine
| US$9,500.00-10,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6163
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Keyword
Heavy Duty Lathe Machine
Product Name
Manual Lathe Metal Lathe
Color
Customrized
Function
Metal Turning
Transport Package
Wood Packaging
Specification
3600*1600*1400
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
3600.00cm * 1600.00cm * 1400.00cm
Package Gross Weight
4200.000kg
Product Description
Product Description
Good for turning long workpieces
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Clutch in headstock makes the lathe more safe and reliable
Ballscrew Centralised for X and Z axis
Centralized Lubrication system.
Product Parameters
| Specification | CW6163 CW6263 | CW6180 CW6280 | CW61110 CW62110 | CW61125Q CW62125Q |
| Swing over bed | 630mm | 800mm | 1100mm | 1250mm |
| Swing over cross slide | 350mm | 480mm | 800mm | 920mm |
| Swing over gap | 800mm | 1000mm | 1300mm | 1450mm |
| Workpiece length | 1500 3000 5000 6000 8000 10000 12000 20000mm | |||
| Spindle bore | 105mm (optional 130mm) | |||
| Spindle speed and range | 7.5-1000 18kinds | 5.4-720 18kinds | 4.8-640 18kinds | |
| Cross feed step and range | 0.05-24.3 64kinds | |||
| Range 1:1 | 0.1-1.52 | |||
| Range 16:1 | 1.6-24.3 | |||
| Change gears feed range | 0.06-0.912 mm/r | 0.05-0.76 mm/r | ||
| Ratio of longitudianl feed to cross | 1/2 | |||
| Saddle rapid speed | 4000 mm/min | |||
| Leadscrew pitch | 12(metric) 1/2(inch) | |||
| Metric thread | 50 kinds 1-240 (other type thread 14 kinds) | |||
| Inch thread | 26 kinds 14-1 t.p.i | |||
| Module thread | 53 kinds 0.5-120 | |||
| Pitch thread | 24kinds 28-1DP | |||
| Lower tool post travel | 420mm | 500mm | ||
| Upper tool post travel | 200mm | |||
| Tailstock travel | 250mm | |||
| Tailstock taper | MT6 | |||
| Main motor | 11kw | |||
| Loading capacity | 2000 kgs | 2000(2500) kgs | 2500 kgs | 2500(6000) kgs |
| Bedway width | 550mm | 550(600)mm | 600mm | 600(755)mm |
Detailed Images
