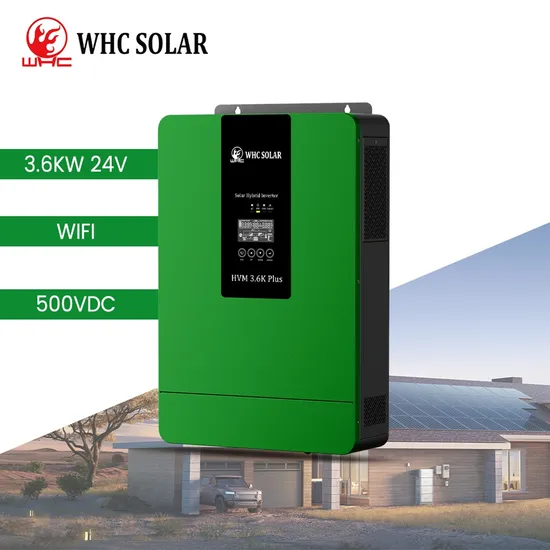

High Frequency 3000W Solar Inverter 3.6KW 5KW Hybrid Solar Inverter For Solar Home System
Basic Info.
Model NO.
HVM 3.6K Plus
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ROHS
Brand
WHC/WHC SOLAR
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Hybrid Solar Inverter
Rated Power
3600W
Input Voltage
DC48V
Output Waveform
Pure Sine Wave Solar Inverter
Max PV Charge Current
100A
MPPT Range Operating Voltage
40VDC~500VDC
Feature1
Only 0.3% defective rate
Features2
Waterproof, dustproof and insect-proof design
Display
Detachable LCD(optional)
Application
Solar System/Energy Storage System/UPS System
Transport Package
Carton Case
Specification
3.6KW
Trademark
WHC/WHC SOLAR
Origin
China, Guangdong
Production Capacity
10000 Per/Months
Packaging & Delivery
Package Size
50.00cm * 35.00cm * 20.00cm
Package Gross Weight
6.400kg
Product Description
Product DescriptionPRODUCT FEATURES:
1. Pure sine wave solar inverter
2. High PV input voltage range
3. Built-in MPPT solar controller
4. Optimize battery performance, extend lifecycle
5. Inverter running without battery
6. WiFi/GPRS remote monitoring
7. RS485 communication for BMS(Optional)
8. Self-consumption and Feed-in to the grid(Optional).
9. Detachable LCD(Optional)
Product Parameters
| Model | HVM 3.6K PLUS | HVM 5K PLUS |
| AC Input | ||
| Voltage Range (VAC) | 90~280±3(normal mode);170~280±3(UPS mode) | |
| Frequency (Hz) | 50/60(Auto Adaptive) | |
| AC Output | ||
| Rated Power (KW) | 3.6 | 5 |
| Surge Power (KVA) | 5.7 | 10 |
| Voltage (VAC) | 220V±10% | |
| Power Factor(PF) | 1 | |
| Frequency | 50/60Hz±0.1% | |
| Switch Time(ms) | 10(normal mode)/10 (UPS mode) | |
| Wave Form | Pure Sine Wave | |
| Efficiency | 93% | |
| Parallel Quantity | NA | 9 |
| Charger(PV /AC) | ||
| Solar Charger Type | MPPT | |
| Max PV input Current /Input Power | 18A/5000W | 18A/6000W |
| MPPT Range Operating Voltage (VDC) | 40~500 | |
| Max PV Open Circuit Voltage (VDC) | 500 | |
| Max PV Charge Current (A) | 100 | |
| Max AC Charge Current(A) | 100 | |
| Max.Charge Current(PV+AC)(A) | 100 | |
| Battery | ||
| Rated Voltage(VDC) | 24 | 48 |
| Floating Charge Voltage (VDC) | 27 | 54 |
| Overcharge Protection (VDC) | 30.5 | 61 |
| Battery Type | Lithium and Lead-acid | |
| Interface | ||
| HMI | LCD | |
| Interface | RS485 /RS232 USB /DryContact | |
| Monitoring | WiFi (Optional) | |
| Net Weight (kg) | 6.4 | 9.5 |
| Dimensions (W*H*D) | 490*306*115mm(without bracket) | 510*306*115mm(without bracket) |
| Max.Operating Altitude | 4000m (Derating above 1000m) | |
