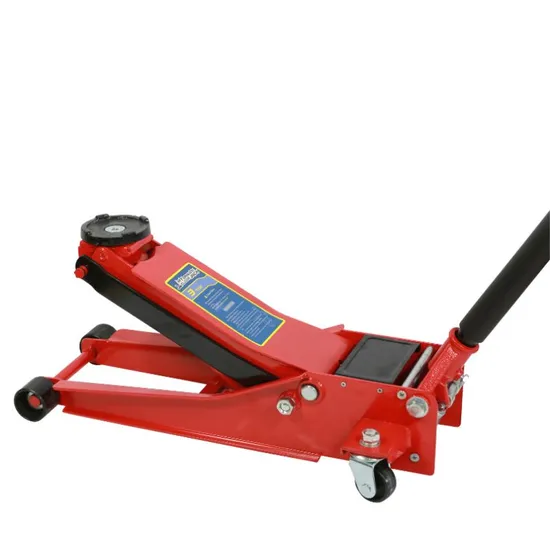

3 Ton Low Profile Floor Jack TUV GS/CE Certification Car Repair

Product Description

Model	Lifting Wt	Min.H	Lifting.H	Max.H	N.W	Package	Measurement	Qty/Ctn	G.W	20' Container
	(ton)	(mm)	(mm)	(mm)	(kg)		(cm)	(pcs)	(kg)	(pcs)
STFL330L	2.5/3	75	425	500	31	Color Box	83x39x19.5	1	32	480
STFL332L	3.5/5	90	460	550	48	Color Box	86x46x21	1	51	330

Notes:
1.When the vehicle is jacked up,do not open the engine,because the engine vibrates and the weels of cars turned easy to cause the jack slide down.
2.Before operating the jack, find a fixed position.
Operating Instruction
1.Before operating,estimate the weight of the load,Do not overload the jack beyond its rated load.
2.Select point of action according to the gravitational center place the jack on the hard ground if necessary,place a hard plank under the jack so as to avoid tottering or falling during operation.
3.Before operating the jacks,first,insert the notched end of the handle.into the release valve.Turn the operating handle clock wise until release value is closed.Do not over tighten the value.
4.Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised.the ram will stop rising when the required height is reached.
5.Lower the ram by turning the release valve.Counterclockwise with the notched end slacken it slowly when a load is applied,or accidents can occur.
6.When more than one jack is used at the same time it is important to operate the different jacks at an equal speed with equal load.Otherwise,there is danger of falling the entire fixture.
7.Violent shocks must be avoided during the operation.
8.User must operate the jack correctly according to operating instruction:If the jacks has some quality problems,it can not be operated.

Jiaxing Shuntian Machinery Co., Ltd. is a special enterprise integrating research, design, development and manufacture of Hydraulic jack with various specifications together, and has an-nual production capacity of 2.3 million units. It has abundant technical force and perfect equipment for PRO-duction andmonitoring. Its productio-n's sale bases itself on the markets at home and reaches far to various places in the world. The company is located at beautiful Jiaxing City, and between hangzhou City, a scenic spot for tourists, and Shanghai Municipality; There are running the Shanghai-Hangzh-ou-Ningbo Highway and the Jiaxing-Suzhou Highway with exit and entrance there, being convenient in transportation. Holding commencial talks for cooperation with the customers at home are welcome.
