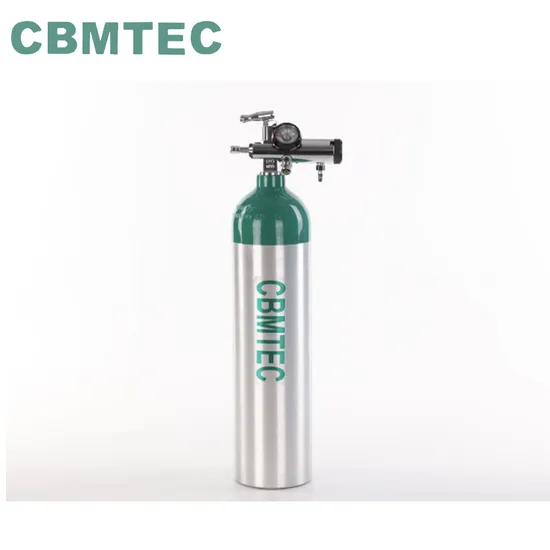

1.4L Ambulance Breathing Oxygen Cylinders
| Negotiable | 50 Pieces (MOQ) |
Basic Info.
Material
Alloy
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Water Capacity
1.4L
Transport Package
Standard Export Packing
Specification
GB/T11640 ISO7866 EN1975
Trademark
CBMTEC
Origin
Ningbo, China
HS Code
761300100
Production Capacity
20, 000 PCS/Month
Product Description
Product Specifications| Medical Aluminum Oxygen Cylinder -1).Water Capacity: 1.4L; -2).Normal Outer Dia.:89mm; -3).Height: 345mm; -4).Design Wall Tickness: 4.5mm; -5).Weight: 1.4kg; -6).Normal Working Pressure: 150bar; -7).Water Testing Pressure: 225/250 bar; |
For Other Specifications
| No | Specification | Outer Diameter | Water Volume | Length | Weight | Working pressure |
| 1 | LW-60-0.5-20-H | 60mm | 0.5L | 285mm | 0.59kg | 200bar |
| 2 | LW-75-0.7-15-H | 75mm | 0.7L | 295mm | 0.85kg | 150bar |
| 3 | LW-82-0.7-15-H | 82mm | 0.7L | 235mm | 0.9kg | 150bar |
| 4 | LW-89-1.0-15-H | 89mm | 1.0L | 269mm | 1.2kg | 150bar |
| 5 | LW-89-1.4-15-H | 89mm | 1.4L | 345mm | 1.4kg | 150bar |
| 6 | LW-108-1.0-15-H | 108mm | 1.0L | 210mm | 1.3kg | 150bar |
| 7 | LW-108-1.4-15-H | 108mm | 1.4L | 264mm | 1.6kg | 150bar |
| 8 | LW-108-2.0-15-H | 108mm | 2.0L | 346mm | 2.1kg | 150bar |
| 9 | LW-108-2.5-15-H | 108mm | 2.5L | 413mm | 2.5kg | 150bar |
| 10 | LW-120-2.0-15-H | 120mm | 2.0L | 320mm | 2.7kg | 150bar |
| 11 | LW-120-2.5-15-H | 120mm | 2.5L | 369mm | 3.0kg | 150bar |
| 12 | LW-120-2.8-15-H | 120mm | 2.8L | 398mm | 3.2kg | 150bar |
| 13 | LW-120-3.2-15-H | 120mm | 3.2L | 437mm | 3.5kg | 150bar |
| 14 | LW-140-4.0-15-H | 140mm | 4.0L | 420mm | 4.2kg | 150bar |
| 15 | LW-140-5.0-15-H | 140mm | 5.0L | 500mm | 4.9kg | 150bar |
| 16 | LW140-6.0-15-H | 140mm | 6.0L | 580mm | 5.6kg | 150bar |
| 17 | LW140-8.0-15-H | 140mm | 8.0L | 741mm | 7.2kg | 150bar |
| 18 | LW140-5.0-20-H | 140mm | 5.0L | 525mm | 6.3kg | 200bar |
| 19 | LW140-6.0-20-H | 140mm | 6.0L | 652mm | 7.98kg | 200bar |
| 20 | LW-159-10.0-15-H | 159mm | 10.0L | 730mm | 8.8kg | 150bar |
| 21 | LW-184-9.0-20-H | 184mm | 9.0L | 575mm | 12.0kg | 200bar |
| 22 | LW-184-10-20-H | 184mm | 10.0L | 620mm | 12.9kg | 200bar |
| 23 | LW-184-11-20-H | 184mm | 11.0L | 665mm | 14.2kg | 200bar |
| 24 | LW-184-12-20-H | 184mm | 12.0L | 710mm | 15.4kg | 200bar |
| 25 | LW-203-12-15-H | 203mm | 12.0L | 567mm | 11.8kg | 150bar |
| 26 | LW-203-20-15-H | 203mm | 20.0L | 873mm | 17kg | 150bar |
| 27 | LW-203-21.3-15-H | 203mm | 21.3L | 962mm | 19.9kg | 150bar |
| 28 | LW-204-12-20-H | 204mm | 12.0L | 610mm | 16.5kg | 200bar |
| 29 | LW-204-15-20-H | 204mm | 15.0L | 735mm | 18.7kg | 200bar |
| 30 | LW-204-20-20-H | 204mm | 20.0L | 940mm | 23.4kg | 200bar |
| 31 | LW-232-29.5-15-H | 232mm | 29.5L | 994mm | 30.2kg | 150bar |
| 32 | LW-232-30.0-15-H | 232mm | 30.0L | 1010mm | 30.5kg | 150bar |
| 33 | LW-232-33.4-15-H | 232mm | 33.4L | 1126mm | 31.3kg | 150bar |
| 34 | LW-232-40.0-15-H | 232mm | 40.0L | 1340mm | 36.5kg | 150bar |
| 35 | LW-232-20.0-20-H | 232mm | 20.0L | 750mm | 26.9kg | 200bar |
| 36 | LW-232-26.0-20-H | 232mm | 26.0L | 921mm | 30.7kg | 200bar |
| 37 | LW-232-30.0-20-H | 232mm | 30.0L | 1076mm | 36.4kg | 200bar |
| 38 | LW-232-31.5-20-H | 232mm | 31.5L | 1096mm | 38kg | 200bar |
| 39 | LW-232-40.0-20-H | 232mm | 40.0L | 1365mm | 44.1kg | 200bar |
| 40 | LW-250-40.0-15-H | 250mm | 40.0L | 1150mm | 36.7kg | 150bar |
| 41 | LW-250-46.4-15-H | 250mm | 46.4L | 1305mm | 38.7kg | 150bar |
| 42 | LW-250-47.5-15-H | 250mm | 47.5L | 1340mm | 42.0kg | 150bar |
| 43 | LW-250-50.0-15-H | 250mm | 50.0L | 1590mm | 39kg | 200bar |
| 44 | LW-250-40.0-20-H | 250mm | 40.0L | 1227mm | 46.3kg | 200bar |
| 45 | LW-250-50.0-20-H | 250mm | 50.0L | 1500mm | 56kg | 200bar |
Product Show
Product Process
Packing&Shipping
Exhibition
About Us
| We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 110L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries. |
Advantages
| -1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting. |
