Hydraulic Rotary Cylinder for CNC Lathe Machine

Product Description

Product Description

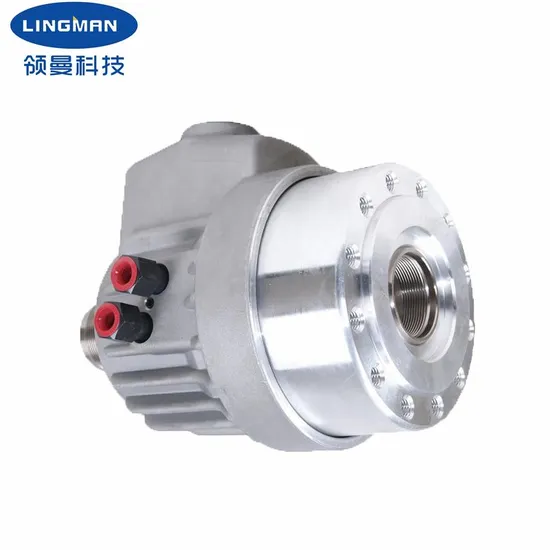

Hollow Type TH Series Hydraulic Rotary Cylinder for CNC Lathe
This product is lightweight, large through-hole type rotary cylinder, with through-hole through, which can process long shaft parts. The built-in self-locking mechanism of the check valve can prevent the damage of the piping and the loss of the pressure source, and ensure the stable clamping of the workpiece. The cylinder is safe and reliable, high speed, long life, the internal parts are all imported originals. And this kind of product can be customized according to customers' different requirements.


Detailed Photos

Product Parameters

Product Parameter
Product model	TH-536
Push Side	69.8cm2
Pull Side	67.5cm2
Stroke	15mm
Max. number of revolutions	8000r.p.m
Max. working pressure	4.0 Mpa
GD2	0.05 KG.M2
Net weight	8.5Kg

Specifications	A	B	C	D	E	F	H	J
TH-536	105	150	135	115	100	48	47.5	125.5

Company Profile
Lingman Machinery Technology (ChangZhou)Co;Ltd
Located in Changzhou CIty, Jiangsu Province, Lingman Machinery Technology(Changzhou) Co.,Ltd. . is an enterprise focusing on R&D, production and sales of various pneumatic chucks, electric chucks. hydraulic chucks and other power chucks. With production
equipment and innovative design capabilities, it can provide users with satisfactory service. It also can design and produce various types of machine tools, non-standard equipment, and special power fixtures and chucks for laser pipe cutting machines according to different users' needs. The company is based on technological innovation to provide every customer with suitable products, caring services, continuous technology research and development, fully implement quality management, continue to improve the service system, and look forward to winning new and old customers favor.
Looking forward to be your Chinese partner in chuck business!


Our Advantages

a. Full stroke designed laser chuck

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available e. 1 Solid or hollow e. 2 Comb-type or mortise-groove type claws
