Smart CO2/Temperature/Humidity Detector for Air Quality with Data Log Recording

Product Description

Product Description

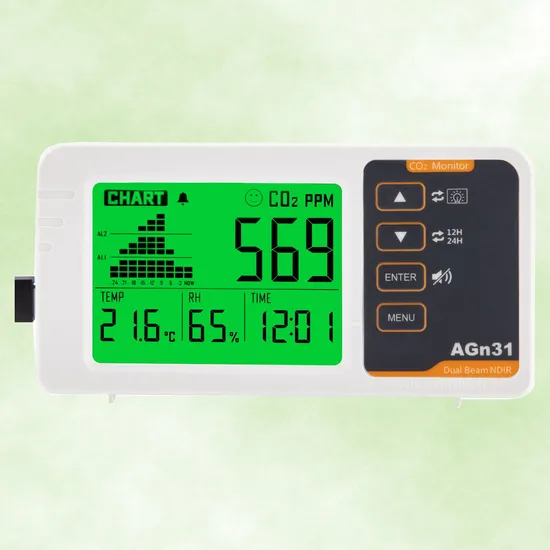

AGn31 is a 4 in 1 CO2 monitor with Dual Beam NDIR technology and large LCD, which clearly displays the CO2, temp, RH and real-time clock. To save power and extend battery life, the AK -n31 darkens the LCD backlight automatically from 22:00pm to 6:00 am. It is ideal for monitor air quality inside buildings like residential, library, offices, schools, shopping mall and HVAC systems.
Basic Info.

Model NO.	AGn31	RTC function	Keep run 7days after power off
Trademark	OEM/ODM	Power Source	USB Type-C
Sensor Type	Dual-Beam NDIR	Origin	China KunShan
CO2 Range	0~5000ppm	HS Code	9027100090
Temperature Range	0~50ºC(32°F to 122°F)	Production Capacity	80000 Pieces/Year
RH Range	0-100%	Transport Package	Carton
Battery	External	Package Type	1 pcs/Color Box
Single Package Size	120*61.5*29mm (4.7*2.4*1.1inch)	Weight	103g ( 3.6oz) Device only

Feature:
Ø Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability.
Ø "CHART" with 2 Alarm indicate the status of CO2 records up to 24 hours.
Ø The Large LCD clearly displays the CO2, temperature, relative humidity and real-time clock
Ø "ECO" saving power function darken the LCD backlight (22:00pm to 6:00am).
Ø 3-color backlight (green / yellow / red) gradually changes color with CO2 concentration.
Ø 7-day RTC hold on when power off.
Ø 7-color backlight for options: white - turquoise - blue - purple - green - yellow - red.

Operating Instructions
LCD Display:

History Chart:
"CHART" with 2 Alarm indicate the status of CO2 records up to 24 hours, every three hours, the detector calculates a set of log data. The chart is used to display the history of CO2 concentration.as shown below:
4 Work mode:
"Auto" auto backlight is the default mode. Press "Up key" to quickly and easily change the current backlight mode, Auto à AL à On à OFF. After selecting the mode, it is the confirmation mode. You do not need to press any key to confirm it.
Back Light:
The AGn31 has 7 colors of background lights. Users can set the color of the background light according to their own preferences. At the same time, the backlight of AGn31 has 4 working mode, Auto-Alarm-On-OFF. When set to auto working mode, AGN31 will automatically change the backlight color according to the CO2 concentration.

Back Light Mode	Backlight	Buzzer
Auto	The LCD screen backlight color changes with carbon dioxide concentration. <800ppm: green; 800ppm~1,200ppm: yellow; >1200ppm: red. The red threshold can be modified in AL	Buzzer beeps every second when AL is exceeded. Until it is turned off (with mute key) Default is OFF
AL	There is no backlight in normal state, but when the carbon dioxide concentration exceeds the alarm value, the LCD screen backlight is red. The AL alarm value is preset to 1,000ppm, please adjust the alarm value according to the alarm value setting method.	Buzzer beeps every second when AL is exceeded. Until it is turned off (with mute key) Default is OFF
ON	The backlight is always on. Only backlight function, without any prompt function. Backlight color depends on selected color, see COLOR setting function.	Buzzer beeps every second when AL is exceeded. Until it is turned off (with mute key) Default is OFF
OFF	The backlight OFF, no back light function.	Buzzer beeps every second when AL is exceeded. Until it is turned off (with mute key) Default is OFF

Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	10 sec
Temp Measurement
Operating Temperature	32°F to 122°F (0°C -50°C)
Display Resolution	0.1°F (0.1°C)
Accuracy	±1°F (±0.5°C)
Response Time	<20min (63%)
RH Measurement
Range	5-95%
Accuracy	±5%
Resolution	1% on Main Reading, 0.1% on Max Min Reading
Power Requirements	160mA Peak, 15mA average at 5.0V
Dimension	120*61.5*29mm (4.7*2.4*1.1inch)
Weight	103g ( 3.6oz) Device only, AC Adapter not included
