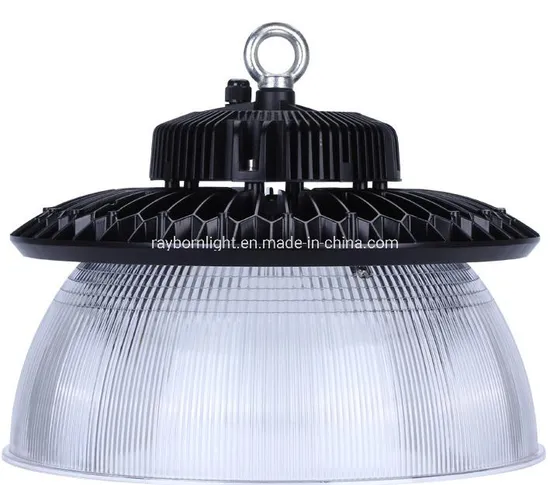

Industrial Factory 100W 150W 200W High Bay LED Light with Transparent Stripe Cover

Product Description

Industrial factory 100w 150w 200w high bay led light with transparent stripe cover
Product Specifications :
LED High Bay Light/Industrial High Bay LED Lighting (30-500W)

200W UFO LED HIGH BAY light
Item No.:		RB-HB-200WU2
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		SMD3030 Chip
Power Factor:		>0.98
Power Efficiency:		>92%
Luminous Efficiency:		135LM/W
LED Power		200W
LED QTY:		252pcs 3030SMD
LED Working Voltage:		DC 42~48V
System Consumption:		205W
LIGHT Luminous Flux	Warm White	22070LM
	Pure White	23700LM
	Cool White	24300LM
Viewing Angle:		120/90/60 degree
Center Luminance	Height 5M	383LUX
	Height 10M	96LUX
	Height 15M	43LUX
Illuminance Area	Height 5M	Dia.1606CM points visible
	Height 10M	Dia.3213CM points visible
	Height 15M	Dia.4819CM points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	4000K~5500K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-40ºC~50ºC
IP Grade:		IP65
Working Life-span:		50000 H
Power Line:		1.0 mm three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Certificate		CE/SAA/ROHS
Size:		Ф388*H196
Net Weight:		5.5KG
Packaging		47*47*21cm

UFO LED High bay Lamp Features:
1. Newly design LED High Bay light ,100W/150W/200W/250W all are avaliable ;
2. Samsung ,Lumileds ,OSRAM ,Epistar led chip all are available ;
3. The luminous efficacy of whole lamp can reach 130-160LM/W with high brightness ;
4. LED High bay light are adopted Metal plate pure aluminum heat sink and heat conduction by copper cylinder ;
5. Difference beam angle 60/90/120/ degree distribution design as optional ;
6. Reflective rate >90%, CRI is more high,and Lighting is more comfortable ;
7. 304 Stainless steel,high quality, easy install,good rust prevention and durable ;
8. The welding spot highest temperature of LED Chip is 70ºC, the highest temperature of heat sink is 55 ºC,with excellent heat dissipation capacity and low Light decay ,greatly improves the life of lamps ;
9. Installation ways :rings with chains or other installation accessories ;
10. Waterproof IP65 design ,widely use for indoor and outdoor ,suitable for warehouse ,industrial ,cold storage ,steel workshop etc .
UFO LED High bay light Competitive Advantage:
1. CE & RoHS & TUV&SAA approved, Quality Guaranteed
2. Imported original SMD3030 chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan
UFO LED High bay light Dimension:
UFO LED High bay light Application and installation :
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum, stadium and gymnasium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
UFO LED High bay light more than 24hours aging test :
All LED lights will be over 24 hours aging tested, inspection department
will test 100% products including light up test , power wattage test ,
highVoltage test , waterproof test , ground connection test and so on,
defective rate is controlled less than 0.1%. Quality is ensured, you can
be assured.
Shipment and Packaging :
Our individual package maximize protecting LED high bay lights from transfer damage in transit.
1. Label on backside of each led high bay lights and your required label is available.
2. One piece led high bay Light per carton.
3. This is our regular packing of led high bay lamps,if you need,we can also custom color packing and put your logo on it.
Company Information:
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
Payment terms :
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities
After-sales service :
1. We offer 5 years warranty base on different price and products.
2. Any quality issue, we will replace for free within guarantee period.
3. Any accessories, we always support our customers.
FAQ
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many UFO Led High bay Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
8. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
9: How to deal with the faulty ?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will send out new replacement to you immediately for you to solve the problem.
