Wc67K Series (CNC) Hydraulic Press Brake

Product Description

Product Brief Introduction
The WC67K Series(CNC) Hydraulic Press Brake has the function of prebending the end of the plate, and can load the metal plate at one time, and complete the prebending of the end of the plate and the rolling of the workpiece without turning. The machine has high technical level, full function, high precision and easy operation. Is energy, transportation, petroleum, chemical, boiler, shipbuilding, hydropower, metal structure and other industries coil round, arc and conical workpiece ideal model.
Features
1. Equipped with Delem (can also be equipped with Swiss Cybelec), or Estun company dedicated CNC systems;
2. The servo motors are imported, the slider stroke ( Y ), back gauge ( X , R , Z ) and main pressure all controlledby by the computer;
3. The back gauge adopts ball screw and linear guide, the repeat positioning accuracy is high.
Technical Specifications

Specifications	Nominal force	Length Of Worktable	Distance between columns	Sider stroke	Throat Depth	Main Motor
	kN	mm	mm	mm	mm	KW
WC67K/Y-40t/2500	400	2500	2050	100	250	4
WC67K/Y-63t/2500	630	2500	2050	120	300	5.5
WC67K/Y-63t/3200	630	3200	2600	120	300	5.5
WC67K/Y-100t/2500	1000	2500	2050	140	350	7.5
WC67KY-100t/3200	1000	3200	2600	140	350	7.5
WC67K/Y-100t/4000	1000	4000	3200	140	350	7.5
WC67K/Y-125t/2500	1250	2500	2050	140	350	7.5
WC67KY-125t/3200	1250	3200	2600	140	350	7.5
WC67K/Y-125V/4000	1250	4000	3200	140	350	7.5
WC67K/Y-160t/2500	1600	2500	2050	200	400	11
WC67KY-160t/3200	1600	3200	2600	200	400	11
WC67K/Y-160t/4000	1600	4000	3200	200	400	11
WC67K/Y-160t/6000	1600	6000	5000	200	400	11
WC67KY-200t/3200	2000	3200	2600	200	450	15
WC67K/Y-200t/4000	2000	4000	3200	200	450	15
WC67K/Y-200t/5000	2000	5000	4200	200	450	15
WC67K/Y-200t/6000	2000	6000	5000	200	450	15
WC67K/Y-250t/3200	2500	3200	2600	250	450	18.5
WC67K/Y-250t/4000	2500	4000	3200	250	450	18.5
WC67K/Y-250t/5000	2500	5000	4200	250	450	18.5
WC67K/Y-250t/6000	2500	6000	5000	250	450	18.5
WC67KYY-300t/3200	3000	3200	2600	250	500	22
WC67K/Y-300t/4000	3000	4000	3200	250	500	22
WC67K/Y-300t/5000	3000	5000	4200	250	500	22
WC67KY-300t/6000	3000	6000	5000	250	500	22
WC67K/Y-400t/4000	4000	4000	3200	320	500	30
WC67K/Y-400t/5000	4000	5000	4200	320	500	30
WC67KY-400t/6000	4000	6000	5000	320	500	30
WC67K/Y-500V/6000	5000	6000	5000	320	600	37
WC67K/Y-600t/7000	6000	7000	6000	320	700	45
WC67KY-700t/7000	7000	7000	6000	320	700	45
WC67K/Y-800t/6000	8000	6000	5000	400	700	55
WC67KY-100t/6000	10000	6000	5000	500	700	75

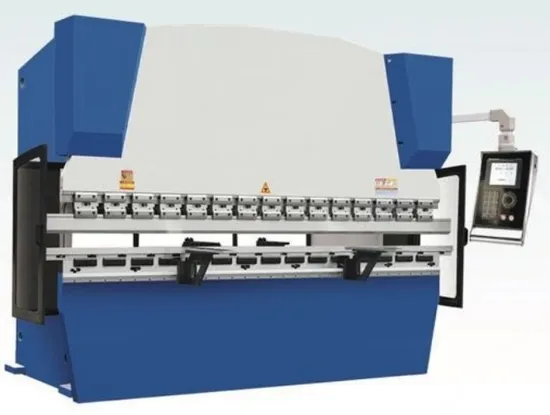

Product Picture
