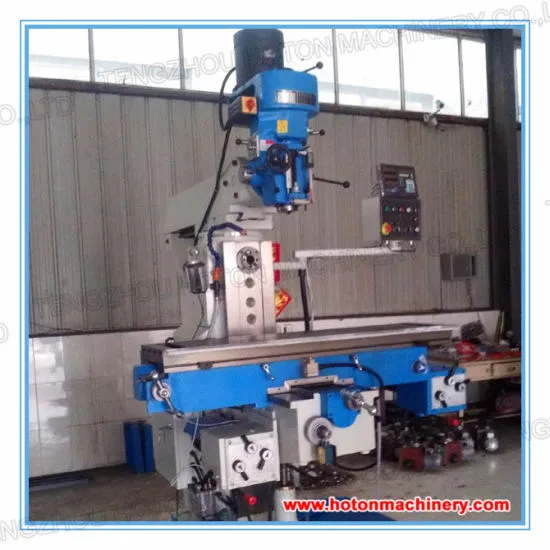

Universal Turret Drilling and Milling Machine X6332C
| US$3,300.00-3,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6332C
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1250X320mm
Long Travel(mm)
800mm
Cross Travel(mm)
300mm
Vertical Travel(mm)
350mm
Spindle Taper
ISO40
Transport Package
Plywood Case
Specification
1900kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
TURRET MILLING MACHINE FEATURE:
1.TAIWAN milling head
2.Rectangular and dovetail guideway can available
3.Worktable travel of X-axis up to 800mm
4.Saddle becomes bigger
SPECIFICATIONS
| SPECIFICATIONS | X6332C |
| Table size mm | 1250X320 |
| Table travel | 800X300X350MM |
| Number/Width/Distance of T-slot | 3/14/70 |
| Distance between spindle nose and table surface | 150-500MM |
| Distance between spindle axis and column surface | 150-550 MM |
| Spindle travel | 150MM |
| Spindle taper(V/H) | 7:24 ISO40 |
| Spindle speed range RPM | 63-5817(V)60-1350(H) |
| Spindle motor power | 3.7(V)2.2(H) KW |
| Overall dimension | 1720X1520X2225 MM |
| Machine weight | 1770/1900KGS |
| Contact Us: |
| Miss Wynn Sales ManagerTENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 16678336698 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
