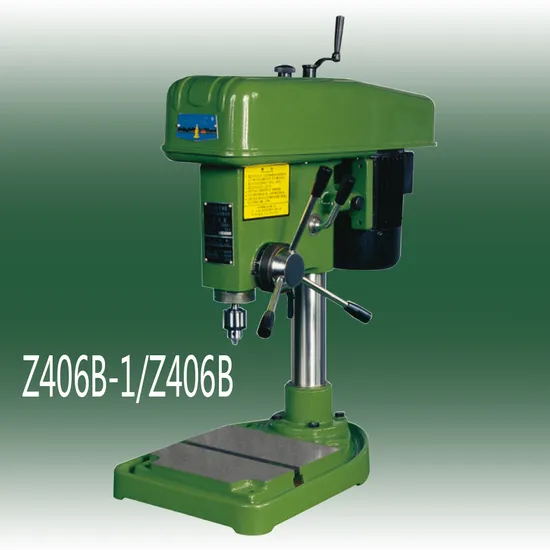

High Speed Bench Drill Z406b-1 Table High Precision Drilling Machine Maximum Drilling Diameter 6 mm
| US$431.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z406B-1
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
250W
Max Drilling Capacity
6mm
Transport Package
Wooden Case
Specification
64*33*61cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | Z403 | Z406B-1/Z406B |
| Max drilling capacity | 3mm | 6mm |
| Diameter of column | 50mm | 50mm |
| Spindle travel | 40mm | 65mm |
| Distance spindle axis to column surface | 140mm | 140mm |
| Max distance spindle nose to base | 175mm | 225mm |
| Spindle taper | JTO | B10 |
| Spindle speeds range | 7000-18000rpm | 2000-12000rpm |
| Spindle speeds | 3 | 3 |
| Dimension of base worktable surlace | 200x200mm | 200x200mm |
| Overall height | 546mm | 606mm |
| Motor | 250W | 250W |
| G.W./N.W. | 46/38kg | 46/38kg |
| Ship measurement | 64x33x61cm | 64x33x61cm |
| Model | ZWG-4(A) | ZWG-4B |
| Max drilling capacity | 4mm | 4mm |
| Diameter of column | 40mm | 40mm |
| Spindle travel | 40mm | 40mm |
| Distance spindle axis to column surface | 101mm | 127mm |
| Max distance spindle nose to base | 174mm | 170mm |
| Spindle taper | JTO | B10 |
| Spindle speeds range | 6000-12000rpm | 2800-9000rpm |
| Spindle speeds | / | 3 |
| Dimension of base worktable surface | 160x170mm | 180x175mm |
| Overall height | 517mm | 618mm |
| Motor | 80V | 150W |
| G.W,/N.W, | 17.5/16kg | 24/22.5k9 |
| Ship measurement | 32.6x24.4x44.2cm | 53x37x27cm |
