CE Omron Control Electric Cocoa Gas Heating Coffee Bean Roasting Machine Coffee Roaster
| US$3,450.00-3,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1kg/batch
Usage
Roaster
Power Source
Electric
Timing Device
With Timing Device
Type
Roasting Machine
Voltage
380V
Customized
Non-Customized
Material
304 Stainless Steel
Application
Coffee Bean Roasting
Heating Source
LPG,Npg,Electric
Capacity
1=300kg/Batch
Color
Gold,Black,Red,Blue,or at Your Request
Data Logger
Included
Timer
Included
Temperature Control
Included
Certificate
CE,ISO
Transport Package
Wooden Case
Specification
85kg
Trademark
Tamok
Origin
Zhengzhou, Henan
HS Code
8501109990
Production Capacity
500sets/Month
Packaging & Delivery
Package Size
1100.00cm * 850.00cm * 900.00cm
Package Gross Weight
150.000kg
Product Description
CE Omron Control Electric Cocoa Gas Heating Coffee bean Roasting Machine Coffee RoasterAdvantages of the coffee roaster: 310# stainless steel multilayer drum
1.OMRON dual temperature LED controler
2.Industrial configuration,continuous running without stop.
3.Hot air hand operated air valve,Electronic stepless speed regulation
4.Imported adjustable speed motor,suitable for different coffee beans.
5.Dynamic roasting software(USB data logger) connected to computer.
6.Gas type adopts copper casting furnace,high calorific value,effectively enhance the temperature climbing rate
7.Electric heating type adopts 316 Stainless steel far infrared heat pipe,long service,heat efficiency 99%.
8.Efficient Shaq dragon silver leather dust collecting barrel
9.Six - GB edgewise buckle, convenient maintenance and maintenance
10.Glass flame windproof observation door, extreme fineThe color of LED stainless steel button, service life of up to 50000 times.
Technical parameters of the coffee roaster:
Small models
| Model | 500g | 1kg | 2kg | 3kg |
| Capacity per batch | Max 500g | Max 1.5kg | ||
| Roasting mode | Direct fire half hot air heating | |||
| Roasting period | 12-15 minutes | |||
| Heating source | LPG,NPG,Electric | |||
| Electricity | 220V,380V/50HZ or customized | |||
| Motor qty | 4pcs | |||
| Main machine&Mix power | 20W | 90W&20W | 90W&50W | 180W&90W |
| Hot&Cool blower power | 45W&15W | 50W&50W | 50W&50W | 200W&90W |
| Power consumption | 0.5kw/h(Only electric) | 0.22kg/h(Gas) 0.13kw/h(Electric) | 0.35kg/h(Gas) 0.25kw/h(Electric) | 0.5kg/h(Gas) 0.45kw/h(Electric) |
| Dimensions(L*W*H) | 330*440*750mm | 1150*800*1100 mm | 1200*850*1100 mm | 1200*1000*1270 mm |
| Weight | 30Kg | 110Kg | 130Kg | 200kg |
Medium models
| Model | 6kg | 12kg | 15kg | 20kg |
| Capacity per batch | Max 7kg | Max 15kg | Max 16kg | Max 23kg |
| Roasting mode | Direct fire half hot air heating | |||
| Roasting period | 12-15 minutes | |||
| Heating source | LPG,NPG,Electric | |||
| Electricity | 220V,380V/50HZ or customized | |||
| Motor qty | 4pcs | |||
| Main machine&Mix power | 200W&180W | 400W&200W | 400W&200W | 745W&375W |
| Hot&Cool blower power | 375W&200W | 375W&750W | 750W&200W | 745W&375W |
| Power consumption | 0.8kg/h(Gas) 0.7kw/h(Electric) | 0.8kg/h(Gas) 0.7kw/h(Electric) | 1.5kg/h(Gas) 1.5kw/h(Electric) | 2.2kg/h(Gas) 2kw/h(Electric) |
| Dimensions(L*W*H) | 1520*960*1650mm | 1530*980*1700mm | 1800*1100*2000mm | 2100*1200*1950mm |
| Weight | 280Kg | 370Kg | 480Kg | 580kg |

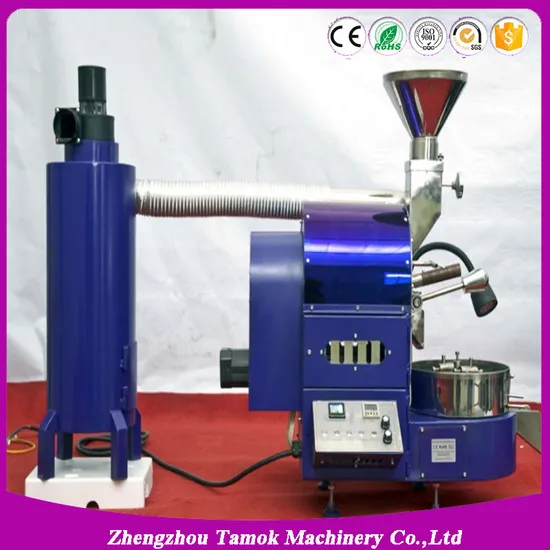

Detail photoes of the coffee roaster:
Coffee roaster with USB data log
Different Parts and Warehouse Stock Pictures
Packed Pictures
