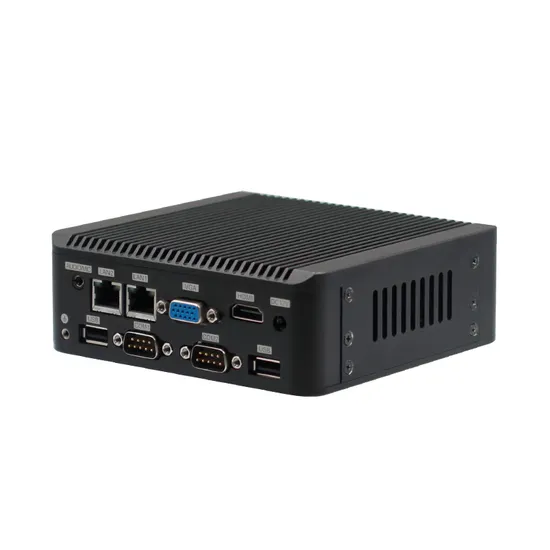

Factory Intel 8th Gemini Lake 1VGA 2LAN 6COM Industrial J4125 Fanless Nano Mini PC

Product Description

Product Description
Product features
*Integrated Intel Gemini Lake single CPU;
*Support TPM2.0(optional)
*Provide 1*VGA,1*HDMI 1.4(Support 4K display output);
COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings, COM3, COM4, COM5, COM6 are RS232
*onboard 32/64/128G EMMC storge chipset(optional);
*Support power-on automatic boot function, jump selection;
*Wide viltage 12-19V power supply;
*Size 134*126*46.8 mm

Processor system	CPU	Integrated Intel Gemini Lake single CPU
	CPU package	BGA
	Chipset	Intel Gemini Lake serial SOC
	BIOS	EFI BIOS
Memory	Technology framework	Single channel DDR4 2133Mhz
	Memory	MAX Support DDR4 8G
	Socket	DDR4 SODIMM 60 Socket
Video	Graphic controller	Intel UHD 600 Graphics
	HDMI	HDMI(2.0)MAX resolution 4K@60Hz
	VGA	VGA MAX resolution 1920x1200
I/O rear panel	ports	1*HDMI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 are RS232) 1*Quick boot button with indicator light 1*Reset button 1*DC 1*Power indicator light 1*Hard disk indicator light
Network	Controller	2*Intel I211AT or Intel I210High-performance gigabit network card(Optional)
Input/output interface	USB	4*USB2.0 2*USB3.0 Max support +5V/1A
	Com port	COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 are RS232
Expansion bus	Mini-PCle	1 Mini-PCIe socket,support PCIe and USB device(5G module or 4G module optional)
Storge	SATA	1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
	M-SATA	1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate of 6gb/s
	EMMC	Support 32/64/128G(optional)
Power supply	Power Type	Single input dc power supply,DC12-19V
Working environment	Operating temperature	-20ºC ~ +60ºC
	Storage temperature	-40ºC ~ +85ºC
	Working humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
System Support		Windows10 Linux
Physical dimension	Size	134*126*46.8 mm
	Weight	0.5KG
Certification		CE,ROHS,FCC

Product Parameters
Company Profile
Certifications
Packaging & Shipping
Our Exhibition FAQ Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples
Faster Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
