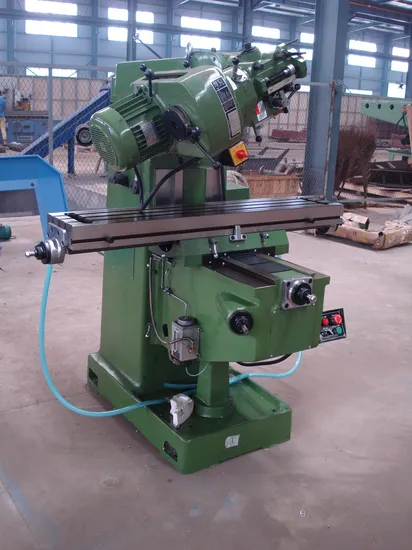

X6325 Universal Milling Machine
| US$3,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Work Table Size
254X1370(10”X54”)
RAM Travel
470 mm
Spindle Taper
R8, ISO30, ISO40
Spindle Travel
127mm
Spindle Speed
50Hz:65-4500 60Hz:80-5440
Quill Feed
0.04,0.08, 0.15mm
Spindle Motor
3HP
T-Slot
3X16
Long Travel
820/920 mm
Vertical Travel
350mm
Milling Machine
RAM Milling Machine
Transport Package
1516X1550X2080mm
Specification
1200kg
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
Milling MachineX6325
•Rectangular guide way adopted on Y-axis and Z-axis make good quality
•The guide way on saddle is lined with TF wearable material which make machine accuracy stability
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 3HP motor, standard spindle 16 speed step pulley head,optional is variable speed.
| Model | unit | X6325 | X6325A | X6325B | ||
| Table size | mm | 254x1270(10"x50") 254x1370(10"x54") | ||||
| Longitudinal travel | mm | 820 | 800 | 820 | ||
| 920 | 900 | 920 | ||||
| Cross travel | mm | 420 | 380 | 390 | ||
| Vertical travel | mm | 400 | 370 | 350 | ||
| Ram travel | mm | 470 | 470 | 470 | ||
| T-slot | 3x16 | 3x16 | 3x16 | |||
| Spindle travel | mm | 127 | 127 | 127 | ||
| spindle speed | rpm | 16 steps 50HZ:65-4500 60HZ:80-5440 Optional:variable 65-4500 | ||||
| Spindle motor | hp | 3 | 3 | 3 | ||
| Spindle taper | R8 | R8 | R8 | |||
| Auto quill feed | mm | 0.04,0.08,0.15 /0.0015",0.003",0.006" revolution | ||||
| Head swivel L/R | 90 | 90 | 90 | |||
| Head tilting F/B | 45 | 45 | 45 | |||
| Weight | kg | 1200 | 1280 | 1320 | ||
