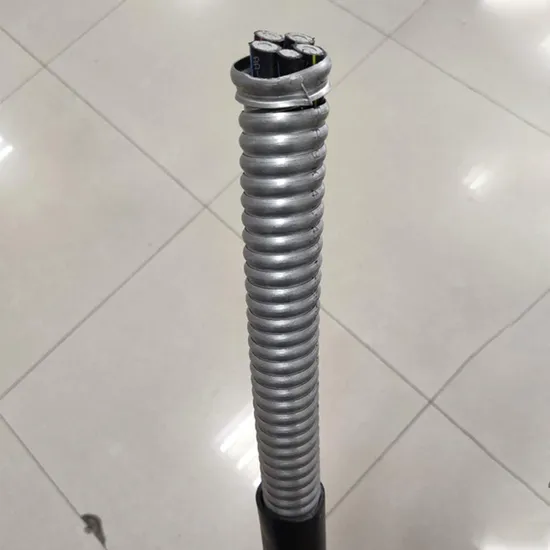

600V Acwu90 Aluminum Conductor Al/XLPE/Aluminum Interlocked Aia Armoured/PVC Electric Cable Wire

Product Description

Product Description
600V ACWU90 ALUMINUM CONDUCTOR XLPE/ALUMINUM ARMOURED/PVC ELECTRIC CABLE Applications:
For exposed and concealed wiring in dry, damp or wet locations For use in ventilated, Non-ventilated and ladder-type cable trays in dry, damp or wet location For direct earth burial (with protection as required by inspection authority) For wiring all hazardous locations when used with certified HL cable glands For service entrance installations (where exposed to sunlight, insulation requires covering of suitable heat shrink).
Features:
Rated at 90°C wet or dry
Excellent crush, oil and chemical resistance
Provides long service life
Cost effective alternative to installations in conduit
Meets cold bend and impact tests at (-40°C)
Conductor:
8 AWG. thru 750 kcmil aluminum
(8000 series aluminum) compact class "B" strand
Insulation:
Cross-linked Polyethylene (XLPE) Type RW90
Colour Coding:
#8 AWG thru #2 black, red, white
#1 AWG thru 750 kcmil black with printed colours
Bonding Conductor (Ground):
One (1) bare stranded aluminum (ACM) conductor
Armour:
Aluminum Interlocked Armour (AIA)
Jacket:
Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC),black. Custom colours available upon requestCompliances:
Industry compliances: CSA Standard C22.2 No. 51 and No.174, RoHS
Flame test compliances: CSA and FT4, Low Acid Gas
Other compliances: Hazardous Location Rating: HL
