Chemical Tank 1000L IBC Container HDPE Blow Moulding Water Tank Extrusion Blow Molding Machine

Product Description

Product Description
DAWSON MACHINERY & MOULD GROUP

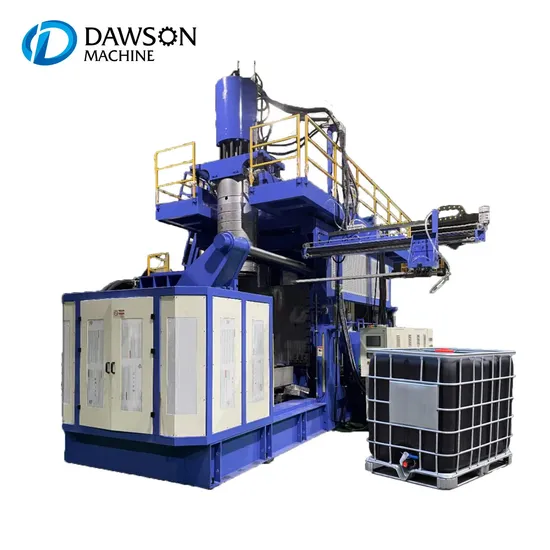

Extrusion Blow Molding Machine DMB-1000L

DMB-1000L extrusion blow molding machine is suitable for producing 500-1000L IBC Tanks. Equipped with special designed screw suitable for UHMWPE material, with uniform plastication, and no temperature rise, which shorten the IBC tank forming cycle. It's production capacity can reach over 500pcs/day.
Manufacturing IBC tanks, changing color is a common procedure, using our special designed die head, you can shorten the color changing time, save power energy. One IBC tank use 8kw electricity.
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Machine Model		Max. Bottle size	Production forecast
DMB-1000L	Single Station Accumulator Head	1200L	20-25 BPH

Technical Parameters

Name	Units	DMB-1000L
Max.product volume	L	1200L
Screw diameter	MM	120
Screw drive power	KW	132
Output of HDPE	KG/H	500-550
Oil pump drive power	KW	42
Clamping force	KN	2200
Max.size of mold	MM	1700× 1800
Template size	MM	1800×1800
Mold stroke	MM	1100-3300
Size of machine	L×W×H	11×7×7
Weight of machine	TON	65

Machine Advantages
Clamping System
Clamping system adopts new patented design two-rod clamping unit.
Reliable mold locking, uniformity mold force, larger mould space, mould installation is more convenient.
Machine adopts linear rolling quideline with feature of small friction.resistance, good motion characteristic, the high pre-cision mould clamping.

Adopts linear displacement transducer, precision and reli-able position control,good repeatability, convenient setting.
Inclined two-rod clamping type let machine produce bigger products.
Extrusion System

The inner and outerlayer L/D is 30:1,so the extrusion system has a wide material adaptability, high quality plasticizing effect, it is appropriate to process the polyethylene polymer materials.
Plasticizing capacity is higher than similar machine; main parts of barrel and screw adopts good quality nitriding alloy steelwhich has high hardnessand long service life.
Barrel has a force feeding groove

The type of screw is new; it can choose milling type,barrier typesplit-flow type according to different material..
High quality hard tooth reducer work steady with lower noise
Driving power adopts DC or AC frequency conversion motor. withhigh-powered governing system, rotation speed is steady and power is strong
lnstall platformof extrusion systemand die can dolly movesand save
the upper space of clamping device, mould changing is much easier.
Control System
Electrical control system adopts B&R high performance comput-er-controlsystem as the whole system controlpart
Use new type multi-button human-machine operation panel
lt realize parison thicknesscontrol, parameter setting, alarm dis-play and order transmission.
This system has open type structure, modular design and field bus interfacenusing the European standard control module, make production and management more convenient
Control has high stability and reliability
Blowing System
Bottom blowing device has twice fluctuation,expansion, pre-clip
and other functions
Flexible confiqured blow head:and expanding rod can adapt to technical requiremients of different products creative design blow head has fluctuate function, it does not damage the uniform thickness of mold barrelmouth, to ensure product quality.

Blowing type can realize upper blow, bottom blow, side-blow
various forms.
Blowing stereotypic can achieve high pressure, low pressure and
cycling blowing type.

Customer Photos

Our professional blow molding machine workshop...
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,
HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India,
Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia,
Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 20 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 20 years, we always force our energy into new areas of plastic machinery,
plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 65 countries, we provide complete solution for your plastic industry business,
as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!


Our service

FAQ

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up at the Airport. (or Hongqiao International Airport. ) We also support online visiting by video.
Q: How can we know the production cost for a IBC tank?
Contact with us, we will list the production cost for all the auxiliary equipments. Further more, we also can help you check the production cost for the cage outside and the purchasing cost for the IBC tank spare parts.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For this machine, the delivery time is 90-100 working days.
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q:How long it will take to install the DMB1000L machine?

Because our machine is with modular design, so it's easy for the assembling, so the machine can be finished installation in one day.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
