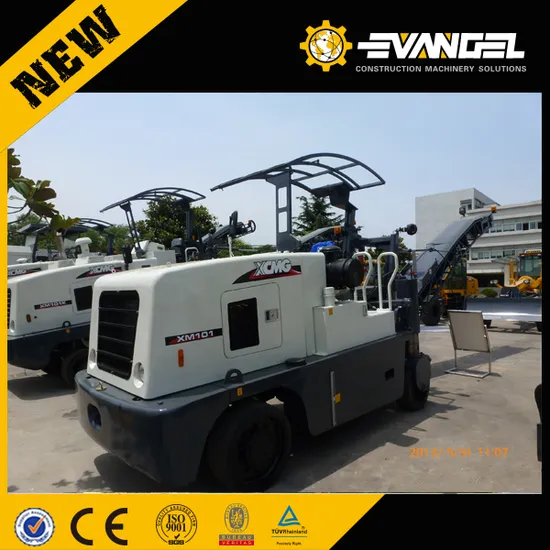

Brand Cold Milling Machine Xm101

Product Description

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
The imported hydraulic elements have high working reliability.
Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
Hydraulic handheld breakers and rumble strip equipment can be selected.

Model			XM101
	Max. milling with	mm	1020
	Max. milling depth	mm	120
Milling wheel	Number of tools		84
	Drum diameter with tools	mm	660
Engine	Model		D6114
	Rated power	kW	125
	Rated speed	rpm	2200
Specifications	Operating speed	m/min	0~13
	Travel speed	kmh	0~13
	Ground clearance	%	≥20
	Ground clearance	mm	≤120
	Operating weight	kg	14500
Volume	Fuel tank	L	210
	Hydraulic oil tank	L	160
	Water tank	L	360
Conveyor	Width	mm	400
Measurement	Overall machinery LxWxH	mm	4583×2294×3130
	Conveyor LxWxH	mm	6428×700×610
Travel mode			Tire
