Cut to Length Cutting Machine for Shunt Reactor Transformer Core
| US$300,000.00-1,000,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
customized
Drive Mode
CNC
Warranty
2 Years
Material Tolerance
0.1mm
Material Burrs
0.03mm
Material Thickness
0.18-0.35mm
Material Width
100-600mm
Height of Core
60-400mm
Stepped Size
0-600mm
U Slot Punch
W:25-40mm
Depth
0-800mm
Length Tolerance
0.02mm/200mm
Shearing Burr
0.02mm
Punching Burr
0.02mm
Max Feeding Speed
200m/Min
Effective Working Speed
120m/Min
Capacity
30kVA
Compressed Air Pressure
0.4-0.7MPa
Transport Package
Standard Packing
Specification
5600*5400*1900
Trademark
Senerge
Origin
Zhejiang
Production Capacity
3 Sets/Month
Product Description
Silicon steel Electrical Reactor Disk Core Cutting Line Machine Cut to length line machine
1.Summary

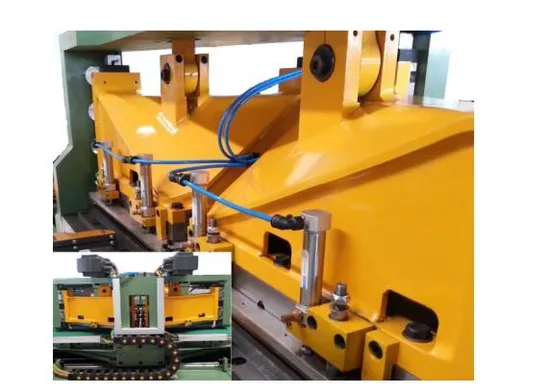

CTL(R)24-600 X 400 reactor disk core cutting line is used for processing large and medium size reactor core wedge stack of the core device. The equipment can automatically complete the fixed length feeding, punching and shearing, chamfering, and classification and automatic stacking at both ends.
2.Main Parameters
1)Raw material to be processed on this machine
Material : Silicon Steel
Material Tolerance :±0.1mm;
Material Burrs : ≤0.03mm
Material S Level : 0.1mm≤ 1000mm
Material Wave Level : ≤15 mm /1000mm
2)Process range
Material Thickness : 0.18~0.35mm;
Material Width : 100~600mm;
Height of Core(H1):60~400mm;
3. Description of components
3. 1 Double Head Decoiler
Roll inside diameter 495--510mm
Expansion range of decoiling mandrel 470--520mm
Max width of roll 620mm
Max outside of roll 1000mm
Decoiler load-bearing 3000kg
