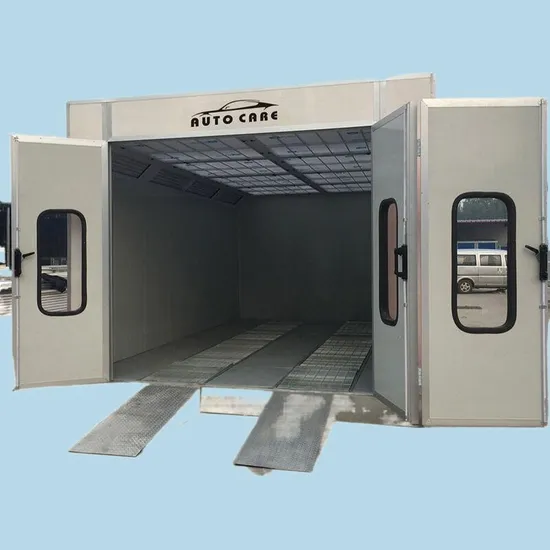

Spray Bake Paint Booth Automotive Spray Booth/Car Paint Spray Room CE Approve Custom AC-6900
| US$5,500.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Type
Spray Booth
Substrate
Steel
Brand
Autocare
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Installation
CD and Drawing
Lighting System
LED
Usage
Car Painting and Baking
Ceiling Light
40PCS
Side Light
32PCS
Filter
Primier, Floor and Ceiling Three Filters
Inner Size
L*W*H=8000*4000*3000mm
Outside Size
L*W*H=8100*5250*3700mm
Color
Red, Blue, White, Orange etc..
Transport Package
Standard Exporting Package
Specification
22cbm
Trademark
AUTOCARE
Origin
China
HS Code
8419899090
Production Capacity
500 Sets/Year
Product Description
spray bake paint booth Automotive Spray Booth/Car Paint Spray Room CE approveCertifications
Packaging & Shipping
Product Parameters
| Detailed Parameters | ||||
| Dimensions | Length (mm) | Width (mm) | Height (mm) | |
| Booth Outside | 7,000 | 5,200 | 3,600 | |
| Booth Inside | 6,900 | 3,900 | 2,750 | |
| Entrance Door | 3 folds,size is 3,000×2,700mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock | |||
| Personnel Door | size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock | |||
| Plenum Chamber | 700mm high, all spare parts of plenum are made of galvanised bended steel and treated by white powder for long using life. | |||
| Walls Panel | 75mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel. | |||
| Basement System | Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame. loading weight is 600KG/wheel | |||
| Diamond Plates (Powder Coated or Galvanized)* 3rows | ||||
| 2 ramps,each size 800x2,000mm(WxL) | ||||
| Heating System | 10 units of Infrared Lamp, 3pc/unit, 1kw/pc, total power: 30pcs; Each set of infrared lamp have protected net, and lamp box; The electric heating exchange rate reaches 95%. Infared heat radiation have a feature of high penetration,efficient,no noise,pollution free etc. Max temperature reaches 80°C. | |||
| 4. Filter System | Primary Filter* 1set, filtering rate > 83% G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3) | |||
| Air-Intake Filter* 1set, filtering rate > 97% Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) | ||||
| Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70% Fibre glass filter, G2 Grade(EU-3) | ||||
| 5. Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each | |||
| Air-Exhaust Fan* 1unit, Centrifugal Fans with 4 KW motor | ||||
| Belimo NMU230 20NM electric damper | ||||
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit | ||||
| 6. Illumination | Ceiling Lights * 32pcs, 20kw LED lamp, with Light Fixtures, anti-explosion design | |||
| Side Lights * 32pcs,20kw LED lamp, with Light Fixtures, anti-explosion design | ||||
| Illumination ≥800LUX | ||||
| 7. Control Panel | *1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc. | |||
| ** Included | All Hardware, Fasteners, and Sealants | |||
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 6 years, More skillful to offer you a project plan according to clients' request.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Yantai.All clients, from home and abroad, are warmly welcomed to visit us. You can visit us by air to the YANTAI port. Then we will pick you up there.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,
our products are excellent in performance and craftsmanship, got a good feedbacks by customers from more than 96 countries.
4.Q:Can we customize our product?
A:Yes,you can. Customized material and standard are acceptable. We can provide different
standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept 1 set of each machine once time.
6.Q:What's the delivery time?
A:When order confirmed, the machine with our standard configurations, it's 7 workdays.
