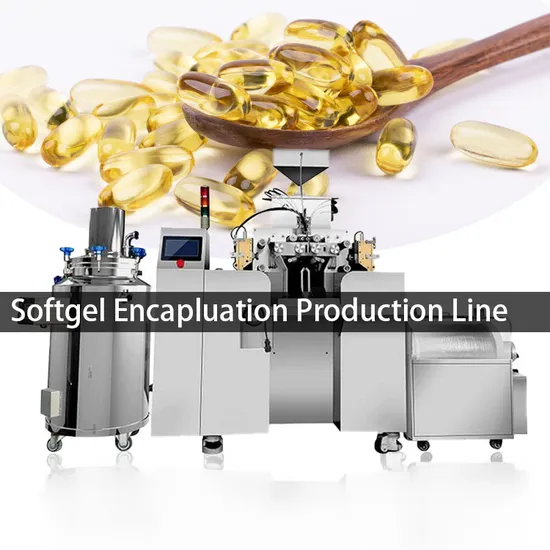

Pharmaceutical Automatic Soft Gelatin Capsule Encapsulation Filling Line Vitamin Fish Oil Omega Capsule Filler Softgel Capsule Making Machine

Product Description

Pharmaceutical Equipment Automatic Soft Gelatin Capsules Encapsulation Filling Line Vitamin Fish Oil Omega Capsule Filler Softgel Capsule Making Machine Product Description
Softgel Gelatin Capsule Softgel Encapsulation Paintball Making Pharmaceutical Filling Packing Machine is the essence condensing of decades professional experience on softgel. During the development process, the designer personallly conducted long-term production investigation and research in the softgel production base, combined the characteristics of various types of softgel machines, absorbed rationalization suggestions from operators and verifying by improved experiments, adopted international advanced control technology, elaborate designed and precisely manufactured in the spirit of people-oriented. It is a stable and reliable production line for producing high quality softgel. At the same time, the 3rd generation softgel encapsulation machine development platform was established during the process of development. Softgel Gelatin Capsule Softgel Encapsulation Paintball Making Pharmaceutical Filling Packing Machine is mass production equipment and suitable for customers with different capacity requirements. The equipment has compact structure, easy operation, simple maintenance, stable performance, high production and low consumption. It is suitable for food, pharmaceutical, cosmetics,
paintball and chemical industry.

Model	SINO-60	SINO-100	SINO-200	SINO-300
Roller Die Dimension	Φ64x60mm	Φ64x100	Φ103x200mm	Φ150x300mm
Roller Die Pressure	0.1-0.5MPa	0.1-0.5MPa	0.1-0.5MPa	0.1-0.5MPa
Roller Die Speed	0-4rpm Stepless Speed Adjust	0-4rpm Stepless Speed Adjust	0-6rpm Stepless Speed Adjust	0-4rpm Stepless Speed Adjust
Material Feeding Quantity	4 X (0-1.5)mL	6 X (0-1.5)mL	12X (0-2)mL	24 X (0-1.5)mL
Filling Quantity Precision:	<500mg, ±1% ; >500mg, ±0.5%
Power	AC380V 50Hz 1.5kW	AC380V 50Hz 1.5kW	AC380V 50Hz 7kW	AC380V 50Hz 10kW
External Size	670×450×750mm	620×660×1350mm	1800×770×1800mm	1880×1050×2000mm
Weight	200kg	400kg	1250kg	1600kg

Auxiliary machine system of soft capsule production line
1.FULL-AUTOMATIC GELATIN MELTING AND MATERIAL SUPPLY SYSTEM
Full-automatic gelatin melting and material supply system is designed according to the actual situation of softgel production.It can realize to produce strictly according to the specified production process and reduce human intervention in production process to ensure consistency of gelatin and material in each batch.
The system is managed by computer.It controls the temperature in the tank, pressure, feeding sequence, feeding time, mixing time and dissolving time according to the technological requirements in the whole process. The system automatic weighing of main material (e.g.gelatin)weight and automatic calculation of auxiliary material(e.g.water and glycerin, etc. )dosage into the tank to finish the whole process.
The system can form data formulation according to different softgel production process and backup and archive all process parameters.It will be convenient to use again, simple and efficient.
The system includes vacuum stirring system(Vacuum stirring tank,buffer tank and condensing tank),hot water tank,hot water circulating pump,water ring vacuum pump,circulating water system,weighing system and control unit.
2.SINO SERIES VACUUM STIRRING SYSTEM
SINO series vacuum stirring system is a kind of homogenizing equipment which consists of water (steam) bath type heating vacuum stirring tank, buffer tank and condensing tank. It is widely used in pharmaceutical, food and precise chemical industries. In softgel production, SINO series vacuum stirring system used for gelatin melting and materials heating preparation process.
SINO Series Vacuum Stirring Tank can bear a certain positive and negative pressure and the tank body is three layers structure. Between the inner layer and middle layer is the heating medium layer,it can be filled with hot water or steam to heat the material inside the tank.Between the middle and outside layer is high efficacy insulation material,which doesn't influence the room temperature.The tank body is made of stainless steel and completely meets the GMP requirement. It is the tight structure,stable stirring,uniformity and low noise.
There is thermometer on the tank body to indicates the temperature inside the tank. There is vacuumizing outlet, add (exhaust) air outlet,materials feeding outlet,sight lamp, safety valve and pressure gauge on the tank lid. The operation is safe and reliable.
The Buffer Tank to guarantee the material not flow into the pipe or vacuum pump when vacuumizing to prevent the vacuum system failure.
There are cooling pipe inside the Condensing Tank, which is used for storing the hot air (steam) when vacuumizing to prevent damage of the vacuum pump.
3.Model SINO-3 Tumble dryer is designed by investigation and analysis of modern drying technology from numerous soft capsule manufacturers home and abroad,combining the large scale production characteristics of soft capsule drying. It is fully complicated with GMP requirements and the entire equipment is simple and practicable, artistic and elegant.
4.WATER CHILLER
The water chiller controls compressor start-up and shutdown through automatic temperature regulation and the temperature of coolant can be controlled.It is the auxiliary equipment for the softgel encapsulation machine and blister packing machine etc.
5.SOFTGEL DIE ROLLER
The shape and sizes of the die roller decides the appearance and filling quantity of the soft capsules.Because of different gelatin liquid properties and different drying process will causes the drying shrinkage ratio to be inconsistent, the overall dimension of the finished soft capsules is different from the die roller cavities geometric dimensions will be the normal phenomenon.We can design the die roller according to the soft capsule samples and basic process parameters provided by users. It can get the realistic effect of the finished products of the soft capsules.SINOPED is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPED International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have desined and developed many types of machinery and equipment in many varieties. Our main products are clean room project,softgel production line, glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad
