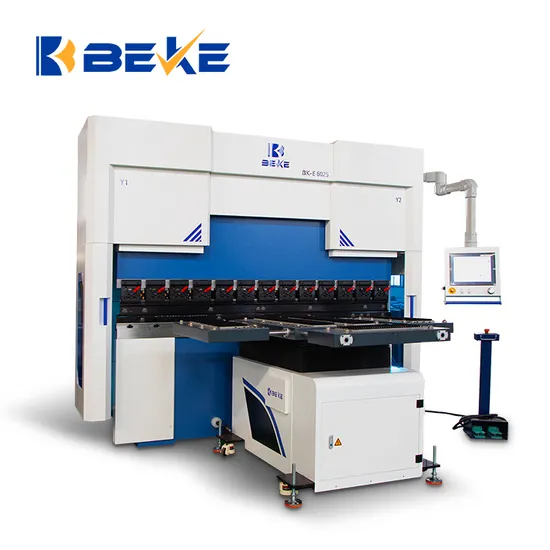

Efficient and Precise Bke-6025 All Servos Electric Press Brake
Basic Info.
Model NO.
BKE-6025
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Servo Main Motor
Japan SANYO
Screw Rod
German If
Servo Drive
Japan SANYO
Drive for Backguage
Inovance
Ball Screw and Linear Guide Rail
Taiwan Tbi
Punch and Die
with Heat Treatment
Quick Clip
Amada Style Double Sided
Transport Package
Wooden Box or Container Directly
Specification
3025x1200x2440mm
Trademark
BEKE
Origin
China
HS Code
8462290000
Production Capacity
50 Set/Month
Product Description
Product Description Product Parameters| Name | Unit | BKE-60T2500mm |
| Pressing Force | KN | 600 |
| Max.bending Length | mm | 2500 |
| Throat Depth | mm | 220 |
| Working stroke | mm | 150 |
| Back Stroke | mm | 400 |
| Max Opening Height | mm | 300 |
| Working Speed | mm/s | 20 |
| Back Gauge Stroke | mm | 300 |
| Approaching Speed | mm/s | 200 |
| Returning Speed | mm/s | 200 |
| CNC Control Axes | Y1,Y2, X, R, Z1, Z2 | |
| Main servo motor | KW | 15 |
| CNC System | Domestic CNC system | |
| Length x Width x Height | mm | 3025x1200x2440 |
| Weight | kg | 5800 |
| --Energy Conservation One of the advantages of pure electric servo drive technology is that the input power of the motor is proportional to the load power, and the power consumption is high during bending. The power consumption is low when the slider rises with no load, and there is basically no power consumption when the slider stops The pure electric servo Press brake does not use hydraulic oil, does not replace hydraulic oil, does not replace hydraulic components, does not replace or replace the system daily hydraulic oil leakage, and does not have waste oil treatment and pollution. Fast sliding speed, high production efficiency, and fast slider speed --Environment Protection The pure electric servo Press brake does not use hydraulic oil, does not replace hydraulic oil, does not replace hydraulic components, does not replace or replace the system daily hydraulic oil leakage, and does not have waste oil treatment and pollution. Fast sliding speed, high production efficiency, and fast slider speed. --High Bending Accuracy The bending angle error of the hydraulic Press brake is within ± 1 °, while the main drive of the servo Press brake is driven by the servo motor to drive the lead screw, which has higher transmission accuracy. By measuring the bending angle of various specifications of plates, the bending angle error can be well guaranteed to be within ± 0.5 ° | ||
