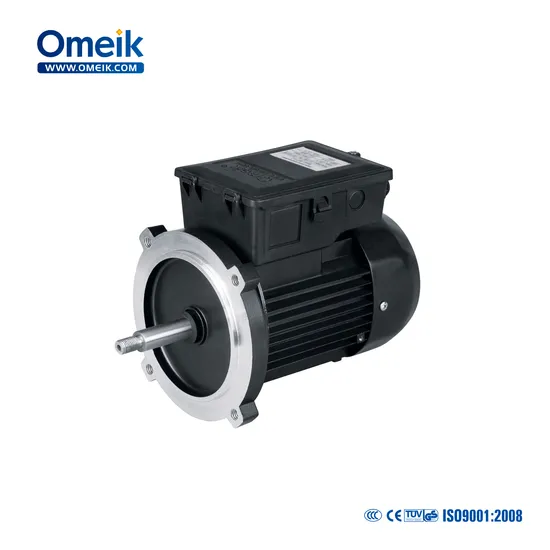

NEMA Standard 56 48 Forma J Forma C High Quality High Torque Low Noise AC Electric Motor
Basic Info.
Model NO.
FT71-550
Number of Stator
Single-Phase
Species
Ml Single Phase Motor
Rotor Structure
Winding Type
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Auto-induction Voltage-reduced Starting
Certification
ISO9001, CCC, CE
Brand
Omeik/OEM
Insulation Class
Class B/F
Cooling Method
IC0141
Protection Class
IP44/IP54/IP55
Duty
Continuous(S1)
Mounting
B3/B5/B14/B34/B35
Housing
Aluminum
Certificate
Ce / ISO9001
Transport Package
Carton/Plywood Pallets
Specification
100% copper wire
Trademark
OMEIK/OEM
Origin
Fuan, China
HS Code
8501400000
Production Capacity
5000PCS/Month
Product Description
Application:>> Designed for the pool pump, bathtub pump, centrifugal pump
>> Be made of seleceted quality material, latest design in entirety
>> Good performance, low noise, little vibration, safe and reliable coopeation
>> Nice appreance, light weight
>> Be maintained very convenienty, simple constuction.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.
| Model | Output | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
| KW | HP | (A) | Factor | (%) | (r/min) | ||||
| FT63-180 | 0.18 | 1/4 | 1.33 | 0.93 | 66 | 2800 | 0.5 | 4 | 1.8 |
| FT63-250 | 0.25 | 1/3 | 1.82 | 0.93 | 67 | 2800 | 0.5 | 4 | 1.8 |
| FT63-370 | 0.37 | 1/2 | 2.62 | 0.93 | 69 | 2800 | 0.45 | 4 | 1.8 |
| FT63-550 | 0.55 | 3/4 | 3.79 | 0.93 | 71 | 2800 | 0.45 | 4 | 1.8 |
| FT71-550 | 0.55 | 3/4 | 3.79 | 0.93 | 71 | 2800 | 0.45 | 4 | 1.8 |
| FT71-750 | 0.75 | 1 | 5.02 | 0.93 | 73 | 2800 | 0.4 | 4 | 1.8 |
| SD63-180 | 0.18 | 1/4 | 2.62/1.31 | 0.93 | 67 | 3450 | 0.5 | 4 | 1.8 |
| SD63-250 | 0.25 | 1/3 | 3.6/1.8 | 0.93 | 68 | 3450 | 0.5 | 4 | 1.8 |
| SD63-370 | 0.37 | 1/2 | 5.16/2.58 | 0.93 | 70 | 3450 | 0.45 | 4 | 1.8 |
| SD63-550 | 0.55 | 3/4 | 7.46/3.73 | 0.93 | 72 | 3450 | 0.45 | 4 | 1.8 |
| SD71-550 | 0.55 | 3/4 | 7.66/3.83 | 0.93 | 72 | 3450 | 0.45 | 4 | 1.8 |
| SD71-750 | 0.75 | 1 | 9.9/4.95 | 0.93 | 74 | 3450 | 0.4 | 4 | 1.8 |
| SD80-1100 | 1.1 | 1.5 | 14.14/7.07 | 0.93 | 76 | 3450 | 0.4 | 4 | 1.8 |
| SD80-1500 | 1.5 | 2 | 19.04/9.52 | 0.93 | 77 | 3450 | 0.35 | 5 | 1.8 |
SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply
