Fully Automatic Flatbed Paper Die Cutting Machine Industrial Die Cutter AEM-800

Product Description

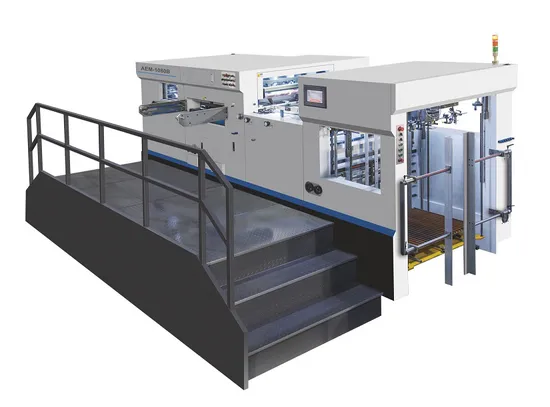

Automatic Die Cutting Machine AEM-800Q
Features
★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision intermittent mechanism, high cutting precision, running steadily.
★ Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability. Product Description

Product Parameters

Max. sheet size	800×620mm
Min. sheet size	340×280mm
Max. die cutting size	770×600mm
Min.gripper margin	7mm
Inner chase size	820mm×628mm
Stock rang	90~2000g/m(card paper); 0.1~2mm(paper); <=4mm(corrugated paper)
Die cutting accuracy	≤±0.1mm
Max. working pressure	300 T
Max. working speed	7000s/h
Max. paper feeding stacking height	1400mm(including wooden pallet)
Max. paper collecting stacking height	1200mm(including wooden pallet)
Main motor power	7.5 kw
Overall dimension(length: including pre-feeding track)(width: including the pedal)	7000mm×4600mm×2400mm
Total weight of machine	9 Ton
Full-load wattage	13kw
Air pump displacement	0.6~0.7Mpa,≥0.37m3/min
