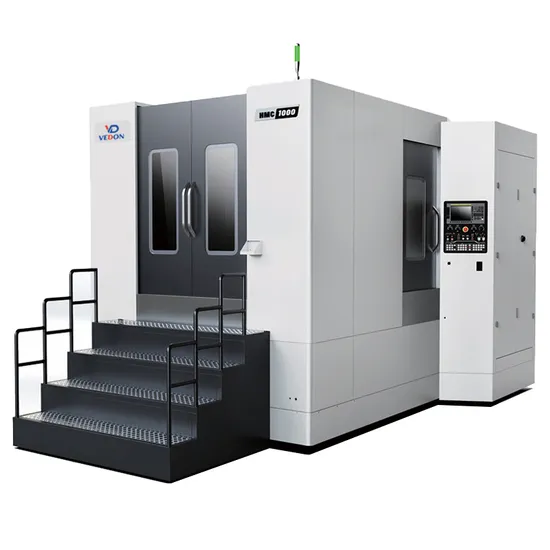

H Series Hmc1000 Horizontal Machining Center CNC Lathe with Bt50 Main Shaft Customization Available Machining Tool

Product Description

Overview
Product Application HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
Horizontal machining center has high spindle speed, strong rigidity, large torque. Spindle is equipped with cooling circulation system, double table automatically rotates and exchanges, reducing the auxiliary time and improving the efficiency.This series of machine tools has perfect performance and stable precision. It is suitable for processing various of box parts, two dimensional and three-dimensional surfaces. It is a key equipment for machining box-type parts in machinery, automobiles, ships, textile machinery, printing machinery, agricultural machinery and other industries.
Machine Details
T type bed structure
Large three-axis tracel;
wide processing range;
Standard configuration:FANUC Oi MF
Optional :Siemens 828D
The max.spindle speed is 3000rmp
The output torque is large,which is more suitable for low-speed heavy cutting.
40pcs chain type tool magazine.
Optional:60pcs chain type tool magazine.
Specifications

Specifications
Model	HMC1000
Table travel(X,Y,Z)	1700*1350*1400mm
Table size	1000*1000mm
Max.load of worktable	3000kg
Worktable indexing	10°*360°
Worktable positioning accuracy	10°
Worktabie re-positioning accuracy	2°
Rapid feed speed	24/24/24m/min
Spindle speed	30-3000rpm
Torque of spindle	770(gear)N.m
Tool shank type	BT50
Main motor power	22/26kw
Tool magazine capability	40qty
Tool weight	25kg
Positioning accuracy(X.Y.Z)	+0.005/300jlSmm
Repeat positioning accuracy(X.Y.Z)	+0.003/300jIsmm
Machine weight	25000kg

Application
Vedon Horizontal CNC Milling Machine Machining Center is widely used in aerospace, information and communication, automotive molds, medical equipment, machinery manufacturing and parts processing industries.
