Electronic Jacquard Terry Towel Rapier Weaving Machine Bath Towel Jacquard Machine Price

Product Description

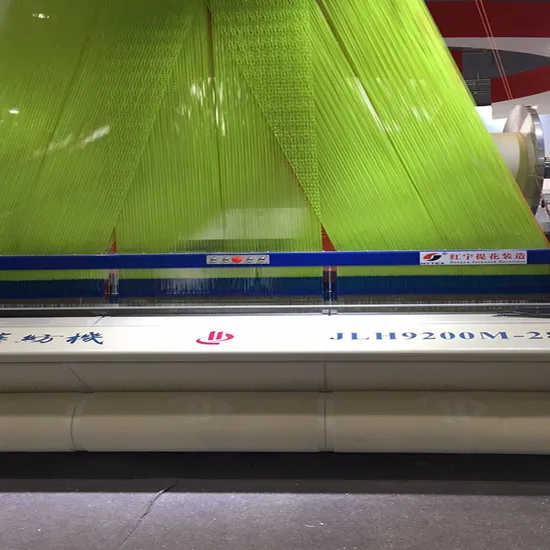

JLH9200M Terry towel air jet loom

Qingdao Jinlihua Textile Machinery Co., Ltd
Qingdao Jinlihua Textile Machinery Co., Ltd is established in 1973. Up to now, Jinlihua becomes the leading manufacturer and Exporter of textile machinery in China. Especially professioned in producing air jet looms such as towel air jet looms, cloth air jet looms, glass fibre air jet looms and gauze air jet looms. Combined the advanced technology of Japanese textile machinery with the improvement of our technicians and through several years of experiences ,our machine is of superior quality with the characteristics of easy operation, stable running, high efficiency and saving the comsuption of energy &electricity. Besides these machines, we also hold a close cooperation with air compressor, air conditioner,bleaching,dyeing and drying machine factories so as to provide buyers with the most suitable production line according to their needs (output, production workshop scale).


Product Description

First terry loom of REED MOVEMENT in CHINA
Respective machine:
Reed width:280cm
Shedding :electronic jacquard
Electronic feeder:4 nozzle
Double beam
Electronic let-off and take-up
Motor:4.0kw
Air consumption:0.7---1.2(different fabric,different air consumption)
R.P.M 400--500


Product Parameters

Main Configuration

Item				Brand/Country	Item		Brand/Country
main nozzle,sub-nozzle				jiete,Swiss	heald frame		New light,Japan
electric appliance,ELO&ETU,inverter(1:1)				China	Oil seal		Nok,Japan
electromagnetic valve ,air pressure part				SMC,Japan	Joint bearing		IKO,Japan
Bearing in the gear box				NSK,Japan	E type reed-save 10% air consumption than before		JLH,China

Advantages of JLH9200M air jet towel loom :
>>Superior speed performance
>>The wide range of product adaptability
>>easy operability.
>>Reliable quality assurance
>>Excellent environmental protection measures

Respective machine:
Reed width:260cm
Shedding :electronic dobby
Electronic feeder:4 nozzle
Double beam
Electronic let-off and take-up
Motor:4.0kw
Air consumption:0.7---1.2(different fabric,different air consumption)
R.P.M 500--500
specifacation of JLH9200M towel air jet loom

Item	JLH9200M air jet towel loom configuration	Remark
Reed space	190,210,230, 260,280,340	Useful reed width:Below 230cm cut 0-60cm Above 230cm cut 0- 80cm
Drive	Motor choose by reed. Shedding type	Dobby shedding 3.7kw, Jacquard shedding:5.5kw
Weft selection	( )set weft storage,( )main nozzle, any weft	2 color; 4 color; 6 color
Weft insertion	Electronic control mail, auxiliary nozzle relay weft, with auxiliary main nozzle, SMC solenoid valve from Japan
Beating	More support feet beating solid shaft, With weight, Crank linkage beating	above 280cm six-bar linkage, below 280cm four-bar beating
Let off	Electronically controlled continuous positive let-off, suitable for φ800 beam φ1000mm beam
Take up	electronic take up ; Weft density:25~300pick/inch inside the machine cloth roller maximum roll diameter 600mm
shedding	positive cam shedding(up to 8)shaft crank shedding (4)shaft electronic dobby shedding(up to 16)shaft	Cam box and dobby manufacture: Bintian (made in China) Staubli
Shedding cams	1/1 ; 2/1 ; 3/1 ; 2/2 ; 4/1 shaft
Heald frame	Number of New Light heald frames
Heald wires	Heald wires J type 331 ; O type 330
cutter	Mechanical shears
Selvage	Mechanical Leno Selvage
temple	30 hoops temple in the cloth above
Back beam	Double back beam, positive loose warp

Company Profile

Company information
With CE certificate and ISO9001 certificate
Good after sales service
Reliable manufacture
Exported to India,Pakistan,Russia,Turkey
20 years manufacturing experience
