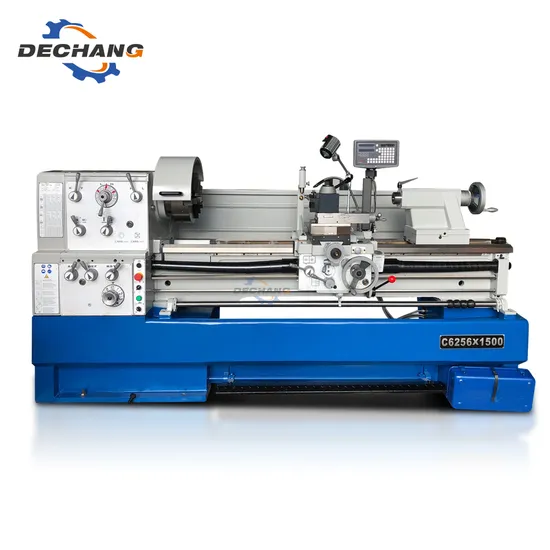

Horizontal Best Quality Precision Lathe C6256 Metal Gap-Bed Engine Lathe

Product Description

Horizontal Best Quality Precision Lathe C6256 Metal Gap-Bed Engine Lathe
Product Description
The main performance characteristics:
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with Iow noise
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
STANDARD ACCESSORIES
1 Three Jaw Chuck and Adapter
2 Four Jaw Chuck and Adapter
3 Face Plates
4 Steady Rest
5 Follow Rest
6 Oil Gun
7 Thread Chasing Dial
8 Operation Manual
9 One set of Wrenches
10 MT 7/5 Sleeve and MT 5 Center
SPECIAL ACCESSORIES
1 Driving Plate
2 Quick Change Tool Post
3 Taper Turning Attachment
4.variable speed
Product main technical specifications:

SPECIFICATION	C6256	C6256V
Swing over red	560mm(20")	560
Swing over cross slide	355mm(11-7/8")	355m
Swing in gap	785mm(29")	785
Length of gap	200mm(8")	170
Distance between centers	1000mm(60")/1500mm(60")/2000mm(80")/3000(120")	1000/1500/2000/3000
Width of bed	350mm(13-3/4")	350
Spindle nose	D1-8	D1-8
Spindle bore	80mm(3-1/8")	80mm
Taper of spindle bore	No.7Morse	No.7Morse
Range of spindle speed	12 steps, 25-1600r/min	12 steps, 25-1600
Max travel of compound rest	130mm(5-1/8")	130
Max travel of cross slide	316mm(12-15/16")	316
Leadscrew pitch	6mm Or 4T.P.L	6mm Or 4T.P.L
Max.section of tool	25×25mm(1×1")	25×25mm(1×1")
Longitudinal feeds range	35 kinds 0.059-1.646mm/rev(0.0022"-0.0612"/rev)	35 kinds 0.059-1.646
Cross feeds range	42 kinds 0.020-0.573mm(0.00048"-0.01354")	42 kinds 0.020-0.573
Metric threads range	47 kinds, 0.2-14mm	47 kinds, 0.2-14
Inch threads range	60 kinds, 2-112T.P.L	60 kinds, 2-112
Diametrical pitches range	50 kinds, 4-112D.P.	50 kinds, 4-112
Module pitches range	34 kinds, 0.1-7M.P.	34 kinds, 0.1-7
Dia of tailstock sieeve	75mm(3")	75
Travel of tailstock sleeve	180mm(7")	180
Morse taper of tailstock sleeve	No.5Morse	No.5Morse
Cross adjustment	±13mm(±1/2")	±13mm(±1/2")
Power of main motor	7.5kw(10HP)3PH	7.5(10HP)
Power of coolant pump	0.1kw(1/8HP),3PH	0.1(1/8HP)
Overall dimension(L×W×H)	239/284/334/434×115×143cm	2390/2840/3340/4340×1150×1430
Packing size(L×W×H)	245/290/340/440×115×143cm	2450/2900/3400/4400×1150×1430
Net weight/Gross weight	2195/2600 2285/2690 2560/2980 2930/3410	2195/2600 2285/2690 2560/2980 2930/3410
