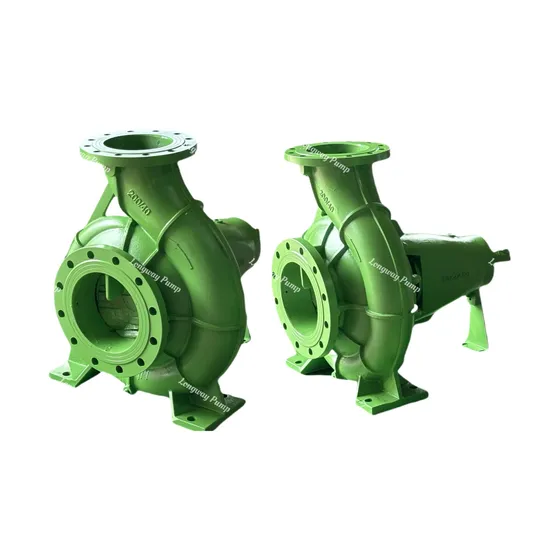

Horizontal Single Stage End Suction Centrifugal Water Pump (XA 200/40)

Product Description

XA Series high pressure pump
Model XA 200/40
Capacity; 650 cubic meter per hour
head; 48m
power; 132kw
XA pump introdueced the technology from Germany and made under DIN standard...
The pump has the following characteristics
1) speed; 1450rpm or 2900rpm
2) capacity; From 15-1000m3/h
3) head; From 15-150m
4) pump inlet diameter; From 50mm-350mm (2"-14")
5)pump outlet diameter; From 32mm-300mm (1-1/2"-12")
6) max water temperature; 105 degree celsius
7) shaft seal; Packing or mechanical seal
8) working pressure; 1.6mpa
9) we have different material impeller, shaft.
10) the pump has more than 70 models
We can also supply power for these water pumps. You can
see our diesel engines in our homepage .

Model	Capacity(m3/h)	Head(m)	Speed(r/min)	Motor Power(kW)	Intake Dia. (mm)	Exhaust Dia. (mm)	Weight(kg)
XA32/13	15	21	2900	2.2	50	32	29
XA32/16	17	35	2900	5.5	50	32	37
XA32/20	18	56	2900	11	50	32	42
XA32/26	22	90	2900	18.5	50	32	62
XA40/13	30	22	2900	4	65	40	32
XA40/16	30	33	2900	7.5	65	40	37
XA40/20	30	55	2900	11	65	40	41
XA40/26	33	90	2900	22	65	40	64
XA50/13	60	21.5	2900	7.5	65	50	37
XA50/16	65	37	2900	11	65	50	40
XA50/20	60	54.5	2900	18.5	65	50	49
XA50/26	65	89	2900	37	65	50	67
XA65/13	100	21	2900	11	80	65	40
XA65/16	100	34	2900	18.5	80	65	44
XA65/20	110	55	2900	30	80	65	72
XA65/26	120	86	2900	55	80	65	83
XA80/16	162	33	2900	30	100	80	56
XA80/20	190	52	2900	45	100	80	72
XA80/26	190	84	2900	75	100	80	93
XA100/20	285	50	2900	75	125	100	87
XA100/26	295	82	2900	110	125	100	117
XA125/20	360	46	2900	90	150	125	108
XA32/13	7.5	5.3	1450	0.55	50	32	28.5
XA32/16	9	8.9	1450	0.55	50	32	36
XA32/20	9	13	1450	1.1	50	32	42
XA32/26	11	22	1450	3	50	32	61
XA40/13	15	5.5	1450	0.55	65	40	31
XA40/16	15	8	1450	1.1	65	40	37
XA40/20	15	13	1450	1.5	65	40	45
XA40/26	16	22	1450	3	65	40	63
XA40/32	18	33	1450	5.5	65	40	97.8
XA50/13	30	5.2	1450	1.1	65	50	35
XA50/16	32	9.2	1450	1.5	65	50	39
XA50/20	30	13	1450	2.2	65	50	47
XA50/26	32	21.5	1450	5.5	65	50	65
XA50/32	40	31.5	1450	11	65	50	103
XA65/13	50	5.2	1450	1.5	80	65	40
XA65/16	50	8.6	1450	2.2	80	65	44
XA65/20	55	13	1450	4	80	65	54
XA65/26	60	21.5	1450	7.5	80	65	83
XA65/32	65	33	1450	15	80	65	112
XA80/16	80	8.1	1450	3	100	80	56
XA80/20	95	13	1450	7.5	100	80	72
XA80/26	95	20.5	1450	11	100	80	93
XA80/32	100	31	1450	18.5	100	80	122
XA80/40	100	51	1450	30	100	80	164
XA100/20	142	12	1450	11	125	100	87
XA100/26	148	21	1450	15	125	100	108
XA100/32	135	33	1450	22	125	100	137
XA100/40	150	52	1450	45	125	100	177
XA125/20	190	12.5	1450	11	150	125	108
XA125/26	240	21	1450	22	150	125	117
XA125/32	200	32	1450	30	150	125	166
XA125/40	245	52	1450	75	150	125	184
XA150/20	360	12.2	1450	18.5	200	150	159
XA150/26	324	21	1450	30	200	150	151
XA150/32	370	33	1450	55	200	150	173
XA150/40	385	50	1450	90	200	150	213
XA200/32	630	27	1450	75	250	200	255
XA200/40	650	48.5	1450	132	250	200	299
XA250/32	840	29	1480	90	300	250	315
XA250/40	900	48.5	1480	160	300	250	394

*********************************************************************************************
