Compact Design Pulley Wire Drawing Machine Straight-Line Dry Type Oto Type Wire Drawing Machine

Product Description

Product Description

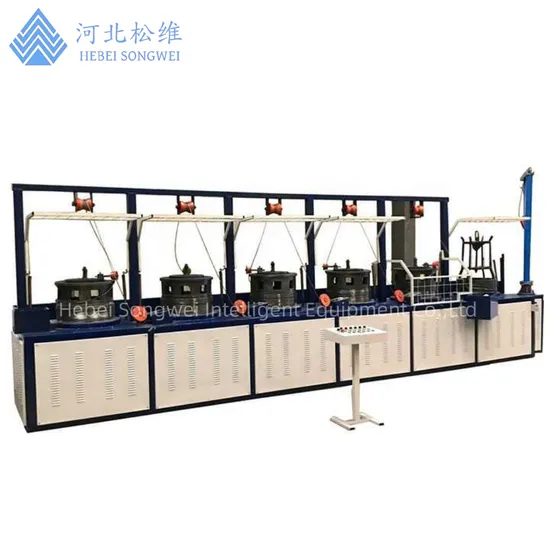

Automatic pulley wire drawing machine
(LW560-6D)
(1)⇒Introduction
(1)The pulley wire drawing machine is composed of a drum, a mold box, a track wheel frame, a wire lifting frame, and an electrical control system.
(2)This model of wire drawing machine is mainly used for drawing high carbon steel wires, as well as low and medium carbon steel wires and non-ferrous metal wires. It is suitable for batch drawing processing of standard components such as nails, wire rods, steel wire ropes, galvanized iron wires, etc.
(2)⇒Production Process
Low carbon steel wire rod→High pay-off frame→Mechanical derusting→Pulley wire drawing machine → Wire take-up machine. For your next process, you can use the wire to make nails or other products.
Advantages:
1) High Speed
2) Low Noise
3) Less Impact
4) Good Continuity
5) Main components are made of quality steel, such as shaft, cams and gear.
6) It adopts plunger and oil pipe lubricating structure.
7) It can make the high quality of asphalt felt nails and other special nails used for high speed coil nail welder and coil nailers.
Mechanical Specifications

Model	Unit	LW450-6D	LW560-6D
Drum diameter	mm	450	560
Drawing dies	Times	6	6
Inlet wire diameter	mm	3.5-4.0	5.5-6.5
Outlet wire diameter	mm	1.6-1.8	2.5-3.0
Drawing speed	m/min	200-280	150-230
Total reduction rate	%	77.9	78
Motor power	kw	11/15	15/18.5
Note:We can design the scheme for you according to your requirements.

Machine Advantages
Wire Pay-off system
The wire pay-off system already includes a heavy-duty pay-off reel capable of carrying 2 tons of wire, and is also equipped with a wire shelling device.
Mold box
Our mold box can be designed according to the customer's mold size, making it convenient to use.
Drum
The drum is sprayed with cast steel, which can effectively prevent grooves caused by long-term use of the drum and extend the mechanical service life.
Wire take-up drum
The machinery adopts a vertical type take-up drum, and we can also design independent wire take-up systems: trunk wire take-up machines and spool take-up machines.
Vulnerable parts
We use special alloy steel materials for vulnerable parts in machinery. Ensure long-term operation of the machinery.
Wire crane
The machinery is equipped with a wire crane, which can carry a weight of up to 350 kg of wire, making it easy to remove and package the completed wire. Save time.

Small water tank
The last drum of the machine is equipped with a small water tank, which can clean the wire and facilitate the subsequent process.
Motor
The motor adopts a well-known Chinese brand with guaranteed quality, and we can also use the motor brand specified by the customer.

Inverter
Each drum is equipped with a frequency converter, which allows customers to adjust the mechanical speed, saving time and electricity.
Control box
The mechanical control is simple and flexible, and the control box can be placed in any convenient position.
Packaging & Shipping
Package.The main machinery is packed with plastic film and fixed in the container with steel wire. Small mechanical parts are packed in wooden cases.
Shipment.We can book containers for customers according to the mechanical size. If we need LCL, we can arrange to pack and send them to the designated place.
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
