Conveyor Belt New Belt Ply Separator Splitting Machine

Product Description

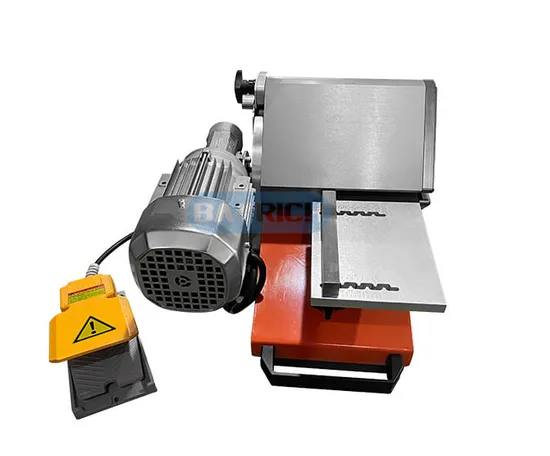

The PN130 Ply Separator is a tool used to cut between the plies of the conveyor belt during belt splice preparation. This is helpful when preparing finger-over-finger splices and stepped splices, and for recessing mechanical fasteners.
★Features
1.Split PVC,PU Belt up to 1-10mm .
2.High precision separation and easy work with scale;can separate films frim belt accurate to 0.05mm
3.With Scale to adjust the splitting depth max.130mm
4.hard alloy steel knife and one complete aluminum body(90% pure,others are 50~60%) Made by CNC production,more durable and sharper.
5.Work more safe with cover
6.Easy control start/stop with pedal switch.
7.Positive/Inversion control box
8.No Belt Width limited,belts can be divided into two layers,three layers etc.
9.can splite side of the belt for side seam preparation -new function.
★Technical Datasheet

Model	PN130
Splitting Depth	130mm
Belt Thickness Above Cut	8mm
Belt Thickness Below Cut	5mm
Max.Belt Thickness	10mm
N.W.	52KG
Machine Dimension	520*420*320mm
Voltage	3PH380V
Power	370W
Packing Size	700*400*420mm
G.W.	62KG

★Machine Detail

Aluminum Alloy Body	Aluminum Alloy Body
Depth Tick Marks	Thickness Tick Marks
High Precision Steel Blade	Aluminum Alloy Body

★Main Components

Foot Switch---CHNT	Motor - BONFIGLIOLI (Germany)

★Optional Accessories

Step Cutter	Machine Stand
