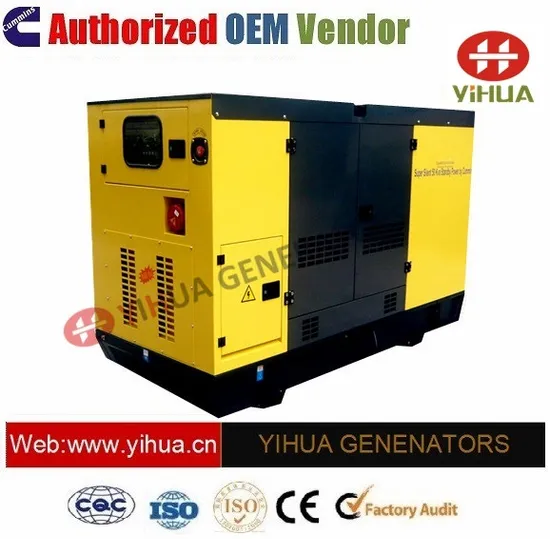

![37.5kVA Electric Generator with Cummins Diesel Engine[20171017a′]](enimg/18/181611.webp "37.5kVA Electric Generator with Cummins Diesel Engine[20171017a′]")
37.5kVA Electric Generator with Cummins Diesel Engine[20171017a′]
| US$4,685.00-5,130.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YIHUA CUMMINS
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Low Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Engine Model
4bt3.9-G1
Certificate
Ce/ISO/SGS/Soncap/Saso
Voltage
220V/127V 380V/220V 400V/230V 415V/240V 480V/277V
Frequency
50Hz
Governor Type
Elec.
Rated Power/Standby Power
37.5va/30kw / 41.3va/33kw
Alternator Mounted
Yhg-30kw
Alternator Option
Stamford, Leroysomer, Marathon
Controller
Smartgen, Deepsea, Comap, Datakom, Harsen, etc
Color Available
White, Blue, Red, Yellow and Customized Color
Transport Package
Strengthen Packing/Compact Packing
Specification
2200*950*1200(mm)
Trademark
YH or Authorized OEM brand optional
Origin
Ninede, China
HS Code
8502110000
Production Capacity
1000
Product Description
Power coverage from 16kw~200kw.
Prime products are 4B,6B,6C,6L series diesel engine Gen-set.
Globally uniform quality standard, compact structure ,reliable capability, highly durability, safety and emission.
Model: GF: Open type &GFS: Soundproof /Silent/Supper silent type
Engine: DCEC Cummins
Speed: 1500/1800rpm
Alternator: Stamford /Leroysomer /Marathon/ABB/YIHUA YHG IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea/Comap/Smartgen/DKG/Others
ATS System: Smartgen/ABB/SOCOMIC /Others
Silent&Supper silent Gen-set Sound level: 63-75db(at 7m side)
Payment terms:T/T,L/C,Western Union, Paypal etc.
Production cycle & delivery time:Within 30 days upon downpayment receiving.
-GENERATOR DATA-
| Generator set Techinical specification | ||||||||||
| generator set performance | Engine performance | Dim.L*W*H | ||||||||
| Genset model | Prime power | Standby power | Fre. | Model | Power | Full load | Open type | Weight | ||
| Fuel Com. | ||||||||||
| KW | KVA | KW | KVA | HZ | KW | (L) | (mm) | (kg) | ||
| GF/GFS-C16KW | 16 | 20 | 26 | 32.5 | 50 | 4B3.9-G1/G2 | 24 | 5 | 1700*750*1150 | 850 |
| GF/GFS-C20KW | 20 | 25 | 26 | 32.5 | 50 | 4B3.9-G1/G2 | 24 | 6 | 1700*750*1150 | 850 |
| GF/GFS-C30KW | 30 | 37.5 | 33 | 41.3 | 50 | 4BT3.9-G1/G2 | 36 | 8 | 1820*760*1150 | 900 |
| GF/GFS-C34KW | 34 | 42.5 | 37.4 | 46.8 | 50 | 4BT3.9-G1/G2 | 36 | 8 | 1820*760*1150 | 950 |
| GF/GFS-C40KW | 40 | 50 | 44 | 55 | 50 | 4BTA3.9-G2 | 50 | 9.8 | 1950*830*1150 | 1050 |
| GF/GFS-C45KW | 45 | 56.25 | 49.5 | 61.9 | 50 | 4BTA3.9-G2 | 50 | 13 | 1950*830*1150 | 1070 |
| GF/GFS-C58KW | 58 | 72.5 | 63.8 | 79.8 | 50 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1350 | 1120 |
| GF/GFS-C68KW | 68 | 85 | 74.8 | 93.6 | 50 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1350 | 1120 |
| GF/GFS-C80KW | 80 | 100 | 88 | 110 | 50 | 6BT5.9-G1/G2 | 86-92 | 23 | 2150*880*1400 | 1120 |
| GF/GFS-C90KW | 91 | 113.75 | 100.1 | 125.1 | 50 | 6BTA5.9-G2 | 110 | 23 | 2350*950*1360 | 1200 |
| GF/GFS-C100KW | 100 | 125 | 110 | 137.5 | 50 | 6BTA5.9-G2 | 110 | 23 | 2350*950*1360 | 1235 |
| GF/GFS-C110KW | 110 | 137.5 | 121 | 151.3 | 50 | 6BTAA5.9-G2 | 120 | 26 | 2350*950*1360 | 1400 |
| GF/GFS-C128KW | 128 | 160 | 140.8 | 176 | 50 | 6CTA5.9-G2 | 163 | 33.9 | 2470*950*1430 | 1900 |
| GF/GFS-C144KW | 144 | 180 | 158.4 | 198 | 50 | 6CTA5.9-G2 | 163 | 35.1 | 2470*950*1430 | 1900 |
| GF/GFS-C150KW | 150 | 187.5 | 165 | 206.3 | 50 | 6CTA5.9-G2 | 163 | 35.1 | 2470*950*1430 | 2000 |
| GF/GFS-C160KW | 160 | 200 | 176 | 220 | 50 | 6CTAA5.9-G2 | 183 | 38.7 | 2600*980*1450 | 2300 |
| GF/GFS-C180KW | 180 | 225 | 198 | 247.5 | 50 | 6LTAA8.9-G2 | 220 | 38.7 | 2600*1000*1450 | 2400 |
| GF/GFS-C200KW | 200 | 250 | 220 | 275 | 50 | 6LTAA8.9-G2 | 220 | 41.6 | 2600*1000*1500 | 2500 |
| GF/GFS-C20KW | 20 | 25 | 26 | 32.5 | 60 | 4B3.9-G1/G2 | 27 | 5 | 1700*750*1230 | 850 |
| GF/GFS-C22KW | 22 | 27.5 | 26 | 32.5 | 60 | 4B3.9-G1/G2 | 27 | 6 | 1700*750*1230 | 850 |
| GF/GFS-C30KW | 30 | 37.5 | 33 | 41.3 | 60 | 4BT3.9-G1/G2 | 40 | 8 | 1820*760*1240 | 900 |
| GF/GFS-C34KW | 34 | 42.5 | 37.4 | 46.8 | 60 | 4BT3.9-G1/G2 | 40 | 8 | 1820*760*1240 | 950 |
| GF/GFS-C48KW | 48 | 60 | 52.8 | 66 | 60 | 4BTA3.9-G2 | 60 | 9.8 | 1950*830*1270 | 1050 |
| GF/GFS-C55KW | 55 | 68.75 | 60.5 | 75.6 | 60 | 4BTA3.9-G2 | 60 | 13 | 1950*830*1270 | 1070 |
| GF/GFS-C68KW | 68 | 85 | 74.8 | 93.5 | 60 | 6BT5.9-G1/G2 | 92-102 | 23 | 2150*880*1400 | 1120 |
| GF/GFS-C80KW | 80 | 100 | 88 | 110 | 60 | 6BT5.9-G1/G2 | 92-102 | 23 | 2150*880*1400 | 1120 |
| GF/GFS-C90KW | 90 | 112.5 | 99 | 123.8 | 60 | 6BT5.9-G1/G2 | 92-102 | 23 | 2150*880*1400 | 1120 |
| GF/GFS-C100KW | 100 | 125 | 110 | 137.5 | 60 | 6BTA5.9-G2 | 120 | 23 | 2350*950*1360 | 1200 |
| GF/GFS-C110KW | 110 | 137.5 | 121 | 151.3 | 60 | 6BTA5.9-G2 | 120 | 23 | 2350*950*1360 | 1235 |
| GF/GFS-C120KW | 120 | 150 | 132 | 165 | 60 | 6BTAA5.9-G2 | 132 | 26 | 2350*950*1360 | 1400 |
| GF/GFS-C144KW | 144 | 180 | 158.4 | 198 | 60 | 6CTA5.9-G2 | 180 | 33.9 | 2470*950*1430 | 1900 |
| GF/GFS-C150KW | 150 | 187.5 | 165 | 206.3 | 60 | 6CTA5.9-G2 | 180 | 35.1 | 2470*950*1430 | 1900 |
| GF/GFS-C160KW | 160 | 200 | 176 | 220 | 60 | 6CTA5.9-G2 | 180 | 35.1 | 2470*950*1430 | 2000 |
| GF/GFS-C180KW | 180 | 225 | 198 | 247.5 | 60 | 6CTAA5.9-G2 | 201 | 38.7 | 2600*980*1450 | 2300 |
| GF/GFS-C200KW | 200 | 250 | 220 | 275 | 60 | 6LTAA8.9-G2 | 240 | 38.7 | 2600*1000*1450 | 2400 |
| GF/GFS-C220KW | 220 | 275 | 242 | 302.5 | 60 | 6LTAA8.9-G2 | 240 | 38.7 | 2600*1000*1500 | 2500 |
Any more information of our genset you can contact
You can also scan QR-code below to save us in easy way:
