Press Brake

Product Description

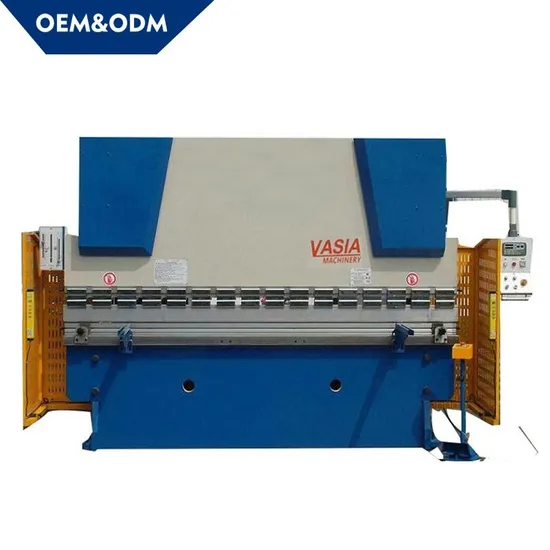

Press Brake
1.This hydraulic press brake is of total European design: streamlined looking monoblock.
The frame of this machine is steel welded construction, and stress is eliminated by vibration,
so it is with high strength, stable performance, easy operation and convenient maintenance.
2.VASIA press brake is incorporating with ESTUN E21,ESTUN E22,TP10
Holland DELEM DA41,DA53,DA58,DA66 control systems ,
which offers not only failsafe operation of the vital operations, but also provides the operator considerable assistance in carrying out
he entire bending process.
3.This machine adopts steel torsion bar synchronized structure or electric hydraulic synchronized structure
,which can guarantee the higher precision and faster working efficiency.
4.Torsion bar structure is with axis X and axis Y controls ,but electric hydraulic synchronized structure can be 4+1 axis ,
or additional R and Z axis .
5.Our press brake machines are with integrated hydraulic valves, which working is more reliable and easy access to maintenance.
6.All the main parts of the machine are from well-known companies,such as Rexroth of Germany,Japan Valqua oil seals;
the electrical system is Siemens from Germany or from France, all of which are the world famous brands with good
quality and high performance.
7.Our hydraulic press brake machines have the protective fence and safety interlock to ensure the operator's safety. Besides ,
the DSP laser protection is as option according to clients.
8.This machine is certified by the European Union TUV certification.
Optional Specifications:

No	Model	Pressure KN	Bending Length (mm)	Columns Distance (mm)	Open Height (mm)	Throat Depth (mm)	Slide Stroke (mm)	Motor Power (kw)	Machine Size (mm)
1	40T/2500	400	2500	1900	210	200	110	4	2600x1270x1980
2	63T/2500	630	2500	1900	235	250	120	5.5	2600x1360x2050
3	63T/3200	630	3200	2600	235	250	120	5.5	3300x1360x2050
4	80T/2500	800	2500	1900	320	320	150	7.5	2600x1400x2380
5	80T/3200	800	3200	2600	320	320	150	7.5	3300x1400x2380
6	80T/4000	800	4000	3100	320	320	150	7.5	4100x1400x2380
7	100T/2500	1000	2500	1900	330	320	150	7.5	2600x1400x2380
8	100T/3200	1000	3200	2600	330	320	150	7.5	3300x1400x2380
9	100T/4000	1000	4000	3100	330	320	150	7.5	4100x1400x2380
10	100T/5000	1000	5000	4100	330	320	150	7.5	5100x1400x2380
11	125T/2500	1250	2500	1900	330	320	150	7.5	2600x1400x2380
12	125T/3200	1250	3200	2600	330	320	150	7.5	3300x1400x2380
13	125T/4000	1250	4000	3100	330	320	150	7.5	4100x1400x2380
14	125T/5000	1250	5000	4100	330	320	150	7.5	5100x1400x2380
15	160T/2500	1600	2500	1900	400	320	200	11	2600x1550x2580
16	160T/3200	1600	3200	2600	400	320	200	11	3300x1550x2580
17	160T/4000	1600	4000	3100	400	320	200	11	4100x1550x2580
18	160T/5000	1600	5000	4100	400	320	200	11	5100x1550x2580
19	160T/6000	1600	6000	4800	400	320	200	11	6100x1550x2580
20	200T/2500	2000	2500	1900	435	320	200	15	2600x1650x2900
21	200T/3200	2000	3200	2600	435	320	200	15	3300x1650x2900
22	200T/4000	2000	4000	3100	435	320	200	15	4100x1650x2900
23	200T/5000	2000	5000	4100	435	320	200	15	5100x1650x2900
24	200T/6000	2000	6000	4800	435	320	200	15	6100x1650x2900
25	250T/2500	2500	2500	1900	435	320	200	18.5	2600x1750x3070
26	250T/3200	2500	3200	2600	435	320	200	18.5	3300x1750x3070
27	250T/4000	2500	4000	3100	435	320	200	18.5	4100x1750x3070
28	250T/5000	2500	5000	4100	435	320	200	18.5	5100x1750x3070
29	250T/6000	2500	6000	4800	435	320	200	18.5	6100x1750x3070
30	300T/3200	3000	3200	2600	435	350	200	22	3300x1850x3285
31	300T/4000	3000	4000	3200	435	350	200	22	4350X1900X3400
32	300T/5000	3000	5000	4000	435	350	200	22	5200X1950X3480
33	300T/6000	3000	6000	4800	450	350	220	22	6100X2050X3500
34	400T/5000	4000	5000	4000	450	350	250	30	5200X2100X3550
35	400T/6000	4000	6000	4800	450	350	250	37	6200X2100X3550
36	500T/6000	5000	6000	4800	450	350	250	37	6250X2200X3580
37	600T/6000	6000	6000	4800	480	400	280	45	6300X2250X3600
38	1000T/6000	10000	6000	4800	500	400	300	75	6300X2400X3800
