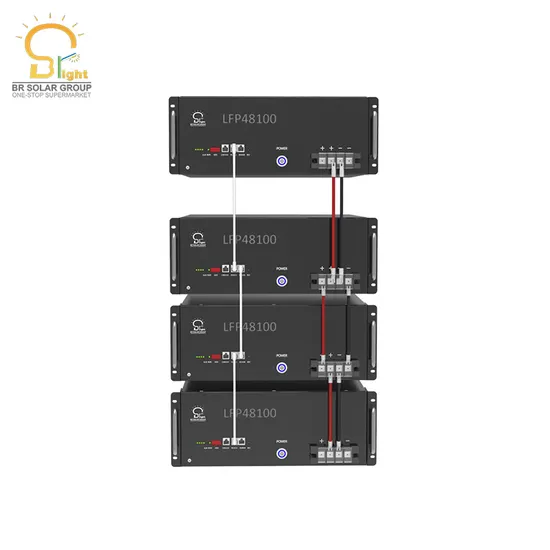

48V 200ah LiFePO4 Lithium Iron Phosphate Battery 48V Lithium Battery
| US$490.00-610.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BR-LFP-48300 Lithium Battery
Rechargeable
Yes
Size
Medium
Model No.
LFP-48300
Installation
Fixed
Battery Size
453*433*177mm
Warranty
10 Years
Certification
CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001
Nominal Capacity
4.8/9.6/14.4/19.2kwh
Cycle Life
More Than 6000 Times
Material
LiFePO4
Battery Cell
3.2V Cell
Inverter Matched
Solax, Deye, Goodwe, Growatt, Sofar, Gmde
Standard Voltagee
51.2V /48V
Usage
Solar Energy System, Battery Back up, UPS Backup
Display
LED Display
Transport Package
Carton with Pallet
Specification
453*433*177mm
Trademark
BR SOLAR
Origin
Jiangsu, China(Mainland)
HS Code
8507600090
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
800.00cm * 500.00cm * 300.00cm
Package Gross Weight
150.000kg
Product Description
Specification
1.Size and Weight
| Product | Nominal Voltage | Nominal Capacity | Dimension | Weight |
| LFP-48100 | DC48V | 100Ah | 453*433*177mm | ≈48kg |
| Item | Parameter value |
| Nominal Voltage(v) | 48 |
| Work Voltage Range(v) | 44.8-57.6 |
| Nominal Capacity(Ah) | 100 |
| Nominal Energy(kWh) | 4.8 |
| Max.Power Charge/Discharge Current(A) | 50 |
| Charge voltage (Vdc) | 58.4 |
Interface Definition
This section elaborates the interface functions of the front interface of the device
| Item | Name | Defintion |
| 1 | SOC | The number of green lights shows the remaining power.Table 2-3for details. |
| 2 | ALM | Red light flashing when an alarm occurs, red light always on during protection status.After the condition of trigger protection isrelieved, it can be automatically |
| 3 | RUN | Green light flashing during standby and charging mode. Greenlight always on when disc |
| 4 | ADD | DIP switch |
| 5 | CAN | Communication cascade port, support CAN communication |
| 6 | SA485 | Communication cascade port, support 485 communication |
| 7 | RS485 | Communication cascade port, support 485 communication |
| 8 | Res | Reset switch |
| 9 | power | power switch |
| 10 | Positive socket | Battery output positive or parallel positive lin |
| 11 | Negative socket | Battery output negative or parallel negative lin |
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance andlongcycle life;
Battery management system(BMS)has protection functions includingover-dis-charge, over-charge, over-current and high/low temperature;
Small size and light weight, comfortable for installation and maintenance.
Packing & Shipping
Project of BR SOLAR Our Projects are applied all around the World We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.
Certificates Of BR SOLAR
Payment Terms and Delivery
| Payment Terms | T/T | EXW | 30% In Advance, 70% Balance Paid Before Delivery |
| FOB | |||
| CFR/C&F | 30% In Advance, 70% Against Copy Of B/L | ||
| CIF | |||
| L/C | Total Amount Above USD100,000, We Accept L/C At Sight | ||
| West Union | Total Amount Less Than USD1,000 | ||
| PayPal | |||
| Delivery Time | 15-20 Working Days After Receiving Down Payment | ||
