Holiday Special Offers Non Slip FRP GRP Gratings Fiber Glass Grills for Humid Environment From Zdprotech

Product Description

Product Description

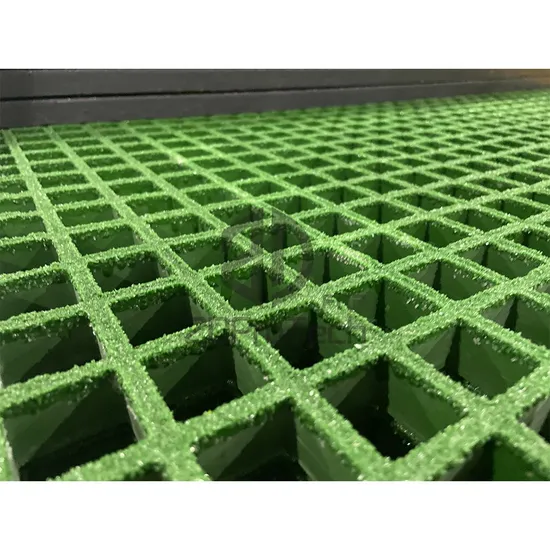

FRP/GRP Grating (Fiberglass Reinforced Plastic) is also known as glass-reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That's why you frequently see FRP used around saltwater for walkways, docks, and handrails.
Work with our fiberglass grating service to ensure your flooring, handrails, walls, and decks both indoors and out are fully protected against a wide range of uses and environments.
FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it.
The price for FRP Grating is also often lower than steel or aluminum prices required to provide the same protection because FRP can perform at a much lower weight requirement.
Application Scenario
Product Parameters
Datasheet

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
38*38	13	6.0/5.0	1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010	6	78%
	14	6.0/5.0	1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010	6.5	78%
	20	6.0/5.0	1220*3660,1220*4000,915*3050	9.8	65%
	25	6.3/4.8,6.5/5.0	1220*3660,1220*4000,915*3050	12,12.3	68%
	30	6.5/5.0	1220*3660,1220*2440,915*3050	14.6	68%
	38	7.0/5.0	1220*3660,1220*2440,915*3050	21.5	68%
	50	8.0/6.0,11.0/9.0	1220*3660,1220*2440,915*3050	30,42	56%
	60	10.5/9.0	1220*3660,1220*4000,915*3050	50.4	54%
	70	11.5/9.0	1230*4010	58.8	49%
40*40	25	5.0/3.8,6.0/4.0, 7.0/5.0	1220*3660,1220*4025,1000*4040	9.5,11.5,12.3	67%
	30	6.0/4.0,7.0/5.0	1220*3660,1220*4025,1000*4000	15,14.6	67%
	38	6.0/4.0,7.0/5.0	1220*3660,1000*4000,1220*4025,1220*2440	20,19.2	67%
	40	7.0/5.0	1220*3660,1000*4000,1220*4025,1220*2440	19.5	67%
43*43	25	5.0/3.8	1220*4000,1220*4054,1220*3660, 1003*4054	9
50*50	15	6.0/5.0	1220*3660,1220*2440,1220*4000	5.9	82%
	25	7.0/6.0	1220*3660,1220*2440,915*3050	11.5	80%
	40	6.8/5.0	1778*4531,1225*4531	18.2	78%
	50	8.0/6.0	1220*3660,1220*2440,915*3050	23	78%
	63	8.3/6.0	1220*3660,1220*2440,1220*4000, 915*3050	28.8	78%
52*52	50	5.0/5.0	1220*4000	21
79*79	23	6.5/5.0	405*3569	5.7	80%
83*83	25	7.0/5.0	1007*4007,1007*3007	5.8	84%
	38	7.0/5.0	1007*4007,1007*3007	9.5	84%
	40	7.0/5.0	1007*4007,1007*3007	10.7	84%

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
13*13/ 40*40	25	6.5/4.5/5.0	1247*4047,1007*3007,1007*4047	17.8	30%
	30	6.5/4.5/5.0	1247*4047,1007*3007,1007*4047, 1527*4047	18.8	30%
	30	7.5/4.5/6.0	1220*3660,1220*2440,915*3050	22	30%
	38	7.0/5.0	1247*4047,1007*3007,1007*4047, 1527*4047	23.8	30%
19*19/ 38*38	25	6.0/4.0,6.5/5.0	1220*3660,1220*2440,1220*4000, 915*3050	13,16.8	30%
	30	6.0/4.0,6.5/5.0	1220*3660,1220*2440,1220*4000, 915*3050	17,19.1	30%
	38	6.5/5.0,7.0/5.0	1220*3660,1220*2440,1220*4000, 915*3050	24	30%
20*20/ 40*40	14	6.5/5.0	1247*4047,1007*3007	5.9	82%
	22	6.5/5.0	1247*4047,1007*3007,1527*4047	11.5	80%
	25	6.5/5.0	1247*4047	18.2	78%
	30	7.0/5.0	1007*4047,1007*3007,1247*4047	23	78%
	40	7.0/5.0	1007*4047,1007*3007,1247*4047	28.8	78%
25*25/ 50*50	25	6.0/4.0	1220*3660,1220*2440	13
	30	6.0/4.0	1220*3660,1220*2440	17
	50	8.0/6.0	1530*4020	28.5	55%
26*26/ 52*52	30	7.0/6.0	1530*4000	15.3	60%
	38	6.0/5.0	1150*4011	19.5	60%

Mesh size (mm)	Thickness (mm)	Bar thickness (Top/ Bottom mm)	Panel size available (mm)	Weight (kg/m2)	Open Rate (%)
25*50	38	11.9/9.0 heavy duty	1220*3660	30.7	48%
	50	12.0/9.0 heavy duty	1220*3660,1220*1835	41.8	48%
25*152	38	8.0/6.5	1220*3660,1220*2440,915*3050	22.5	63%
35*100	38	8.0/6.5	1507*4300,2400*3000	2	63%
60*220	40	6.3/5.0	1788*2238	8.8	67%
25*152	38 stair treads	7.0/5.0	565*3050	23.1	62%
38*152	38 stair treads	7.0/5.0	580*3660,610*3660	17	65%
25*100	25	7.0/5.5	1007*3007,1007*4007	13	67%
	25	7.0/5.0	1220*3660,915*3050	13.83	67%
	25	9.5/8.0	1220*3660,1220*2440,915*3050	19.5	52%
	30	7.0/5.5	1007*3007	15.6	67%
	38	8.0/6.0	1220*3660	22.5	62%
	38	15.0/5.0	1220*3660	21	62%
38*100	38	8.0/6.0	1220*3660,1220*2440,915*3050	16.4	65%
	50	8.0/5.0	1220*3660	15.3	62%
38*152	38	8.0/6.0	1220*3660,1220*2440,915*3050	15.92	67%
	38	15.0/8.0	585*3660,585*4100	18.6	62%

Concentrated line load-deflection in mm
38*38*25

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
450	0.559	1.146	2.15	3.073	4.115	4.75	3910
600	0.864	1.702	3.505	5.156	6.706	8.179	2924
900	2.896	5.918	12.116	18.44	---	---	1948
1200	5.715	11.63	---	---	---	---	1461

38*38*30

Span\Deflection	KG/M²						Load limit
	75	150	300	450	750	1500
300	<0.254	<0.254	0.254	0.508	0.762	1.524	9923.4
450	0.254	0.508	1.016	1.524	2.54	---	4827.6
600	0.508	1.27	2.286	3.556	5.842	---	4112.4
750	1.27	2.54	4.826	7.366	12.446	---	3173.7
900	1.778	3.81	7.62	11.43	---	---	2637.3

38*38*38

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
300	0.279	0.356	0.483	0.61	0.76	0.889	17116
600	0.356	0.66	1.245	1.85	2.46	3.073	8718
900	0.864	1.803	3.368	5.563	7.41	9.29	5817
1200	2.261	4.749	9.677	14.63	19.58	---	3755

50*50*50

Span\Deflection	KG/M²						Load limit
	75	150	300	450	600	750
300	0.279	0.305	0.406	0.483	0.635	1.041	21727
600	0.356	0.508	0.813	1.128	1.735	3.327	11713
900	0.508	1.118	2.235	3.2	5.156	10.058	7780
1200	0.914	1.93	3.937	5.918	9.957	---	5834

For more dimensions, Please contact us. Certifications
Our Advantages
Packaging & Shipping
Company Profile
Hebei Zhaoduan Technology Co., Ltd(ZDProTech) always regards product quality as the foundation of enterprise development. Over the years, our company has carried out scientific and standardized management in strict accordance with the modern enterprise model. According to the customer's feedback and based on the global market we have set up a series of services and tactics. Based on science and technology, we have innovated varied products and achieved domestic and worldwide fame. The company has perfect testing equipment, strong technical support, providing customers with quality services. Our products are sold all over the world, and deeply trusted by users!
The main products include FRP grating, SMC water tank, BMC manhole cover, FRP profiles, FRP vessels, pipes, etc.
Our customer service tenet is to continuously meet the needs of customers, provide the best services and optimal solutions to customers which include the service idea of full decent cooperation. The ultimate purpose is to achieve a win-win situation.
ZDProTech will continue to work hard, forge ahead, and strive for every cooperation with our strict quality and thoughtful service.
FAQ
Q: Are you trading or a manufactory?
A: We are one of the largest FRP manufacturers in China, ZD group has two separate factories in two different places.
Q: Can your factory provide customized services?
A: Yes, we can. From small parts to large machines, we can provide most kinds of customized services.
Q: Can you do OEM?
A: Yes. we can offer OEM & ODM.
Q: l am interested in your products, can l have a sample for free?
A: We could offer that.
Q: What is your payment term?
A: Normally, 30% as the deposit first by T/T, the rest 70% will be paid before shipping by T/T.
Q: Can you provide some videos where we can see the line producing?
A: Definitely, yes!
Q: What about the delivery?
A:lt depends on the product performance and quantity you need. Because we are the expert, the production time won't take so long.
Q: How about after-sales service?
A: Most of the products have a 1-year free warranty, Lifetime technical service support. For more details, please contact us.
Q: How can l install the production line and get commissioning?
A: We may send our engineer for installation and commissioning, but the relevant cost will be paid by you.
For more questions, please do not hesitate to contact us!
