Progressive Puff Snacks Making Machine

Product Description

The main machine-Twin screw extruder

1. Series of Twin-screw Extruder mainly consist of feeding system, extruding system, cutting system,heating system, lubricating system and controlling system.
2. Automatic lubricating and forced cooling make sure that extruder performs safely and extends using life.
3. Feeding system,extruding system and cutting system all adopt frequency conversion timing to gain powerful drive, stable perform, and electricity saving.
4. Screws are made of alloy and processed bu special technique to possess high intensity, abrasion resistant resistant and longer using life.
5. By means of designing different structures and slenderness ratios according to needs of products, screw extruding system can meet different technology demands.
6.According Twin-screw extruder machine, we develop some processing line:Puff snacks,core filling Processing Line.
Corn Flakes,Breakfast Cereals Processing Line,Crispy Chips,Sala,Bugles Processing Line , Bread Crumb Processing Line.etc.

The main processing line

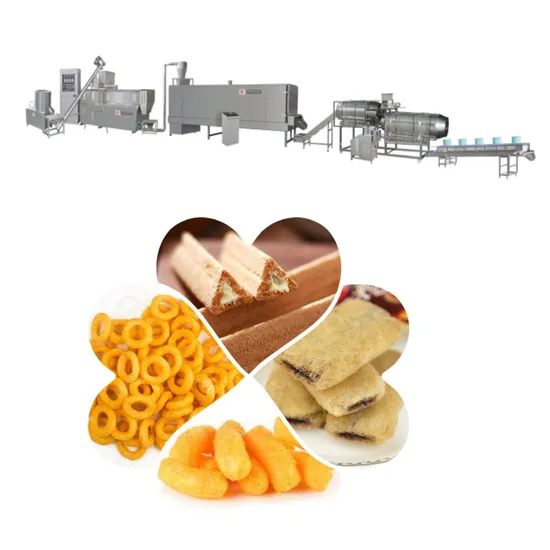

Core filling, inflating snacks Processing line
1. Raw materials: corn flour, wheat flour, rice flour, etc. 2. Shape: By changing the molds and process technology, this line can produce different shapes of puff snacks, like ring, stick, ball, etc. We can provide you with molds. 3. Flow Chart: Mixer→ Screw Conveyor→ Twin Screw Extruder→ Air Conveyor→ Dryer→ Hoister→ Flavoring Roller→ Cooling Conveyor.
4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
5. Capacity: 100-150kg/h, 200-250kg/h, 450-500kg/h.
Corn Flakes,Breakfast Cereals Processing Line
Corn flakes,Breakfast Cereals are kind of breakfast with high nutritional value.They usually ues corn powder and other cereals as main raw materials, through mixing, extruding,flaking,drying,baking,coating and cooling,to get crispy flakes.It always service as breakfast cereals mixed with milk or coffee.But it can also be kind of leisure snacks.This process line can also make other shapes of cereals such as rings,balls,chocos,curls etc. The capicity has 150-200kg/h, 250-300kg/h.
Crispy chips, Sala,Bugles Processing line
This process line uses double screw extruding technique to replace the traditional steam boiling process. It includes mixing,cooking,extruding and shaping process,no needing boiler,with simple process,high efficiency and little pollution.The raw materials can be rice powder, corn powder,wheat flour individually or their mixture. only by changing the moulds, shaping or cutting machine, the shapes can be various;likes sticks,square sheet rib chips,diamond chips,wavy chips,pillow shapes and bugles etc.The capicity has 120~150kg/h, 200kg/h.
Technical Parameter

Model	Installed power	Power consumption	Output(kg/hr)	Size(mm)
SLG65	150kw	110kw	100~150	20000*1200*2200
SLG70	160kw	120kw	200~250	23000*1500*2200
SLG85	190kw	140kw	400~500	25000*3500*4000

MOQ	1 sets
Supply Ability	25 sets per month
Shipping Port	Qingdao port,Shandong,China
Packing Details	Fumigation-free Wooden case outside,stretch film inner
Relevant spare parts	Free, delivery with processing line
Guarantee	Within 12 months
Oversea services	Provide installation and commissioning after machine arrived your factory
Payment terms	30% T/T as down payment, 70% by irrevocable L/C at sight or by T/T before delivery the products

Delivery time	30 days after receipt the deposit
Pre-shipment	when it finished, we will invite you to our factory to inspect machines

Food symbol
Machine Picture
Equipment Strength
Work shop
Pre-sales Service
1. We have 15 years of experience in mechanical design and customization, and we can design layout drawings for you according to output, factory size and structure.
2. Customers can come to inspect our factory and test the machine. If it is not convenient for you to come, we can send you a video of the test machine or live the test machine process.
3. Provide free puff snacks samples.
4. Inspect the machine before leaving the factory.
After-sales service
1. Provide one year warranty. 2. Oversea installation and commissioning equipment. Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working, how to clean the extruder, how to change the screw, how to change barrel etc.
3. Provide technology support with you forever, if you have any questions, we provide 24-hour online guidance service. 4. Provide the best price when you need accessories.
Company qualification
If you have any needs,please feel free to contact me.
