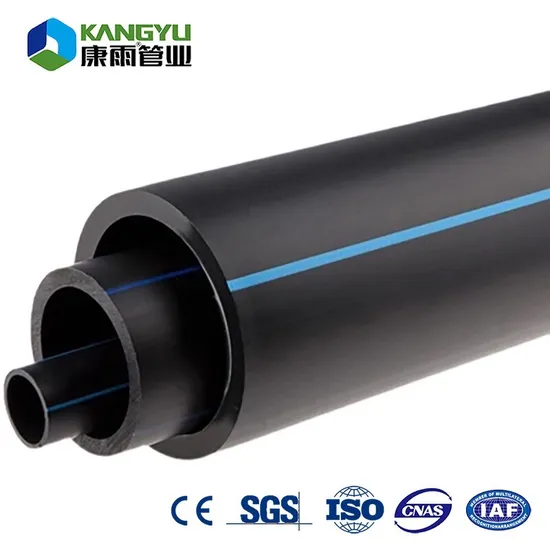

PE Black Water Pipe 20mm-1600mm HDPE Irrigation Pipe

Product Description

Product Description
High-Density Polyethylene (HDPE) pipes have emerged as a versatile and reliable solution for a wide range of applications in modern infrastructure. Renowned for their exceptional durability, corrosion resistance, and flexibility, HDPE pipes have become the preferred choice for various industries, including water supply, gas distribution, industrial processes, and more.

Material	High-Density Polyethylene (PE100)
Specification	from DN20mm to DN1600mm
Pressure Rating	0.4Mpa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2.0Mpa, 2.5Mpa
Certification	CE, SGS, ISO, CNAS, IAF
Connection	Welding
Color	Black, blue, white or Customized

Product Parameters

Pressure Rating	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3.0	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49.0	61.2	76.2	94.1	117.6	-	-	-

Our Advantages
Durability: HDPE pipes are known for their exceptional durability, making them ideal for long-term applications. Their resistance to abrasion, corrosion, and chemicals ensures a prolonged service life, minimizing maintenance costs and disruptions.
Flexibility: The flexibility of HDPE pipes allows for easy installation around obstacles and in challenging terrains. This characteristic is particularly advantageous in projects that require adaptable solutions, ensuring efficient and cost-effective installations.Corrosion Resistance: Unlike traditional metal pipes, HDPE pipes are immune to corrosion, rust, and degradation caused by harsh environmental conditions. This resistance ensures a reliable and sustainable infrastructure system over time.Lightweight: HDPE pipes are significantly lighter than their metallic counterparts, making transportation, handling, and installation more convenient and cost-effective. The reduced weight does not compromise the structural integrity of the pipes, ensuring reliable performance.Leak-Free Joints: The heat-fused joints of HDPE pipes create a seamless, leak-free system. This welding technique not only enhances the overall integrity of the pipeline but also eliminates the risk of leaks, ensuring a safe and efficient fluid or gas transportation system.Versatility: HDPE pipes are suitable for a wide range of applications, including potable water distribution, wastewater management, industrial processes, and more. Their versatility makes them an excellent choice for diverse infrastructure projects.Material: The inherent toughness and resilience of our HDPE pipes are attributed to the top-tier raw materials we incorporate into our manufacturing processes. This not only enhances the overall performance of our pipes but also ensures they withstand the harshest environmental conditions without compromising structural integrity. Company Profile
Our History
Shandong Kangyu Pipe Industry Co., Ltd., founded in 2000, as a professional manufacturer and exporter specializing in the productions of PP-R, HDPE, PVC, PE-RT, PB plastic pipes, and fittings. Located in Linyi City, Shandong province, China, we are close to Qingdao port.
We devote ourselves continuously to international trade and supply pipeline dealers who come from all over the world with customized services.
Our Factory
In order to build a modern factory, we invest in a series of professional mechanical equipment. The annual output amounts to 30000 tons, which can fill up 3000 containers.
The excellent machinery and consummate management system can reduce cost, shorten delivery time and ensure the quality of every product.
Certifications
We have passed CE, SGS, ISO, CNAS, IAF certification and our products compound international standards
FAQ
Q1: May I get one sample before placing order?
A: Yes, Sample are available. For normal products, samples are for free and you just need to bear the freight; For those high value products, you just need to freight and certain product cost. When we both cooperate for some times or when you are our VIP customer, free sample will be offered when you need.
Q2: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.
Q3: How and when can I get my goods after payment?
A: For small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.) or by air. Usually it will cost 3-5days that you can get the goods after delivery. For large quantity products,shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on where the port is.
Q4: Is there any possible to use my appointed label or package?
A: Yes. If needed, we'd like to use label or package according to your requirement.
Q5: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q6: Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.
Q7: How can I get some samples?A: We are honored to offer you free samples, just need to pay the freight cost.
