Industrial-Grade Limestone and Raw Stone Ball Mill Solutions

Product Description

Product Description
Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. stands as a titan among global grinding equipment R&D and manufacturing giants. Boasting the most distinguished domestic grinding mill design team and cutting-edge process technology, we possess unparalleled production capabilities. Our company has developed a comprehensive mill experiment, testing, measurement, and service supply system. With our advanced technology, we offer an exceptional range of mills including ball, rod, cement, bearing, bushing, overflow, lattice, and air coal mills, embodying a pinnacle of engineering excellence.
The High Efficiency Limestone and Raw Stone Ball Mill Grinder is an innovative grinding powerhouse, transforming crushed materials into ultra-fine powder. This versatile series is engineered primarily for industrial and mining sectors, adept at handling ores like Gold, Copper, Lead, Manganese, Iron, Slag, Silver, and Aluminum, as well as Limestone and Gypsum Powder. It spans applications across metallurgy, construction, and chemical industries. The machine excels in both wet and dry milling, accommodating open circuit grinding and circular grinding with its power feeder. Its standout features include an intelligent design, adaptability to diverse raw materials, rapid operation, impressive crushing ratio, substantial capacity, and user-friendly functionality.
Wet Grinding Ball Mill Working Principle:
Harnessing the power of its electro motor, this sophisticated system rotates the cylinder through a reducer, elevating the internal steel balls and crushed ore to a strategic height. Under the dual forces of friction and eccentricity, the materials descend, succumbing to the relentless impact and grinding forces. The finely crushed ores exit the cylinder via the discharging section, proceeding to the spiral classifier for sorting. Coarse sand recycles back to the ball mill via the joint feeding machine for further refinement. The seamless operation is ensured as the feeding machine supplies materials continuously and evenly, directing them into the ball mill. This robust design allows the Chinaware ball mill to perform uninterrupted 24-hour cycles, epitomizing efficiency in powder grinding operations.
Characteristics
1. Enhanced Durability: Featuring a robust large ring gear, substantial side cover, and oversized bearings, this ball mill is engineered for longevity. The expansive gear hub ensures an extended service life, fortified by a high-frequency quenching heat treatment on the modulated surface. Similarly, the sprocket benefits from the same advanced heat treatment, ensuring unrivaled durability and performance.
2. Energy Efficiency Redefined: By replacing traditional slide bearings with cutting-edge ball bearings, frictional force is significantly minimized. This innovative design facilitates smoother starts and delivers remarkable energy savings of 10-15% compared to its predecessor, the conventional ball mill.
3. Increased Processing Capacity: With the incorporation of a discharge disc and grate plate typical of the standard mill, this advanced ball mill achieves over 20% more processing capacity than the energy-saving conical ball mill, ensuring superior productivity and performance.
4. Optimized Ore Processing: The low mud surface at the discharge port allows for rapid passage of mud, effectively curtailing excessive grinding of ore. This design innovation ensures efficient processing and higher quality output.
5. Versatile Ball Loading: Capable of handling a variety of ball sizes, this equipment ensures that small balls remain within the mill, promoting excellent working conditions and enhancing operational efficiency.
6. Simplified Installation: Provided with a sturdy support frame, this equipment offers clients a straightforward and hassle-free installation process at the plant site, ensuring convenience and ease.
7. Intelligent Protection System: Equipped with an advanced electronic control system, it safeguards against motor overcurrent, power failures, and imbalances in the three-phase power supply. This ensures the ball mill operates smoothly and reliably, providing users with a truly 'worry-free' experience.
Detailed Photos
Ball Mill Structure: Ingeniously designed with a comprehensive feeding system, an efficient discharging system, and a robust transmission system featuring a speed reducer, small transmission gear, electrical machinery, electric control, and more.

Product Parameters
At Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd., we pride ourselves on delivering unmatched quality and performance with our High Efficiency Limestone and Raw Stone Ball Mill Grinder. Our commitment to excellence ensures that only superior products reach the market, as we adhere to a strict policy where non-conforming products are never allowed to be sold. This dedication has allowed us to swiftly capture both domestic and international markets, with our products being highly regarded for their exceptional quality and reliable performance.

Drum Size	capacity(t/h)	rotation rate(rpm)	Ball Weigh(t)	kind of drive	Reduce	Power(Kw)
Φ1.5*5.7	33-6	27	11	margin	ZD40	130
Φ1.5*6.4	4-7	27	12	margin	ZD40	130
Φ1.83*7	8-13	23.9	21	margin	ZD60	245
Φ2.2*7	13-18	21.4	33	margin	ZD60	380
Φ2.2*7.5	14-19	21.4	35	margin	ZD60	380
Φ2.2*10	15-20	21.4	45	margin	ZD80	475
Φ2.4*8	18-27	20.4	41	margin	ZD80	475
Φ2.4*9	19-29	20.4	42	margin	ZD80	570
Φ2.4*10	20-32	20.4	52	margin	ZD80	630
Φ2.4*11	21-34	20.4	60	margin	ZD80	630
Φ2.4*13	23-36	20.4	65	margin	MBY710	800
Φ2.6*10	28-38	19.7	70	margin	MBY710	800
Φ2.6*13	30-40	19.7	78	margin	MBY800	1000
Φ2.8*13	32-42	19.7	78	margin	MBY800	1250
Φ3.0*9	32-42	18.14	83	margin	MBY710	1000
Φ3.0*11	35-48	18.14	100	margin	MBY800	1250
Φ3.0*13	36-50	18.14	102	margin	MBY900	1400
Φ3.2*4.5	30-50	18.7	45	margin	MBY710	800
Φ3.2*11	38-52	17.76	110	margin	JDX100	1600
Φ3.2*13	45-60	17.76	120	margin	JDX100	1600
Φ3.5*13	65-90	17.1	165	margin	MBY1100	2000
Φ3.6*4.5	90-136	17.8	58	margin	MBY800	1000
Φ3.6*9	20-45	16.9	70	margin	Synchronous motor:1600
Φ3.8*13	70-100	16.8	180	margin	DBS280	2500
Φ4.2*13	130-150	15.9	231	margin	DBS280	3550

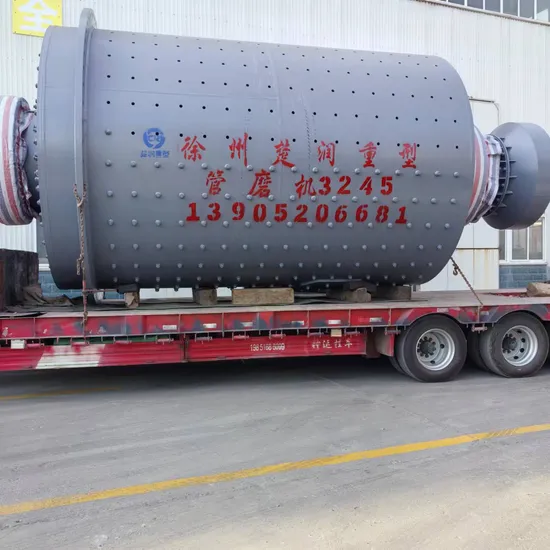

Packaging & Shipping
Typically, our machines are meticulously disassembled prior to shipment, ensuring secure and efficient transport. We employ a variety of sophisticated packaging methods tailored to the needs of each component, including: nude packing for robust handling, bundle packing for consolidated shipping, grass rope packing for eco-friendly options, waterproof packing for protection against moisture, and wooden pallets for stable stacking. Additionally, we offer wooden box or carton box packing for added safety, providing comprehensive packaging solutions that guarantee the pristine condition of your delivery. Our Advantages
Spanning an impressive 5000 square meters, Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. stands as a testament to our commitment to excellence and innovation.
Churun is proud to place the customer at the heart of all we do, offering tailored, comprehensive plant equipment configuration solutions. With nearly 300 state-of-the-art production lines serving global sectors such as cement, chemical, lithium mica, taconite, metallurgy, and solid waste disposal, we epitomize industry excellence. Our team of seasoned industry experts boasts deep design expertise and a wealth of experience, leading to remarkable market success and the trust and commendation of our clients. Looking ahead, Churun Heavy Industry is devoted to maintaining our core values of professionalism, integrity, and innovation, while continuously evolving to furnish users with highly efficient and dependable equipment and technical solutions.
Headquarters of the Esteemed Churun strategically located in the bustling city of Xuzhou, covering a vast expanse of 200,000 square meters. Our facility houses over 200 advanced large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly lines.
Today, our exceptional products enjoy widespread acclaim from customers both domestically and globally, having successfully made their mark in Indonesia, Russia, Cambodia, Vietnam, Laos, Africa, Uzbekistan, Romania, and many other countries and regions.

After Sales Service
Premier After-Sales Support: Experience an unparalleled customer service journey with us. Unlike many, we ensure continuous connectivity through our sales hotline, email, Skype, or MSN, guaranteeing a 30-minute response to your emails. Our commitment extends beyond the sale, fostering a service-led approach that prioritizes your satisfaction.
Pre-sale Services: Enthusiasm
Tailored Solutions: Allow us to craft a bespoke prophase plan, process flow design, and equipment manufacturing, all meticulously customized to meet your precise needs and requirements.
Sale Services: Committed Assistance
Expert Installation Support: Our skilled technicians will visit your job site to guide installation and adjustments, train operators, and collaborate with you to complete final checks and acceptance procedures seamlessly.

After-sale Services: Unwavering Loyalty
Building Lasting Partnerships: We are committed to nurturing a long-term relationship by conducting regular customer follow-ups and maintaining strong connections.
Dependable Assurance: Enjoy a one-year warranty ensuring your machinery operates smoothly. Our well-stocked inventory of spare parts is always ready for immediate dispatch, ensuring minimal downtime.
Visit Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd.: We warmly invite you to explore our company and workshop, eager to collaborate with you. Expect meticulously selected products at competitive prices, perfectly suited to your needs.
FAQ
1. Why we believe in Xuzhou Churun industries co., ltd:
1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate
4.We can make video call any time to show you our actual factory.
2.How long is the delivery time of your product?The delivery time is within 30 working days.3. Payment terms:
A: Accept payment type: T/T, Cash.30% deposit when signed contract. Full payment paid before shipping.4.How long is the product warranty period?Our warranty period is 1 year, excluding wearing parts.5.What's the after sale service of your company?We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.6. Can your company provide wearing parts?We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
