Szgh Vertical Machining Center Control CNC Milling Machine Vmc650 Full Guard 3-5 Axis CNC Milling Machinery

Product Description

Product Overview

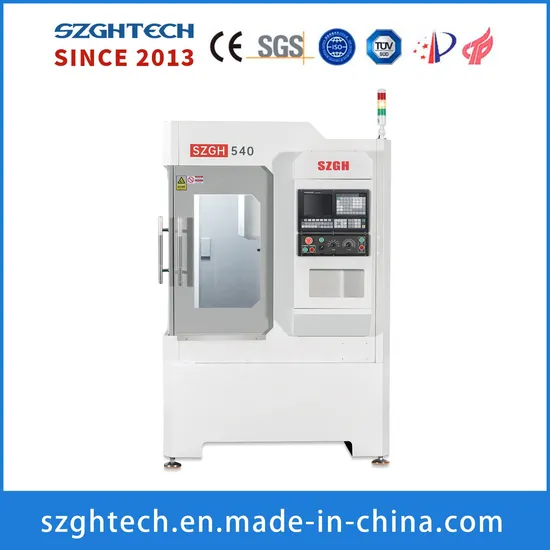

SZGH-540 CNC milling machine is suitable for 8-station processing of copper, iron, aluminum and stainless steel workpieces within 500mmX400mm. The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 8mm and drilling within 10mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improve per capita output efficiency and reduce processing costs.
Standard Configuration

Technical parameter item		Unit	Standard value	Max value
Processing capacity	Max. drilling diameter	mm	Aluminum φ14/ Steel φ10	Aluminum φ18/ Steel φ14
	Max. Tapping Diameter	mm	Aluminum m10/ Steel m8	Aluminum m12/ Steel m10
	Max. milling cutter diameter	mm	φ60	φ100
	Max Spindle speed	rpm	5000	Optional 9000/30000 electric spindle
	Handle Type	-	BT30
	Magazine capacity	-	Non knife	8 tool magazines are optional
	Repeatability	mm	0.01	0.01
	Surface engraving accuracy	mm	±0.06	optional ±0.01
workbench	Distance from table surface to spindle end	mm	Minimum 150 Maximum 350	-
	Effective stroke of working surface	mm	500*400	-
Travels	X-axis effective travel	mm	400	-
	Y-axis effective travel	mm	500	-
	Z-axis effective travel	mm	200	-
Feed	X-axis rapid traverse	m/min	25	35
	Y-axis rapid traverse	m/min	25	35
	Z-axis rapid traverse	m/min	20	25
	Various cutting suggested speeds	m/min	8	10
Spindle	Max.Spindle Speed	rpm	5000	Optional 9000/30000 electric spindle
	Spindle Motor Power	kW	2.6	Optional 3.9/4.5
	Spindle type	-	Mechanical spindle	Optional electric spindle
	Spindle taper	-	BT30	-
Dimensions	Dimensions	mm	1350*1050*2050	-
	Total Weight	kg	1900	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	25mm	Taiwan precision p grade	-
	Guide rail	25mm	Taiwan Precision C3 Grade	-
	Spindle	BT30	SZGH	SZGH
	CNC Control	-	SZGH	SZGH
	Feed servo	X.Y750&1.2kW	SZGH	SZGH
	Spindle servo motor	2.6kW	SZGH	SZGH
Machine specifications	Tool magazine	6/8 handle	SZGH	-
	Base form	1200kg	Heavy-duty anti-deformation patented base	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Product Features
Application
FAQ
1. Who are we? We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean, Italian, and so on.
6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
Yes, no problem.
