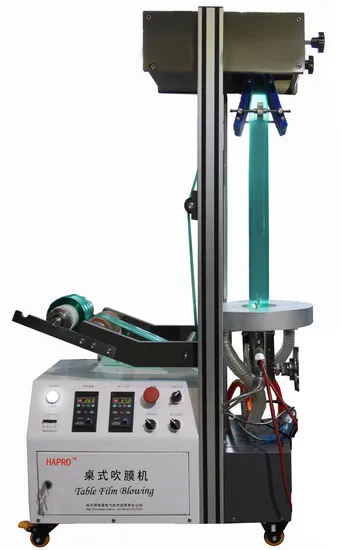

Portable Laboratory Thermoplastic Polymer Film Blowing Machine

Portable Laboratory Thermoplastic Polymer Film Blowing Machine

US$14,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FB-170
Certification
CE
Condition
New
Customized
Non-Customized
Automatic Grade
Automatic
Structure
Block Assembly
Film Fold Diameter
47~70mm
Film Thickness
0.02-0.3mm
Film Blowing Die
15 mm
Gap of Die Lip
0.3~1.0mm
Diameter of Traction Roller
70mm
Diameter of Crimp Roller
65mm
Transport Package
Plywood
Trademark
Hapro
Origin
China
HS Code
9024800000
Production Capacity
100/Year

Product Description

The forming principle of film blowing system is that material have been melt and quantitative extrusion by the film blowing die in the single screw extruder ,Then through ring cooling wind, blowing the herringbone plate, traction roller, coiling roller,Eventually made into film.
Desktop film blowing machine needs to be used together with the Desktop single screw extruder, which can save more materials and time in the laboratory
Correct mold eccentricity : the material added to the feed hopper, when the temperature of the districts all reach the set value when start the motor torque observation experiments at the same time, when the material flows from blown film die, observe the flow velocity in all directions, remember the position at fast speed, stop the motor, loosen screw mould upper end fixed die, adjusting the mold around four top silk, slightly loosen the first fast speed wire across the top, top tight again fast speed on the side of the top silk, after the completion of the adjustment, twist screws fixed die;
Photograph Performance Index Performance Parameter
Film blowing die Ф 15 mm
Power of Die Heating 0.7 kW
Gap of die lip 0.3~1.0mm
Film fold diameter 47~70mm
Film thickness 0.02-0.3mm
Diameter of traction roller 70 mm
Diameter of crimp roller 65 mm
Roller Speed 0-120 mm/s
Take off Gravity charge
Power supply voltage 3×380V,50/60 Hz ,+N +PE
Weight 100kg
Dimension (L×W×H) 700×400×1020 mm
