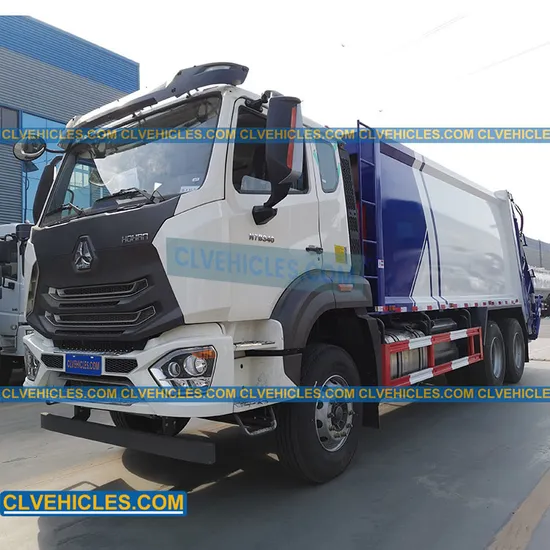

Sinotruk 20000L Waste Management Truck HOWO Garbage Collection Truck

Product Description

20000L Waste Management Truck HOWO Garbage Collection Truck 20CBM Waste Compactor Truck, also called Compressed Garbage Truck, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor.
How the Garbage Compactor Truck Works?
The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.
How much does a Garbage Truck hold?
Different types of garbage trucks that hold different amounts of waste. The truck that comes through your neighborhood can hold anywhere from 5 tons to 22 tons of waste.
The available chassis brands for Garbage Compactor Truck are ISU.ZU, SINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc.

Waste Compactor Truck Specification
General	Model	CLW5250YSLJCZZ20
	Chassis Brand	SINOTRUK
	Wheelbase	4300+1350
	Overall Dimension	Appro. 11000*2600*3800 (mm)
	Max Axles Payload	Appro. 39000 (kg)
	Truck Tare Weight (kg)	Appro. 15500 (kg)
	Garbage Container Capacity	Appro. 20CBM
	Drive Type	6x4, Right Hand Drive with power assisted steering
	Drive Speed	≥90Km/h
Cab	Type	One and a half row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
	No of Seats	2 persons and a sleeper bed, with safety belts
	Number of Doors	2
	Air Conditional	With air conditional
	Electric System	24V
	Audio System	FM/AM radio, CD/USB player
Engine	Brand	SINOTRUK
	Model	WD615.47
	Fuel Type	Diesel Fuel
	Emission Standard	Europe II
	Type	Water-cooled four-stroke, direct injection, turbocharged & intercooled, High pressure common rail fuel system, cold start.
	Nos of Cylinder	6
	Cylinders Arrangement	In-line
	Max Output Power	273 (kw)
	Exhaust	9726(ml)
	Max output power/rated speed	370/2200 (hp/rpm )
	Max torque/rotate speed	1500/1100-1600 (N.m/rpm)
	Compression Ratio	17:01
	Bore x Stroke	126*130mm
Fuel System	Fuel Tank Capacity	400Ltr
	Material	Steel fuel tank
	Filler Cap	Lockable
	Fuel Gauge	Pointer dial type
	Fuel Filter	With water separator device
Gear Box	Model	HW19710
	Type	Manual
	Forward Speeds	10
	Rear Speeds	2
	Max Input Torque	1900N.m
	Forward Speeds Ratios	14.284; 10.623; 7.871; 5.876; 4.375; 3.265; 2.428; 1.799; 1.343; 1
	Reverse Speeds Ratios	13.913; 3.18
	Oil Tank Capacity	12L
Clutch	Type	Single-plate dry diaphragm spring clutch
Bridge	NOs of Axle	3
	Front Alex	HF9 drum type
	Front axle load-bearing (kg)	9000
	Rear Alex	HC16
	Rear axle load-bearing (kg)	16000 * 2
Electric System	Voltage	24V
Braking System	Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake
Tire	Type	12.00R20
	Nos	Total 11 pieces, including one spare tire

Garbage Compactor Upper-Body Specification
Tank	Volume	20CBM
	Material	Carbon steel
	Thickness (side/bottom)	5mm/5mm
Dirty Tank Volume	200L
Filler Volume	600L
Filing Time(s)	8-10s
Filling Cycle Time (s)	50-60s
Discharge Type	Flat-pushing and Dumping
Dumping Time	30-40s
Hydraulic Pressure	16Mpa
Controlling Way	Manually and electrical control
Hydraulic Pump	Double pump

Garbage Compactor Truck is mainly used for municipal sanitation and large factories and mines to transport all kinds of garbage.
The garbage in the container will be compressed, crushed to make its density increased and the volume reduced, which greatly improves the efficiency of garbage collection and transportation.
The upper part of Garbage Compactor Truck is composed of a sealed garbage container, filling device, push shovel, hydraulic transmission
system and an electrical control system. The whole truck is fully closed, using electric-hydraulic integration technology.
The sewage in the process of compression all enters the dirty water collecting tank, which solves the problem of secondary pollution in the
rocess of garbage transportation.

Phoebe
Sales Department
CHENGLI SPECIAL AUTOMOBILE CO.,LTD.
Add: Chengli Automobile Industry Park, Suizhou, Hubei, China

AFTER-SALE SERVICE
Warrant special vehicles and equipment we supplied are manufactured with mature technology, nice workshop, under strict quality control . They are free from defects in workmanship and material . With correct use and normal maintenance , you will enjoy a happy service on your vehicles or equipment as below :
★ Function Life
The vehicles are expected to be functioning 10 (ten) years with availability of spare parts.

★ Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
During this period, if any failure, we will send replacement parts and components to customers by DHL, UPS, FEDEX free. Normal wear or fast consumables are excluded.

After this period, the parts can be provided at cost price.

This warranty does not cover damage due to improper use, accident or misuse or damage due to any unauthorized services.

If the goods are determined to be defective in materials or workmanship, we will, at ours option, repair or replace the goods.

★ Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

★ Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

★ Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
