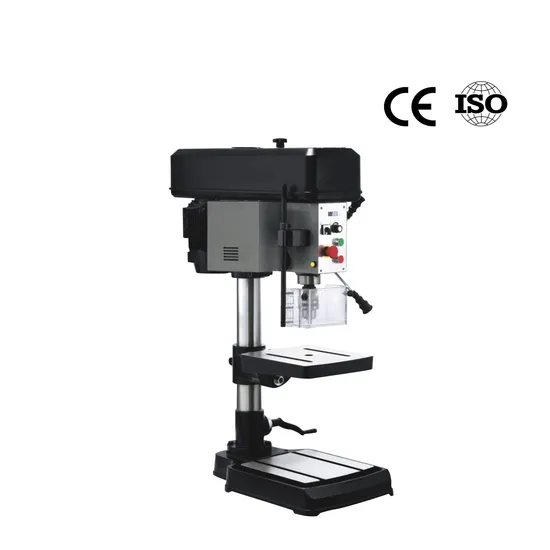

Zs2025b-Vs High Efficiency Senmo Bench Drilling Machine with and Thick and Strong Cast Iron.
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZS2025B-VS
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Chuck Capacity
B16 1~16mm
Column Diameter
85mm
Spindle Travel
135mm
Swing
510mm
Spindle Taper
Mt3
Overall Height
1100mm
Motor Power
1100W
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Drilling Machine |
| Vertical Drilling Machine |
| Feature |
| Construction by heavy solid cast iron. Surface treated by multi-process spray treatment. Variable speed with 2 steps, digital display in the panel. With mandatory reversal function. 6 pole motor. Better rigidity, good wearing quality, high precision, big power, excellent appearance. Adopt to the transformation and upgrade of products in modern times. Improve production efficiency. |
| Specifications | ZS2025B-VS |
| Max. drilling capacity | 25mm |
| Max. tapping capacity | M16 |
| Chuck capacity | B16 1~16mm |
| Column diameter | 85mm |
| Spindle travel | 135mm |
| Swing | 510mm |
| Max. distance spindle nose to table | 280mm |
| Max. distance spindle nose to base | 540mm |
| Spindle taper | MT3 |
| Spindle speed range | 0~2100rpm |
| Step of spindle speed | Variable |
| Table size | 338x300mm |
| Base size | 600x385mm |
| Overall height | 1100mm |
| Motor power | 1100w |
| Weight | 161kg |
| Packing size | 1595x710x485mm |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
