Household Submersible Pump, High Head Deep Well Pump, 220V 380V Agricultural Irrigation Pump All Stainless Steel Submersible Water Pump

Household Submersible Pump, High Head Deep Well Pump, 220V 380V Agricultural Irrigation Pump All Stainless Steel Submersible Water Pump

US$89.00-759.00 1 Piece (MOQ)

Basic Info.

Model NO.
JUSH
Max.Head
80-110m
Max.Capacity
50-100 L/min
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Assembly
Liquid Pumps
Power
Electric
Start Up
Electric Pump
Type
Blade Pump
Application
Submersible Pump, Clarified Water Pump, Sewage Pump, Slurry Pump, Oil Transfer Pump, Chemical Pump
Industry
Mechanical Pump
Media
Clean Water
Performance
No Leakage Pump
Theory
Centrifugal Pump
Product Name
All Stainless Steel Deep Well Pump
Package Size
127.00cm * 17.00cm * 17.00cm
Package Gross Weight
30.000kg
Single- Phase
220V -240V/50Hz
Three-Phase
380V 415V/50Hz
Transport Package
Carton Packing
Specification
According To Product
Trademark
JUSH
Origin
Shanghai, China
HS Code
8413709990
Production Capacity
5000PCS/Month

Packaging & Delivery

Package Size
120.00cm * 50.00cm * 50.00cm
Package Gross Weight
25.000kg

Product Description

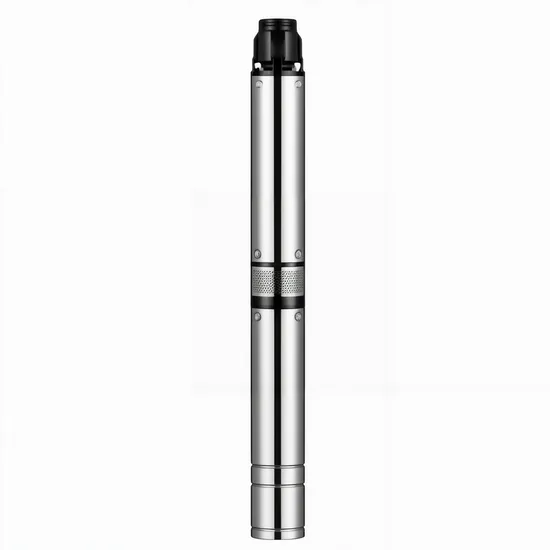

Product Description All stainless steel deep well water pump
Characters and Advantages:
-Stainless steel impeller, diffuser,outlet,connection.
-Water lubricated rubber bearing with sand channel
-High efficiency with built-in check valve to prevent back flow
-Unique laser welding creates maximum strength,durability wear and tear resistance.

Product Name All stainless steel deep well pump
Pump and Motor Flow range: 0.6m3/hour to 200m3/hour
Head range: 20m to 600m
AISI304 motor parts.
According to NEMA dimension standard.
Curve tolerance according to ISO 9906
Options on request Other voltages or frequency 60Hz
Special mechanical seal and bearing brand
Single phase motor with buit-in capacitor
Special automatic digital control box and cable length
Operating conditions Maximum fluid temperature up to +35 oC
Maximum sand content: 0.25%
Maximum immersion: 120m.
Maximum well diameter: 3", 4",5",6",8",10"
Applications For water supply from borehole wells.
For industrial applications and domestic and civil use.
For irrigation in salt influenced water environment.
Application Limits Max. ambient tempersture < 40ºC;
Sand content (in mass fraction) up to 0.01%;
Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
PH 6.5 to 8.5;
Maximum: 70m below the static water table.
Application Fields Building/construction work/domestic water supply;
Irrigation and small water work;
Landscaping;
Water conservancy system;
Factary.
Materials
Components Material
Pump external casing AISI304SS
Outlet AISI304SS
Connection AISI304SS
Diffuser AISI304SS
Impeller AISI304SS
Pump Shaft 1Cr13 AISI304SS
Shaft coupling 1Cr13 AISI304SS
Wear ring AISI304SS&Ceramic
Moter External Casing AISI 201 SS AISI304SS
Top chock Cast-iron ASTM NO.30 Cast-Cu ASTM C85500
Bottom support AISI 304SS
Mechanical Seal Graphite-Ceramic/TC Graphite-Silicon cabide
Motor Shaft AISI 303SS-ASTM 1045/ 5140
Bearing C&U Others
Seallubricant oil Oil for food manchinery and pharmaceutic use.
Technical Parameter
MODEL POWER Rated current Cap. Prot. DELIVERY n ≈2850 r/min
50HZ KW HP A uF/A Q m3/h
l/min
 0 0.6 1.2 1.8 2.4 3 3.6 4.2
0 10 20 30 40 50 60 70
4SP2-6 0.37 0.5 2.3 25/6 H(m)/
outlet(inch)
1 1/4''
 37 33 30 27 24 20 13 2
4SP2-9 0.37 0.5 2.3 25/6 56 50 45 41 36 30 19 4
4SP2-13 0.55 0.75 3.6 30/7 81 72 65 59 52 43 27 5
4SP2-18 0.75 1 5.2 40/9 112 99 90 81 72 59 38 7
4SP2-23 1.1 1.5 7.4 50/12 143 127 115 104 92 76 48 9
4SP2-28 1.3 1.8 8.6 55/15 174 154 140 126 112 92 59 11
4SP2-33 1.5 2 10 60/18 205 182 165 149 132 109 69 13
4SP2-40 1.8 2.5 13.5 65/20 248 220 198 180 160 132 84 16
4SP2-48 2.2 3 14.9 75/22 298 264 240 216 192 158 101 19
4SP2-55 3 4 19.5 100/30 336 303 275 248 220 182 116 22
4SP2-75 4 5.5 7.5 465 414 375 339 300 248 158 29
4SP2-110 5.5 7.5 11.6 682 607 549 497 440 364 232 43

MODEL POWER Rated current Cap. Prot. DELIVERY n ≈2850 r/min
50HZ KW HP A uF/A Q m3/h
l/min
 0 1.2 2.4 3 3.6 4.2 4.8 6
0 20 40 50 60 70 80 100
4SP3-6 0.37 0.5 2.3 25/6 H(m)/
outlet(inch)
1 1/4''
 37 33 29 26 23 19 13 4
4SP3-9 0.55 0.75 3.6 30/7 56 50 43 40 35 28 19 7
4SP3-12 0.75 1 5.2 40/9 74 66 58 53 46 37 26 9
4SP3-15 0.9 1.2 6.5 45/10 93 83 72 66 57 47 32 11
4SP3-18 1.1 1.5 7.4 50/12 112 99 86 79 69 56 39 13
4SP3-22 1.3 1.8 8.6 55/15 136 121 106 97 84 68 47 16
4SP3-25 1.5 2 10 60/18 155 138 120 110 96 78 54 18
4SP3-32 2.2 3 14.9 75/22 198 176 154 141 123 99 68 23
4SP3-39 3 4 19.5 100/30 242 215 170 172 149 121 83 29
4SP3-44 3 4 19.5 100/30 272 242 211 194 169 136 94 32
4SP3-58 4 5.5 7.5 359 321 279 255 222 180 124 42
4SP3-80 5.5 7.5 11.6 495 441 384 352 307 249 171 58
4SP3-110 7.5 10 17.8 681 606 528 484 422 342 236 80

MODEL POWER Rated current Cap. Prot. DELIVERY n ≈2850 r/min
50HZ KW HP A uF/A Q m3/h
l/min
 0 2.4 3.6 4.8 5.4 6 6.6
0 40 60 80 90 100 110
4SP5-4 0.37 0.5 2.3 25/6 H(m)/
outlet(inch)
1 1/2''
 25 21 20 17 15 12 8
4SP5-6 0.55 0.75 3.6 30/7 38 32 30 26 23 18 13
4SP5-8 0.75 1 5.2 40/9 50 43 40 34 30 24 17
4SP5-12 1.1 1.5 7.4 50/12 76 64 60 52 46 37 25
4SP5-17 1.5 2 10 60/18 107 90 84 73 65 52 36
4SP5-22 2.2 3 14.9 75/22 139 117 109 95 84 67 46
4SP5-25 2.2 3 14.9 75/22 158 133 124 108 95 76 53
4SP5-33 3 4 19.5 100/30 208 176 164 142 125 101 69
4SP5-38 4 5.5 7.5 239 202 188 163 144 116 80
4SP5-40 4 5.5 7.5 252 213 198 172 152 122 84
4SP5-44 4 5.5 7.5 277 234 218 189 167 134 92
4SP5/52 5.5 7.5 11.6 328 277 258 224 198 159 109
4SP5-75 7.5 10 17.8 473 399 372 323 285 229 158
4SP5-92 9.2 12.5 19.8 580 490 457 396 350 281 193

MODEL POWER Rated current Cap. Prot. DELIVERY n ≈2850 r/min
50HZ KW HP A uF/A Q m3/h
l/min
 0 3.6 4.8 6.6 8.4 10.2 12
0 60 80 110 140 170 200
4SP8-5 0.75 1 5.2 40/9 H(m)/
outlet(inch)
2''
 31 28 27 25 22 17 10
4SP8-7 1.1 1.5 7.4 50/12 43 39 37 34 30 23 13
4SP8-10 1.5 2 10 60/18 62 56 53 49 43 33 19
4SP8-12 1.8 3 13.5 65/20 74 67 64 59 52 40 23
4SP8-14 2.2 3 14.9 75/22 87 78 74 69 60 46 27
4SP8-18 3 4 19.5 100/30 112 101 95 88 77 59 34
4SP8-21 4 5.5 7.5 130 118 111 103 90 69 40
4SP8-24 4 5.5 7.5 149 134 127 118 103 79 46
4SP8-30 5.5 7.5 11.6 186 168 159 147 129 99 57
4SP8-35 5.5 7.5 11.6 217 196 186 171 151 116 67
4SP8-40 7.5 10 17.8 248 224 212 196 172 132 76
4SP8-44 7.5 10 17.8 273 246 233 216 189 145 84
4SP8-58 9.2 12.5 19.8 359 324 308 285 250 192 111

MODEL POWER Rated current Cap. Prot. DELIVERY n ≈2850 r/min
50HZ KW HP A uF/A Q m3/h
l/min
 0 3 6 9 12 15 18 21
0 50 100 150 200 250 300 350
4SP14-5 1.5 2 10 60/18 H(m)/
outlet(inch)
2''
 34 32 30 28 25 20 14 4
4SP14-7 2.2 3 14.9 75/22 48 44 42 39 34 28 19 6
4SP14-10 3 4 19.5 100/30 68 63 60 55 49 40 27 8
4SP14-13 4 5.5 7.5 88 82 77 72 64 51 35 11
4SP14-15 5.5 7.5 11.6 102 95 89 83 74 59 41 13
4SP14-18 5.5 7.5 11.6 122 114 107 99 88 71 49 15
4SP14-21 7.5 10 17.8 143 133 125 116 103 83 57 17
4SP14-25 7.5 10 17.8 170 158 149 138 123 99 68 21
4SP14-30 9.2 12.5 19.8 204 190 179 166 148 119 82 25

Company Profile
FAQ
Q1: Are you a factory or a trading company?
A: We are manufacturer.
Q2: What are your payment terms?
A: 30% T/T in advance, balance should be paid after receiving BL copy or LC at sight.
Q3: Can you do OEM?
A: Yes,we can. Any OEM are welcome!
Q4: How about the MOQ?
A: Usually, it is 50-100 PCS for each modelBut sample order is highly welcome.
Q5:How about the delivery time?
A: 15-30 days after receiving customersdeposit.
Q6: How long is your warranty?
A: 1 year.
Q7:What can we do in one-year warranty?
A: 1.Providing Spare parts; 2.Engineer is available to service

For more details.pls send us your details need.
we will feedback ASAP.
