Vertical CNC Milling Machine Xk7136 Vmc Processing Small Round Metal Rod

Vertical CNC Milling Machine Xk7136 Vmc Processing Small Round Metal Rod

US$18,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TVK736
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.008mm
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Weight
2400kg
Table Size
1250X360mm
X/Y/Z Axis Travel
900X360X460mm
Spindle Taper
Bt40
Main Motor
5.5kw
Control System
GSK, Fanuc, Siemens, Mitsubishi, Knd, Hnc
Voltage
220V/380V/400V/415V
Color
Custom-Made
Transport Package
Pallet/Wooden Case
Specification
2220*1900*2350mm
Trademark
TSINFA
Origin
Shandong, China
HS Code
8459619000
Production Capacity
300/One Year

Packaging & Delivery

Package Size
222.00cm * 190.00cm * 235.00cm
Package Gross Weight
2400.000kg

Product Description

Product Description

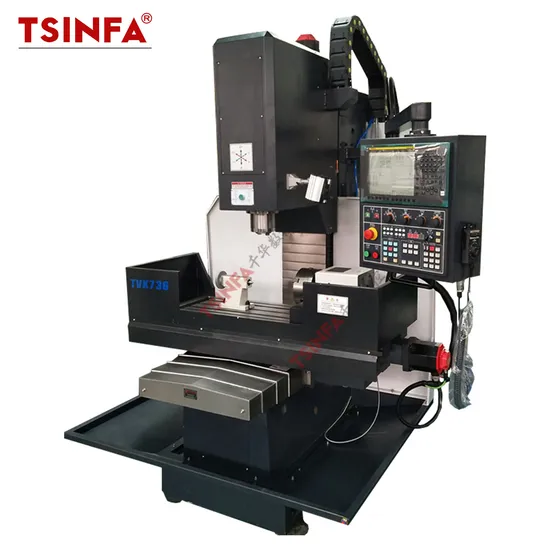

TVK736 CNC VERTICAL MILLING MACHINE
TVK736 machine tool is a CNC bed milling machine with strong bearing capacity. The three-way guide rails are hardened hard rails with wide guide rails, large span, compact and reasonable structure and overall dimensions. The spindle is driven by frequency conversion or servo motor through synchronous belt. It can be used for milling, drilling, reaming and other functions. It can realize the processing of complex and high-precision parts such as discs, plates, shells and moulds. It is suitable for the processing of plane, bevel, groove, hole and other processes of various kinds of small and medium-sized parts. It is an ideal processing equipment for machinery, electronics, instruments, meters, moulds, automobiles and other industries.
This machine has passed the EU CE certification. Export standards and guaranteed quality.

1. The main components such as base, column, worktable, middle sliding seat and lifting sliding seat are all cast with high-strength materials, and are artificially aged to ensure the stability of the machine tool in long-term use and guarantee the stability of the machine tool performance.
2. Adopt high-speed, high-precision, high rigid main shaft, strong bearing capacity.
3. The X, y and Z direction guide rails of the worktable are sliding guide rails, which are quenched by super audio frequency and precisely ground. The sliding guide surface is precisely scraped and grinded, and coated with composite PTFE material, with automatic forced lubrication, to reduce the friction resistance of feed movement, reduce low-speed crawling, and improve the precision life of the machine tool.
4. Z direction is to increase the holding brake servo motor to ensure the stable and smooth lifting movement of the main shaft.
5. The operating system of the machine tool is hung on the right upper part of the machine tool through the arm, which conforms to the principle of ergonomics. The operating box can rotate at a certain angle, and the operation is convenient and reliable.
6. The X, Y, Z three-way feed adopts high-precision, high-strength ball screw, driven by servo motor, to ensure the positioning accuracy of the machine tool.
7. The guide rail and ball screw adopt protective device to ensure the cleanness of the guide rail and screw, and ensure the transmission and operation accuracy of the machine tool.
8. The electric lubrication device can force lubrication for the vertical, horizontal and vertical lead screws and guide rails, reduce the wear of the machine tool, and ensure the efficient operation of the machine tool; at the same time, the cooling system can change the size of the coolant flow by adjusting the nozzle to meet different processing needs.
Product Parameters
Specification Unit TVK720 TVK724 TVK726 TVK736
Table size mm 600*200 800*240 800*260 1250*360
Max. table load kg 100 300 350 400
X/Y/Z table travel mm 300*180*270 450*280*450 500*300*450 900*360*460
Numbers, width mm 3*12 3*14 3*14 3*18
Spindle nose to table surface mm 45-315 100-500 100-500 130-590
Spindle center to Column surface mm 255 330 350 460
Spindle taper R8 BT30 BT40 BT40
Spindle speed r.p.m 3000 6000 6000 (optional:8000) 6000
Main motor kw 1.1 3.7 3.7 5.5
Table rapid feed speed m/min 3*3*3 6*6*6 12*12*18 10*10*6
Cutting feed speed mm 3000 5000 5000 6000
Three axis servo motor torque NM 4/4/6 6/6/10 6/6/10 7/7/10
Positioning accuracy mm ±0.02 ±0.015 ±0.01 ±0.01
Repeat position accuracy mm ±0.01 ±0.01 ±0.008 ±0.008
Net weight kg 485 1200 1900 2800
Overall dimension(L×W×H) mm 1400*1000*1800 1800*1650*2200 2000*1800*2250 2200*1900*2350

Specification Unit VMC 640 VMC 650
Table size mm 800*320 800*400
Max. table load kg 350 400
X/Y/Z table travel mm 600*400*450 650*400*500
Numbers,width mm 3*14 3*16
Spindle nose to table surface mm 130-570 130-600
Spindle center to Column surface mm 400 470
Spindle taper BT40 BT40
Spindle speed r.p.m 6000 (optional:8000) 8000
Main motor kw 3.7 5.5
Table rapid feed speed m/min 18/18/18 24/24/20
Cutting feed speed mm 10000 10000
Three axis servo motor torque NM 6/6/10 6/6/10
Positioning accuracy mm ±0.006 ±0.006
Repeat position accuracy mm ±0.005 ±0.005
Net weight kg 2500 3000
Overall dimension(L×W×H) mm 2200*1900*2500 2200*1900*2500

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specifications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:
1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.
