Large Core Diameter Laser Energy Transfer Quartz Square Core Optical Fiber

Product Description

Square Core Fiber (SCF)
1. Introduction
Our square core fiber is a kind of large core diameter laser energy transfer fiber with special structure, which is mainly used in the fields of laser high power transmission, homogenization, imaging, spectroscopy and so on. Its structure includes square high purity synthetic quartz core, fluorine doped quartz cladding and coating. The typical NA values of core and cladding are 0.12 and 0.22. Square core fiber can significantly improve the coupling efficiency with semiconductor laser, has excellent spot homogenization effect and shaping function, as well as a strong advantage in the field of laser cleaning and laser beam shaping.

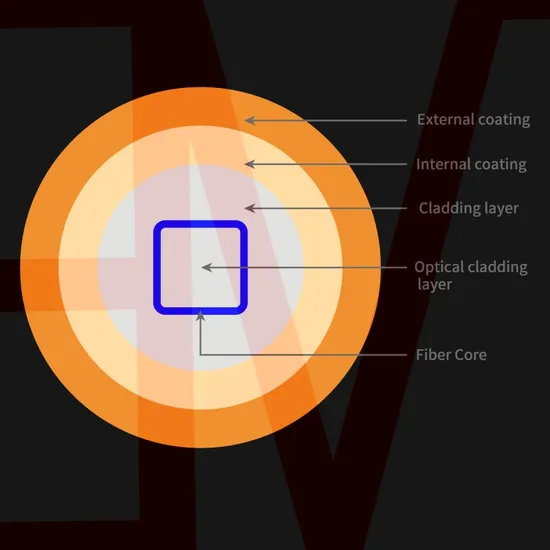

2. Fiber Geometry

3. Technical parameters

Features	Unit	Product Indicator
Fiber name	/	SCF100-12-500L	SCF200-12-400L	SCF400-12-740L	SCF100-22-500L	SCF200-22-400L	SCF400-22-740L
Optical properties
Numerical aperture	/	0.12±0.02	0.12±0.02	0.12±0.02	0.22±0.02	0.22±0.02	0.22±0.02
Attenuation @1064nm	dB/km	≤17.0	≤17.0	≤17.0	≤17.0	≤17.0	≤17.0
Optic fiber refractive index structure	/
Geometric properties
Side length of core	μm	100.0±5.0	200.0±6.0	400.0±8.0	100.0±5.0	200.0±6.0	400.0±8.0
Outer cladding diameter	μm	500.0±10.0	400.0±10.0	740.0±10.0	500.0±10.0	400.0±10.0	740.0±10.0
Coating diameter	μm	630.0±10.0	540.0±10.0	910.0±10.0	630.0±10.0	540.0±10.0	910.0±10.0
Core materia	/	Pure quartz
Inner coating material	/	Low refractive index coating
Outer coating material	/	Acrylic resin
Mechanical properties
Tension screening	kpsi	100

4. Advantages
Good geometric uniformity, high performance step multi-mode fiber
High damage threshold
Uniform distribution of mode field strength

5. Application
Laser beam combination module
Laser coupling
Laser cutting
Surface cladding

6. Customization Information
We provide customized service for square, rectangular or polygon core, and the core size, outer diameter size & numerical aperture can be especially customized.
