BHD1207A/3 FINCM CNC Hydraulic H Beam Hole Drilling Machine For Steel Structure

Product Description

Product Description

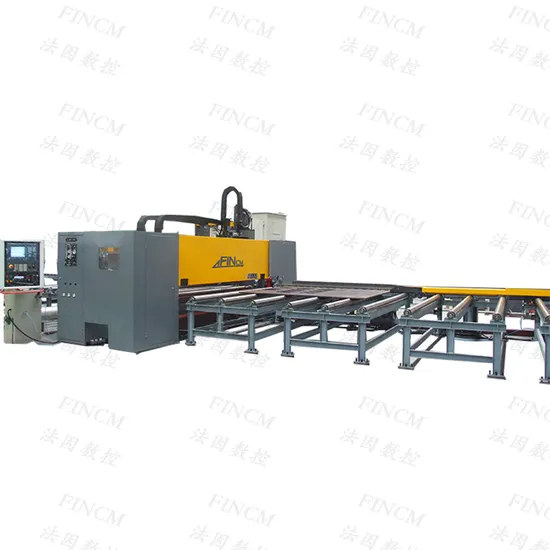

BHD1207A/3 FINCM Steel Structure H Beam CNC Drilling Machine
BHD1207A/3 CNC high speed drilling machine for H-beams.and channel-beam steel.The drilling machine is mainly composed of several main parts such as a bed, a CNC sliding table (3), a drilling headstock (3), a clamping device, a detection device, a cooling system, and an iron filing box.
Machine advantages:
1. The bed is welded by square steel pipes. The structure of the bed is strengthened in the place where the force is large, and the artificial aging treatment is carried out, which well guarantees the stability of the bed and the entire machine tool. Accuracy.
2. There are 3 numerical control sliding tables, and 6 numerical control axes on the three sliding tables. Each numerical control axis is guided by a precision linear rolling guide to ensure its positioning accuracy.
3. There are 3 drilling spindle boxes, which can be drilled individually or at the same time.
4. The main shaft adopts a precision main shaft, which has high rotation accuracy and good rigidity; it is driven by a variable-frequency speed-regulating motor, which has a wide range of applications. The speed can be continuously variable in a large range to meet various speed requirements.
5. The work piece is fixed by hydraulic clamping.
6. This machine is equipped with workpiece width detection and web height detection devices, which can effectively compensate the deformation of the workpiece and ensure the processing accuracy.
7. The machine tool adopts trolley feeding, which overcomes the influence of the deformation and surface quality of the workpiece itself, and the feeding accuracy is higher and more stable.
8. Cooling system: It adopts aerosol cooling, which has the functions of internal cooling and external cooling. Each drilling headstock is equipped with its own external cooling nozzle and internal cooling joint, which can be selected according to the drilling needs, internal cooling and external cooling. Cold can be used alone or at the same time.
9. Chip collection box: It is guided by universal casters, which is simple and convenient to carry.
10. Electrical system: PLC and servo drive are connected by bus, which has strong anti-interference ability and faster signal processing, which greatly shortens the system response time and improves production efficiency. Detailed Photos
Product Parameters

H-beam	Section height	150~1250mm
	Flange width	75~700mm
U-shaped steel	Section height	150~1250mm
	Flange width	75~350mm
Maximum thickness of workpiece		80mm
Drilling power box	Quantity	3
	Maximum borehole diameter	Left,Right¢ 40mm Upl¢ 50mm
	Spindle taper hole	BT40
	Spindle motor power	Left,Right 15KW Up 18.5KW
	Spindle speed (stepless speed regulation)	20~2000r/min
CNC axis	Quantity	7
	Servo motor power of fixed side, moving side and middle side feed shaft	3×2kW
	Fixed side, moving side, middle side, moving side positioning axis servo motor power	3×1.5kW
	Moving speed of three positioning CNC axes	0~10m/min
	Moving speed of three feed CNC axes	0~5m/min
	Width detection stroke	1100mm
	Web detection stroke	340mm
Feeding trolley	Power of servo motor of feeding trolley	5kW
	Maximum feeding speed	20m/min
	Maximum feeding weight	15t
Cooling system	Compressed air pressure required	0.8Mpa
	Number of nozzles	3
	Cooling mode	Internal cooling + external cooling
Accuracy	Error of adjacent hole spacing in hole group	±0.4mm
	Accuracy error of 10m feeding	±1.0

List of the Key Outsourced Components:

No.	Name	Brand	Country
1	principal axis	Keturn	Taiwan, China
2	Linear rolling guide pair	HIWIN/CSK	Taiwan, China
3	Hydraulic pump	JUSTMARK	Taiwan, China
4	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy / Japan
5	servo motor	Siemens / MITSUBISHI	Germany / Japan
6	Servo driver	Siemens / MITSUBISHI	Germany / Japan
7	Programmable controller	Siemens / MITSUBISHI	Germany / Japan
8	computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
