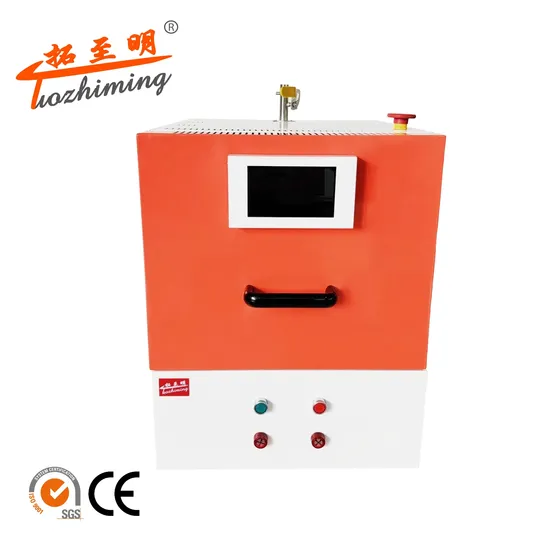

Silicon Carbide Ultra Clean Muffle Furnace Mf-710s
| US$8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MF-710S
Application
Lab
Customized
Customized
Certification
CE, ISO
Structure
Desktop
Material
Silicon Carbide
Type
Muffle Furnace
Temperature Control Range
1000degrees
Temperature Rising Time
60mins
Temperature Control Mode
Pid
Exterior Material
Cold-Rolled Steel Sheet, Anti-Corrosion Spraying
Furnace Material
Silicon Carbide
Furnace Sizes
200*300*120mm
Inside Volume
7L
Dimensions
560*650*680mm
Power
5kw
Voltage
220V
Transport Package
Wooden Case
Trademark
TZM
Origin
China
HS Code
8419899090
Packaging & Delivery
Package Size
86.00cm * 68.00cm * 99.00cm
Package Gross Weight
112.000kg
Product Description
Product Introduction Precisely controlled sintering, melting, elemental analysis, physical determination.Product Features No pollution
High-purity silicon carbide furnace, corrosion resistance, high temperature resistance, easy to clean, no slag, long service life.
Intelligent cooling
Intelligently and actively start the cooling design to ensure that the temperature of the housing surface is not too high.
Uniform temperature
The furnace is designed to be heated on five sides to ensure uniform temperature in the furnace.
Safety
Concealed furnace wire design, no need to cut off the power to open the door for taking and placing samples, avoiding the danger of electric shock.
Intelligent control
Unique touch screen design, using PID to adjust and control temperature.
Product Parameters
| MF Series | Touch screen type | MF-710S | MF-1610S | MF-2410S | MF-3610S |
| Performance | Temperature control range(°C) | ≤1000 | |||
| Temperature control accuracy(°C) | ±1 | ||||
| Temperature resolution(°C) | 1 | ||||
| Temperature rising time(min) | 60±5 | ||||
| Structure | Exterior material | Cold-rolled steel sheet , Anti-corrosion spraying | |||
| Furnace material | Silicon carbide | ||||
| Furnace sizes(L*W*H mm) | 200*300*120 | 250*400*160 | 300*400*200 | 300*400*300 | |
| Heater material | Nichrome wire | ||||
| Heater power(KW) | 5 | 8 | 12 | 16 | |
| Controller | Temperature controller | Touch screen | |||
| Temperature control mode | PID | ||||
| Timing | 0--999 hours | ||||
| Run function | Constant value operation , Program operation | ||||
| Sensor | Type K | ||||
| Accessory function | Door control function(optional) , Remote control(optional) | ||||
| Safety device | Overcurrent leakage protection switch | ||||
| Specification | Dimensions(W*D*H mm) | 560*650*680 | 610*780*690 | 650*780*750 | 650*780*880 |
| Inside volume(L) | 7 | 16 | 24 | 36 | |
| Voltage | AC220V 50Hz | AC380V 50Hz | |||
