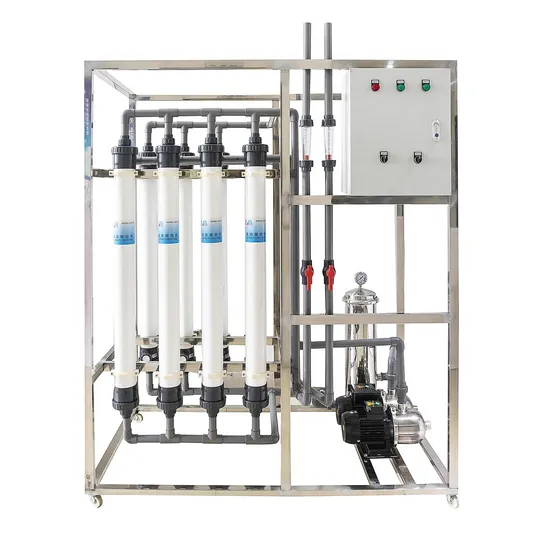

High-Efficiency UF Ultrafiltration System for Pure Water Solutions

Product Description

Product Description
Products Description
Working Process:
raw water → Raw water pump → Mechanical filters → Activated carbon filter → Precision filters → UF booster pump → UF ultrafiltration membrane element → Finished water
1. Raw water: Sourced from groundwater, sea water, lake water, industrial water, mountain water, or municipal water supply, providing a versatile input for diverse environments.
2. Raw water pump: Ensures stable and sufficient inlet pressure, playing a crucial role in boosting pressure for optimal system performance.
3. Mechanical filter: Expertly adsorbs residual chlorine not removed during pre-filtration, along with small molecules and other impurities for enhanced water purity.
organic matter leaked from the pre-stage and other polluting substances. Delivers significant adsorption and removal effects for water odor, colloids, pigments, heavy metal ions, and reduces COD, ensuring cleaner water output.
4. Precision filter: Guarantees the accuracy and safety of the post-stage membrane module's effluent, securing high-quality water purification.
5. High-pressure pump: Equipped with frequency conversion control, offering robust power, stable transmission, and consistent pressure for reliable water supply supporting the RO system.
Stable transmission and constant pressure water supply, providing essential support for the stable water output of the subsequent RO system.
6. RO membrane: Effectively removes dissolved salts, colloids, microorganisms, and organic matter, ensuring high purity and clarity in the treated water.
Catering to various applications, our customizable system can be tailored with FRP or stainless steel tank filter systems, optionally equipped with pre-filters to meet your specific requirements.
Our Advantages
Detailed Photos
Working Principle
Product Parameters

Parameters	HYHJ-UF-3T	HYHJ-UF-4T	HYHJ-UF-5T
Machine Size(L*W*H)	3100mm/900mm/1850mm	3100mm/900mm/1850mm	3800mm/900mm/1950mm
Control mode	Fully automatic operation	Fully automatic operation	Fully automatic operation
Device power	AC/380V/50HZ	AC/380V/50HZ	AC/380V/50HZ
Raw water pump	Q=5m³/H H=30m	Q=6m³/H H=30m	Q=8m³/H H=30m
UF booster pump	Q=5m³/H H=30m	Q=6m³/H H=30m	Q=8m³/H H=30m
Quartz sand filter	φ500×1700mm	φ500×1900mm	φ600×1900mm
Activated carbon filter	φ500×1700mm	φ500×1900mm	φ600×1900mm
Precision filters	5 cores 40 inches	7 cores 40 inches	7 cores 40 inches
Precision filter element	40''5μm	40''5μm	40''5μm
Backwash manifold	Solenoid manifold	Solenoid manifold	Solenoid manifold
Ultrafiltration membrane model	Hollow fiber + PVDF	Hollow fiber + PVDF	Hollow fiber + PVDF
