Engineering Energy Saving Highlights 4000K 1200mm G5 T5/T6 LED Light Tube

Product Description

Product Presentation

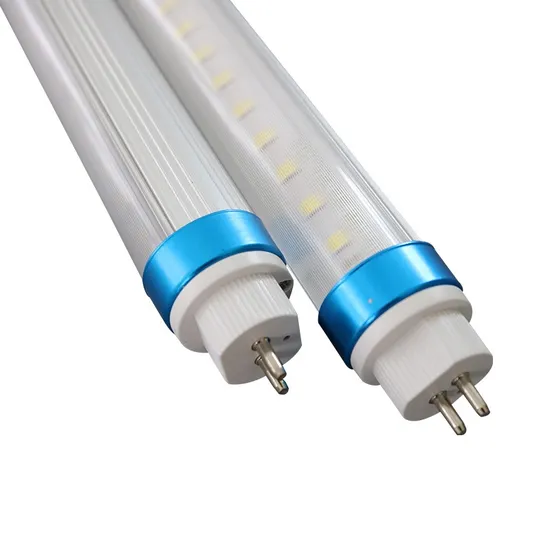

T6 LED Tube are designed to replace traditional linear fluorescent light. They are frequently used to update and convert offices or warehouse spaces to more energy efficient lighting systems.
1. Long lifespan, at least more than 10 years.2. High quality SMD2835 LED chipset. 3. Solid state, high shock/vibration resistant.4. Universal Constant Current Voltage 85-265VAC, 50/60Hz. 5. Power factor is >0.9. 6. Temperature of Working Condition: -20ºC+45ºC, perfect for extreme climates.7. Quick and easy installation to minimize retrofit cost. 8. No mercury and other hazardous materials, fully RoHS compliant.9. High cost-effective.10. Completely insulated electrical design for maximum safety.

Size	1162*23MM
Power	18W
Lumens	120LM/W
Input Voltage	AC85-265V 50-60HZ
CCT	3000K 4000K 5000K 6000K
CRI(Ra)	80
PF	0.9
Life Time	50000H
IP rate	20
Beam angle	180

Optional models can be selected

Specification Size(mm)	Φ23*562	Φ23*862	Φ23*1162	Φ23*1462
Power	9W	12W	18W	22W
Input Voltage	AC85-265V
CCT	3000-6500K
Lumen	120-180LM/W
Power Factor	0.9
CRI	80
Humility	20%-80%RH
LED Qty (SMD2835)/PCS	72	96	120	144
Packing Size(cm)	54.5*16*16.5	84.5*16*16.5	119.5*16*16.5	149.5*16*16.5

Product Details

Size

Size	A(mm)	B(mm)	C(mm)
2FT/600mm	548mm	562mm	23mm
3FT/900mm	848mm	862mm	23mm
4FT/1200mm	1148mm	1162mm	23mm
5FT/1500mm	1448mm	1462mm	23mm

Installation

Packing

Engineering Transformation Case

FOR UNDERGROUND GARAGE, AISLES, SUPERMARKETS, SCHOOLS, WORKSHOPS AND OTHER LIGHTING PLACES
Company ProfileFounded : 2009
Registered: Hong Kong and Shenzhen in 2010. Create the brand "ORM" in 2012. 13 years of design research and development experience. The benefits of the development of LED lighting technology and standardized production are to personalized stylish, efficient, energy-saving, heathy and environmentally friendly lighting and provide excellent service to lead the industry in the future. Main Products: LED Tube Light, LED Panel Lights. High Bay Light, Led Grow Light .
Customized services: product customization, OEM, ODM
Certificates: UL, ETL. CE. RoHS, SAA
Trade Capacity
International Commercial: FOB, EXW, CIF
Terms(Incoterms):
Terms of Payment: T/T, Paypal
Average Leas Time: Peak Season Lead Time: one month,Off Season Lead Time: within 15 workdays
Number of Foregin Trading Staff: Above 20 People
Export Year: 2012-6-18
Export Percentage: 70%-80%
Main Markets: South America, Europe, Australia, Asia
Nearest Port: Shenzhen, Guangzhou
Import & Export Mode: Have Own Export License
Product CapacityFactory Address: Second Floor, Building B, Hengfeng Science and Technology Park, No. 2 Xinfeng Street, Changlong Community, Huangjiang Town, Dongguan City
R&D Capacity: OEM,ODM, Own Brand(ORM Lighting)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Ever Annual Output of Main Products:

Product Name	Units Produced(Previous Year)
LED Tube Light	6400000 PCS
LED Panel Light	270000 PCS
High Bay Light	530000 PCS
LED Smart Light	810000 PCS

Company Show

Factory Show

Certificates

Product Show Room

Packaging & Shipping
